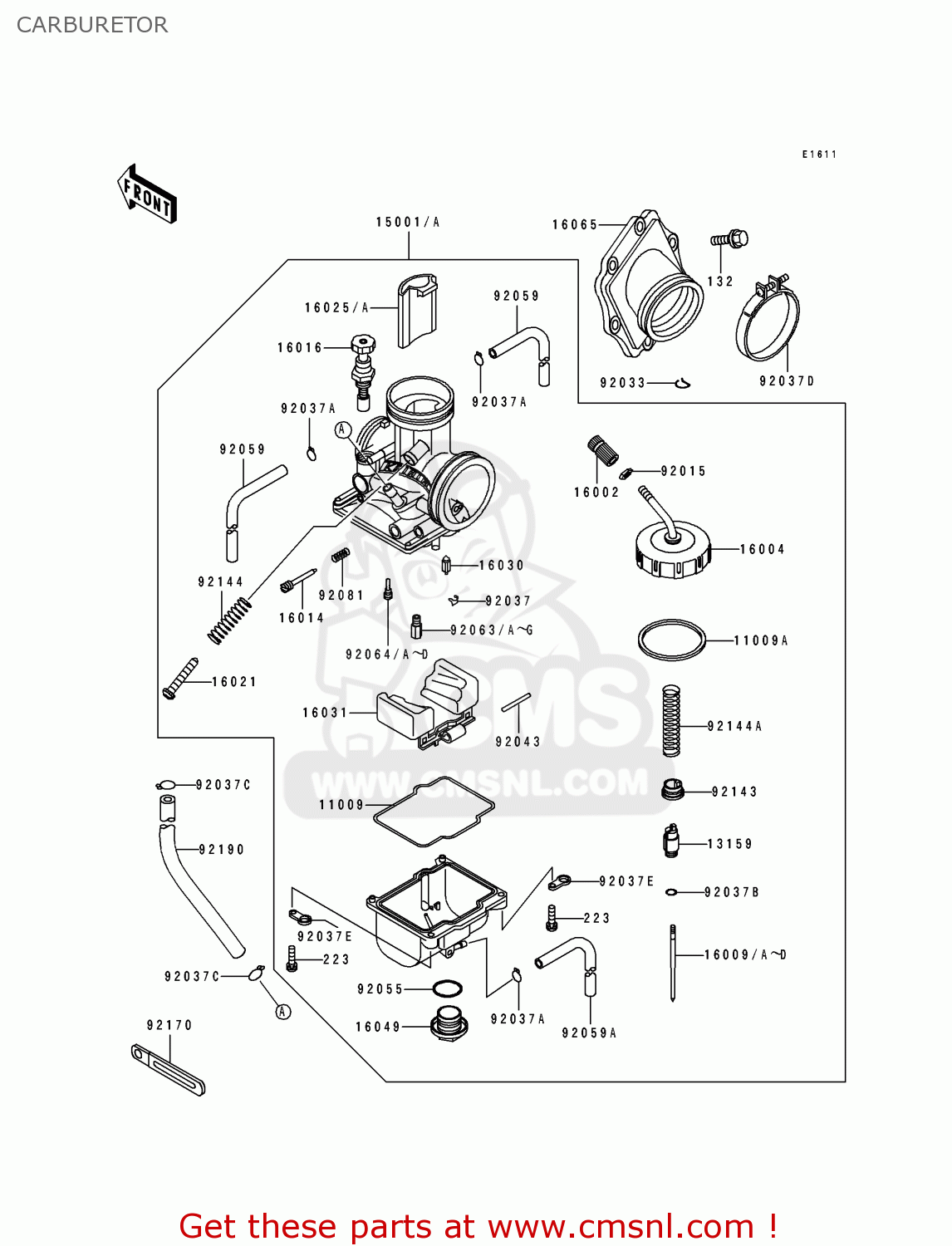

CARBURETOR

ref

part #

description

quantity

11009

110091716
ref: 11009

GASKET,FLOAT CHAMBER (NAS)

€ 10.00

11009A

110091717
ref: 11009A

GASKET,CHAMBER CAP (NAS)

€ 8.00

13159

131591063
ref: 13159

CONNECTOR,THROTTLE CA

€ 13.50

15001A

150011564
ref: 15001A

CARBURETOR-ASSY

€ 367.50

16002

160021057
ref: 16002

ADJUSTER-CABLE

€ 13.00

16004

160041070
ref: 16004

CAP-CHAMBER

€ 50.50

16009

160091440
ref: 16009

NEEDLE-JET,R1170N

€ 20.00

16009A

160091441
ref: 16009A

NEEDLE-JET,R1171N

€ 19.50

16009B

160091523
ref: 16009B

NEEDLE-JET,R1172N

€ 18.00

16009C

160091524
ref: 16009C

NEEDLE-JET,R1173N

€ 19.00

16009D

160091525
ref: 16009D

NEEDLE-JET,R1174N

€ 20.00

16014

160141058
ref: 16014

SCREW-PILOT AIR

€ 14.00

16016

160161075
ref: 16016

PLUNGER,STARTER

€ 29.00

16021

160211124
ref: 16021

SCREW-THROTTLE STOP

€ 16.00

16025A

160251164
ref: 16025A

VALVE-THROTTLE,CA6

€ 105.00

16030

160301057
ref: 16030

VALVE-FLOAT

€ 37.00

16031

160311067
ref: 16031

FLOAT

€ 43.00

16049

160491051
ref: 16049

COVER-MAIN JET

€ 23.50

16065

160651181
ref: 16065

HOLDER-CARBURETOR

€ 52.50

92015

920151772
ref: 92015

NUT,CABLE ADJUST LOCK

€ 3.00

92033

92036018
ref: 92033

CIRCLIP

€ 2.50

92037

16044007
ref: 92037

CLIP, FLOAT VALVE

€ 4.00

92037A

920371396
ref: 92037A

CLAMP,TUBE

€ 3.50

92037B

920371401
ref: 92037B

CLAMP,JET NEEDLE

€ 2.50

92037C

92037147
ref: 92037C

CLAMP,CHAIN OILER

€ 4.50

92037D

920371843
ref: 92037D

CLAMP

€ 5.50

92037E

920371969
ref: 92037E

CLAMP,HOSE

€ 5.00

92043

920431207
ref: 92043

PIN,FLOAT

€ 6.00

92055

920551167
ref: 92055

RING-O,MAIN JET COVER

€ 6.50

92059

920591896
ref: 92059

TUBE,4X7X420

€ 12.50

92059A

920591897
ref: 92059A

TUBE,3.5X6.5X330

€ 7.50

92063

920631362
ref: 92063

JET-MAIN,#145

€ 9.50

92063A

920631363
ref: 92063A

JET-MAIN,#148

€ 9.50

132

132G0620
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

223

223C0416
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

92063B

920631364
ref: 92063B

JET-MAIN,#150

€ 9.50

92063C

920631365
ref: 92063C

JET-MAIN,#152

€ 11.00

92063D

920631366
ref: 92063D

JET-MAIN,#155

€ 10.00

92064

920641130
ref: 92064

JET-PILOT,#52

€ 11.00

92064A

920641141
ref: 92064A

JET-PILOT,#42

€ 11.50

92064B

920641142
ref: 92064B

JET-PILOT

€ 11.50

92064C

920641143
ref: 92064C

JET-PILOT,#48

€ 11.50

92064D

920641144
ref: 92064D

JET-PILOT

€ 11.00

92081

920811555
ref: 92081

SPRING,ADJUST SCREW

€ 3.50

92143

921431201
ref: 92143

COLLAR,THROTTLE VALVE

€ 15.00

92144

921441257
ref: 92144

SPRING,THROTTLE STOP

€ 4.00

92144A

921441284
ref: 92144A

SPRING,THROTTLE

€ 12.50

92170

921701113
ref: 92170

CLAMP

€ 2.50

92190

921901149
ref: 92190

TUBE,5.8X10.8X80

€ 4.50
