HANDLEBAR
KDX200-E3 1991 USA CANADA

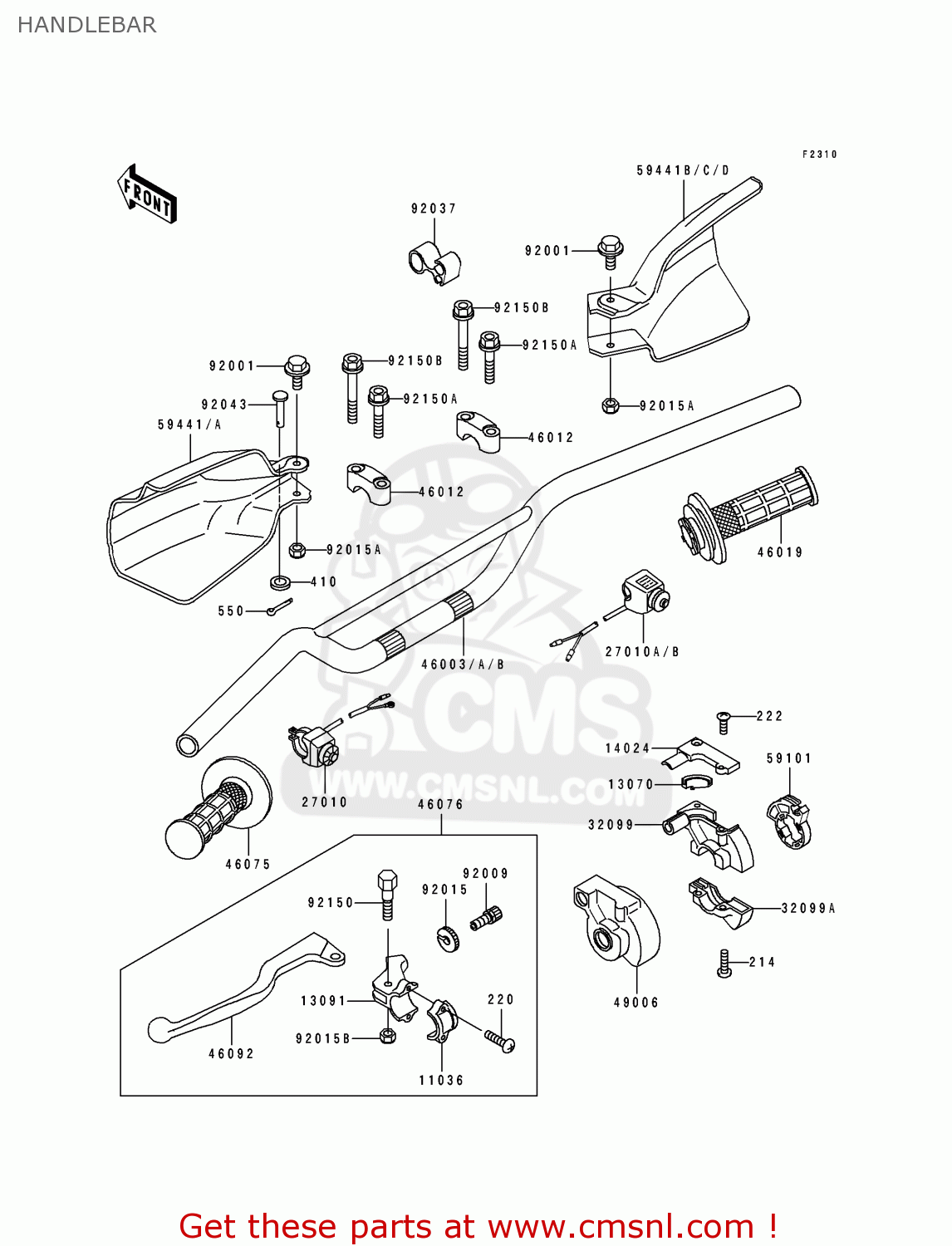

Handlebar diagram KDX200-E3 1991 USA CANADA
HANDLEBAR KDX200-E3 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
214
214C0518
ref: 214
SCREW-PAN+-
€ 2.00
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
222
222E0412
ref: 222
SCREW-CSK-RD-CROS
€ 2.50
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13070
130701073
ref: 13070
GUIDE,THROTTLE PEACE
€ 4.00
13091
130911131
ref: 13091
HOLDER,CLUTCH LEVER
€ 31.50
14024
140251646
ref: 14024
COVER,THROTTLE CASE U
€ 6.50
27010
270101161
ref: 27010
SWITCH,ENGINE STOP
€ 38.00
27010B
270101279
ref: 27010B
SWITCH,LIGHTING
€ 52.50
32099
320991036
ref: 32099
CASE,THROTTLE UPP
€ 25.00
32099A
320991044
ref: 32099A
CASE,THROTTLE LWR
€ 13.50
46003A
460031316CE
ref: 46003A
HANDLE,SILVER NO.25
€ 69.50
46003B
460031316W1
ref: 46003B
US
HANDLE,BLUE NO.1
€ 58.50
46012
460121191
ref: 46012
HOLDER-HANDLE,UPP
€ 21.00
46019
460191054
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46075
460751024
ref: 46075
GRIP,LH
€ 13.50
46076
460761163
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 51.00
46092
460921110
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.50
49006
490061097
ref: 49006
BOOT,THROTTLE CASE
€ 12.00
59101
591011103
ref: 59101
REEL,THROTTLE
€ 8.00
59441
5944110946F
ref: 59441
US
COVER-HANDLE,LH,P.WHI
€ 15.50
59441A
5944110946W
ref: 59441A
COVER-HANDLE,LH,L.GRE
€ 18.00
59441C
5944110986F
ref: 59441C
US
COVER-HANDLE,RH,P.WHI
€ 15.50
59441D
5944110986W
ref: 59441D
COVER-HANDLE,RH,L.GRE
€ 18.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92009
46055009
ref: 92009
SCREW,CABLE ASJUST
€ 13.00
92015
46056006
ref: 92015
NUT,CABLE ADJUST NUT
€ 6.00
92015A
920151603
ref: 92015A
NUT
€ 3.00
92015B
92019008
ref: 92015B
NUT-LOCK,6MM
€ 3.00
92037
920371629
ref: 92037
CLAMP,BRAKE HOSE
€ 6.00
92043
920431434
ref: 92043
PIN,5X27.5
€ 5.00
92150
921501291
ref: 92150
BOLT
€ 14.50
92150A
921501455
ref: 92150A
BOLT,FLANGED,8X30
€ 4.50
92150B
921501456
ref: 92150B
BOLT,FLANGED,8X45
€ 4.50
410
410B0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
550
550D1210
ref: 550
PIN-COTTER,1.2X10
€ 1.50
