GENERATOR
KDX200-E3 1991 USA CANADA

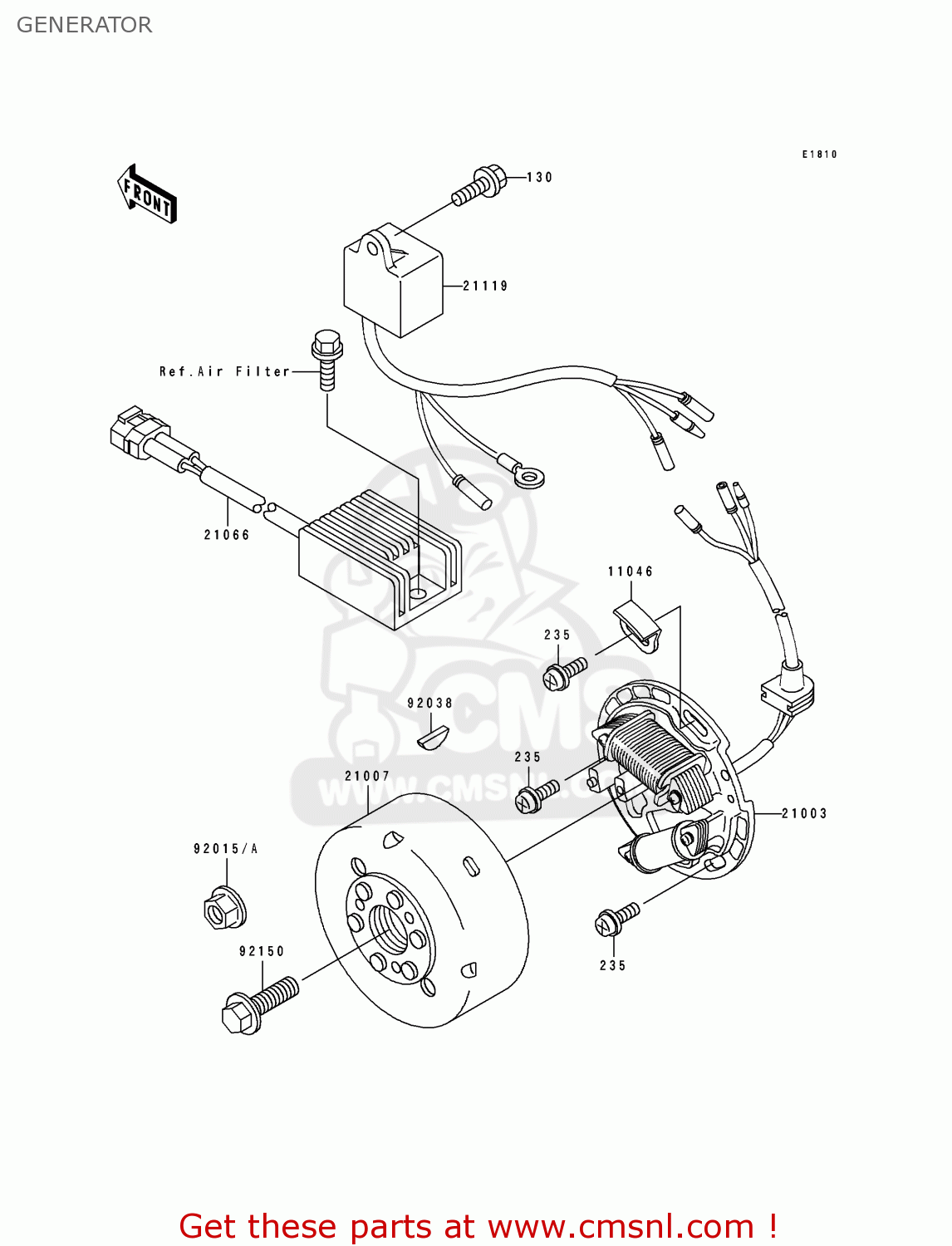

Generator diagram KDX200-E3 1991 USA CANADA
GENERATOR KDX200-E3 1991 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0616
ref: 130
BOLT-FLANGED,6X16
€ 0.50
235
235B0516
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
11046
110461413
ref: 11046
BRACKET
€ 5.50
21003
210031192
ref: 21003
STATOR
€ 482.50
21007
210071177
ref: 21007
ROTOR
€ 430.50
21066
210661072
ref: 21066
REGULATOR-VOLTAGE
€ 164.50
21119
211191257
ref: 21119
IGNITER
€ 335.50
92015
920151156
ref: 92015
NUT,12MM
€ 4.50
92038
92038001
ref: 92038
WOODRUFF KEY
€ 3.00
