MUFFLER(S)
KDX200-C1 1986 UNITED KINGDOM AL

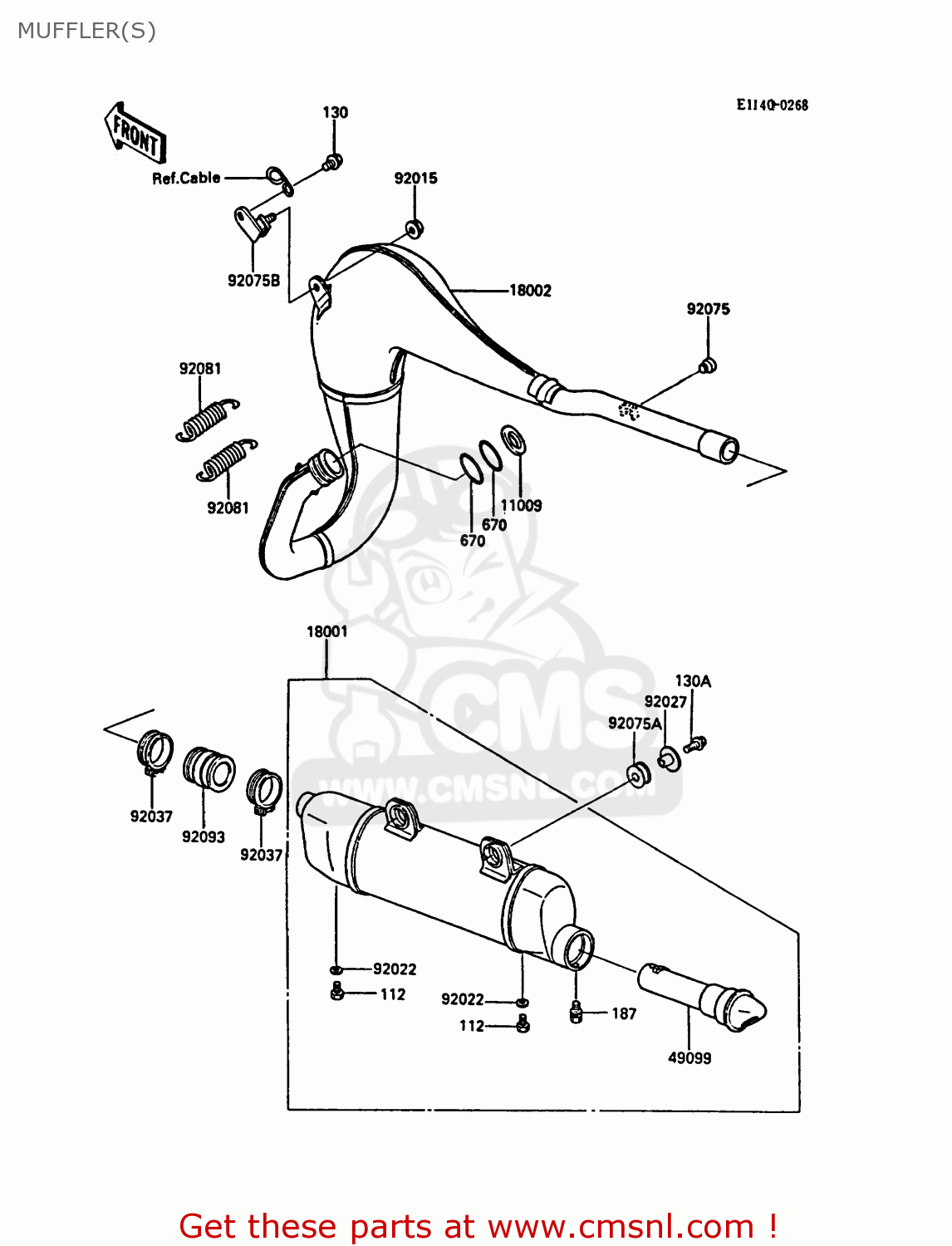

Muffler(s) diagram KDX200-C1 1986 UNITED KINGDOM AL
MUFFLER(S) KDX200-C1 1986 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
112
112B0608
ref: 112
BOLT-HEX,HEAD,6X8
€ 0.50
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
130A
130G0830
ref: 130A
BOLT,8X30
€ 1.00
187
187B0612
ref: 187
BOLT-UPSET-WSP
€ 0.50
670
670E3045
ref: 670
O RING,45MM
€ 11.50
11009
110091123
ref: 11009
GASKET,EXHAUST HOLDER (NAS)
€ 10.50
18001
180011590
ref: 18001
MUFFLER
€ 268.50
18002
180021782
ref: 18002
BODY-COMP-MUFFLER
€ 375.00
49099
490991170
ref: 49099
BAFFLE-PIPE MUFFLER
€ 33.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92027
920271981
ref: 92027
COLLAR,MUFFLER
€ 6.50
92037
92037177
ref: 92037
CLAMP
€ 7.50
92075
920751598
ref: 92075
DAMPER,SIDE COVER
€ 5.50
92075A
920751809
ref: 92075A
DAMPER,MUFFLER
€ 5.50
92075B
920751891
ref: 92075B
DAMPER,MUFFLER
€ 21.00
92081
920811526
ref: 92081
SPRING,MUFFLER CONECT
€ 7.50
92093
920931014
ref: 92093
SEAL,MUFFLER
€ 19.50
