FRAME
KDX200-C1 1986 UNITED KINGDOM AL

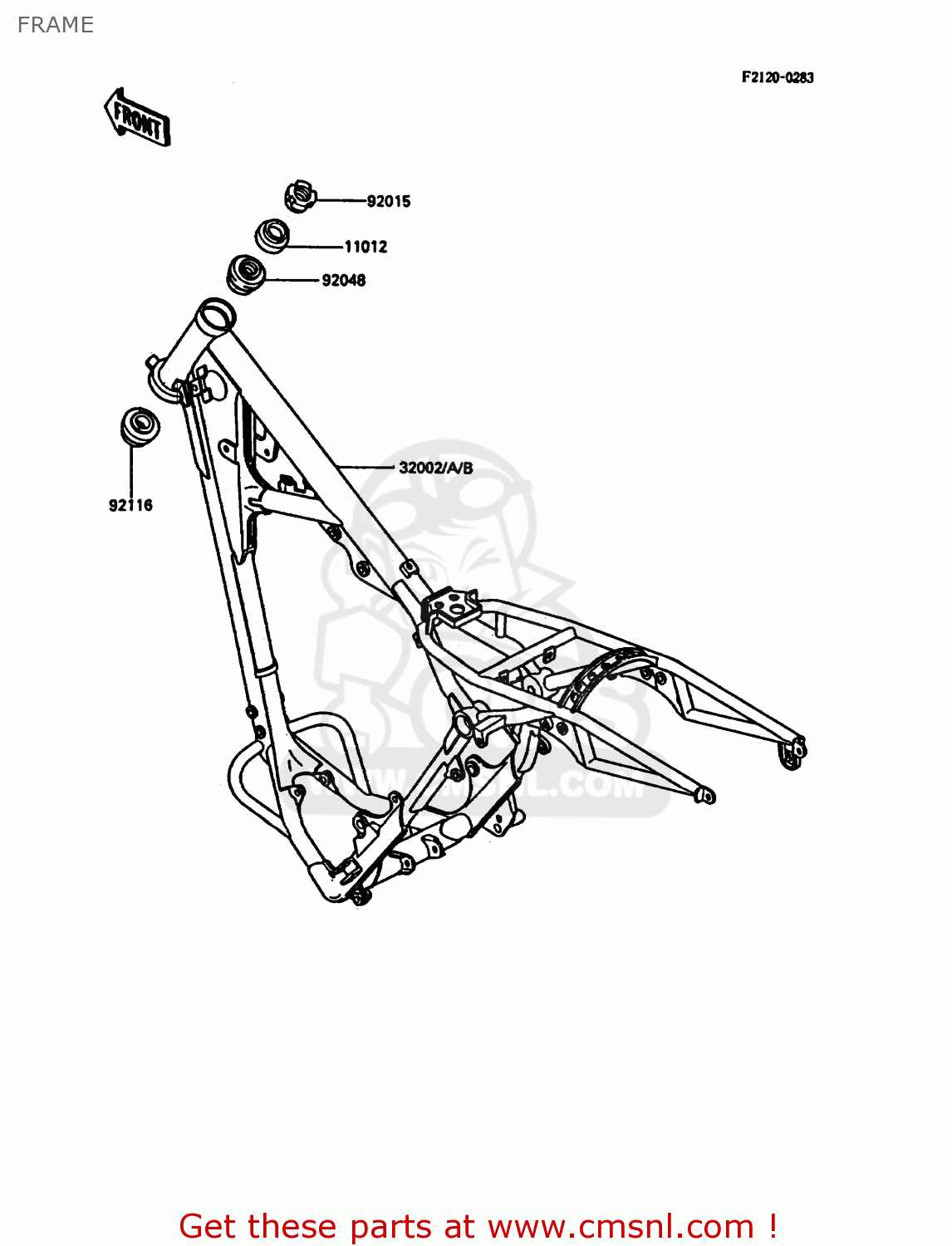

Frame diagram KDX200-C1 1986 UNITED KINGDOM AL
FRAME KDX200-C1 1986 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
11012
46098015
ref: 11012
CAP,STEERING STEM
€ 3.50
32002
320021837
ref: 32002
FRAME-COMP
€ 762.50
92015
92090024
ref: 92015
NUT,STEERING STEM
€ 14.50
92048
92047017
ref: 92048
CONE,STRNG,STEM
€ 49.50
92116
921161008
ref: 92116
BEARING-ROLLER,LWR,32
€ 78.00
