CRANKSHAFT/PISTON(S)
KDX200-C1 1986 UNITED KINGDOM AL

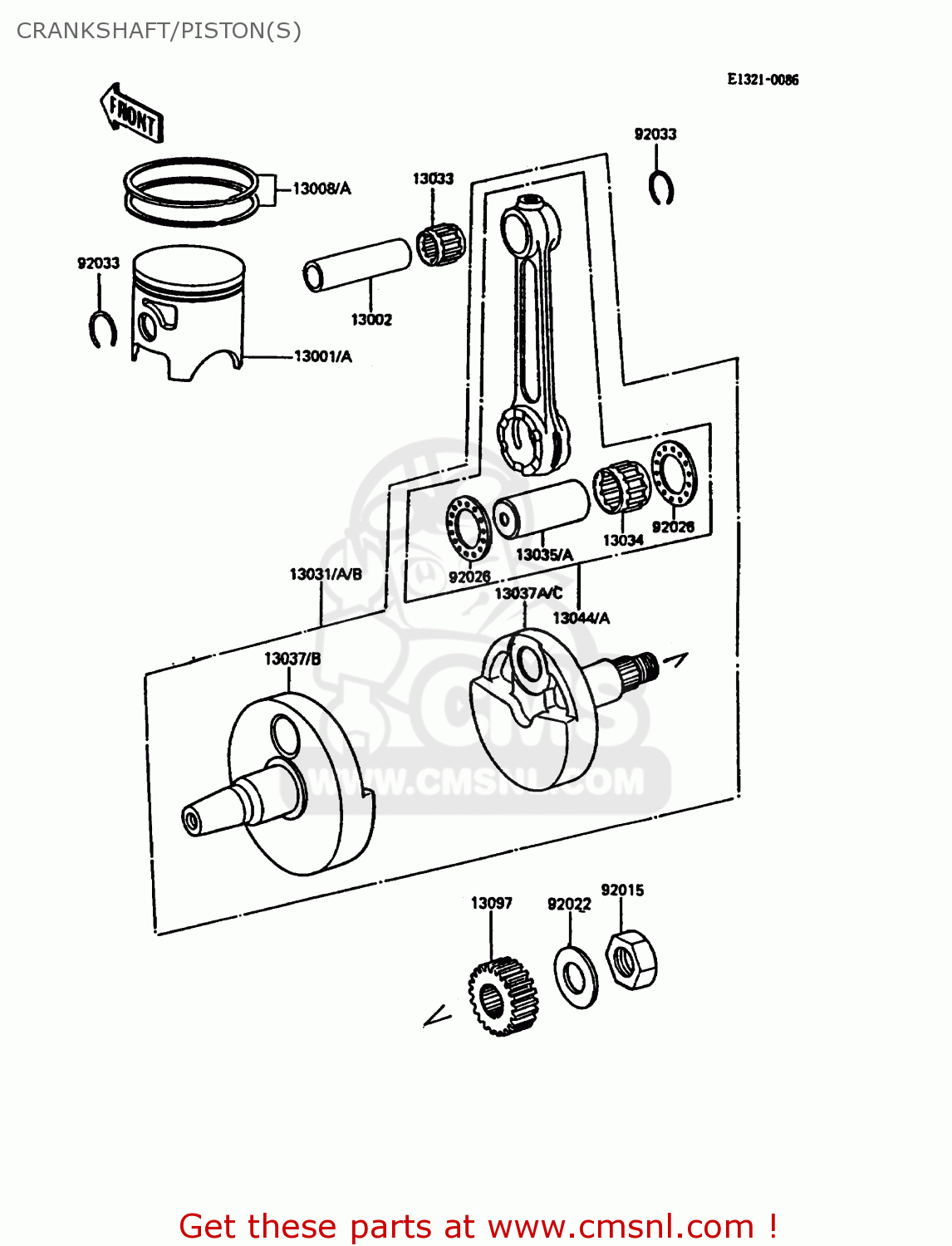

Crankshaft/piston(s) diagram KDX200-C1 1986 UNITED KINGDOM AL
CRANKSHAFT/PISTON(S) KDX200-C1 1986 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
13001
130011219
ref: 13001
PISTON-ENGINE
€ 59.00
13002
130021053
ref: 13002
PIN-PISTON
€ 16.50
13008A
130085057
ref: 13008A
RING-SET-PISTON
€ 44.50
13031
130311211
ref: 13031
CRANKSHAFT-COMP
€ 382.00
13033
130331007
ref: 13033
BEARING-SMALL END
€ 24.00
13034
130341071
ref: 13034
BEARING-BIG END
€ 37.50
13035
130351001
ref: 13035
PIN-CRANK
€ 25.50
13037
130371161
ref: 13037
CRANKSHAFT,LH
€ 148.00
13037A
130371273
ref: 13037A
CRANKSHAFT,RH
€ 148.00
13044
130445058
ref: 13044
SET-CONNECTING ROD
€ 155.00
13097
130971157
ref: 13097
GEAR-PRIMARY SPUR,22T
€ 46.50
92015
920151176
ref: 92015
NUT,16MM
€ 3.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
€ 4.50
92026
92026011
ref: 92026
SPACER,22.5X37X1.0
€ 6.50
92033
920331161
ref: 92033
RING-SNAP,PISTON PIN
€ 2.50
