CYLINDER HEAD/CYLINDER
KDX200-C1 1986 UNITED KINGDOM AL

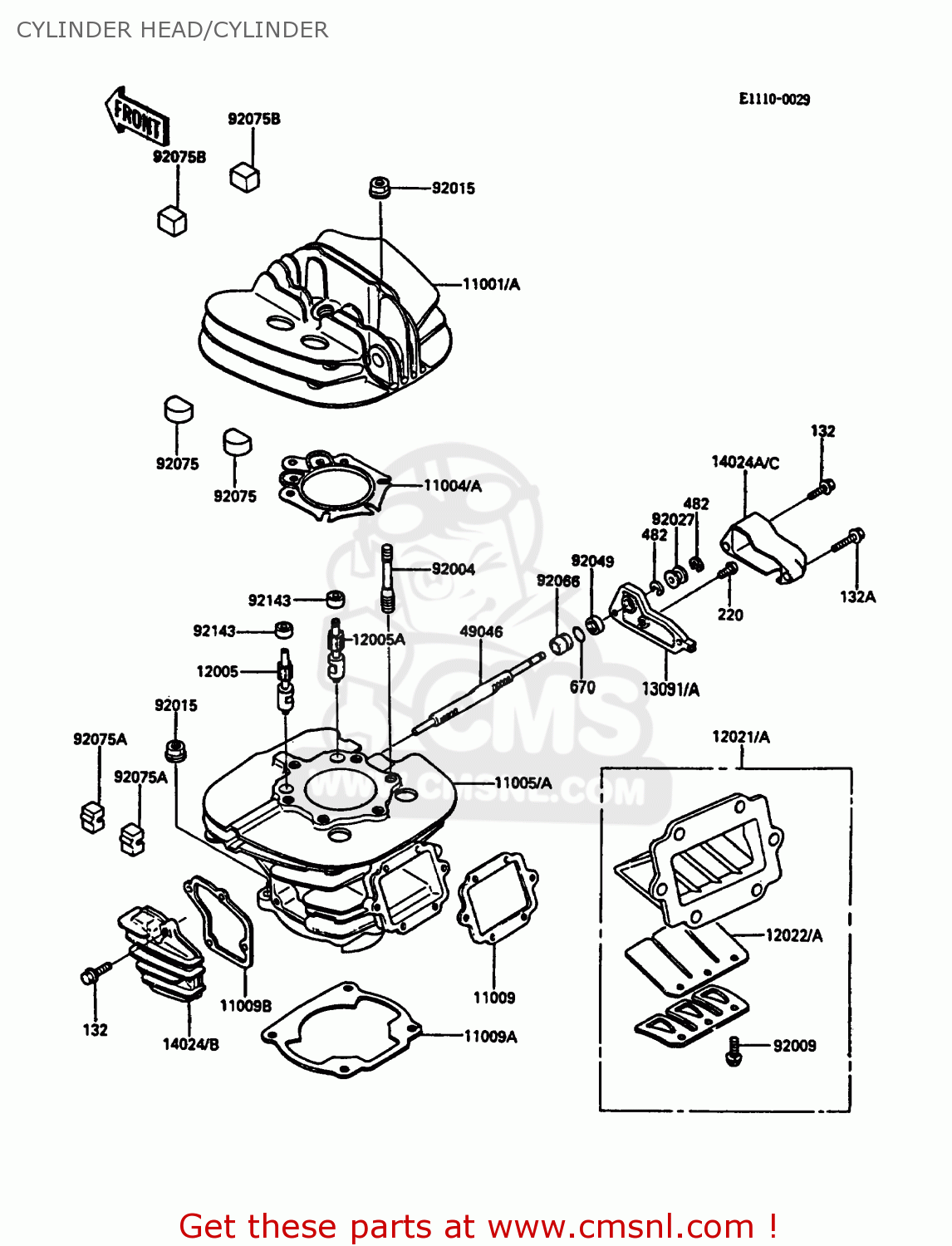

Cylinder head/cylinder diagram KDX200-C1 1986 UNITED KINGDOM AL
CYLINDER HEAD/CYLINDER KDX200-C1 1986 UNITED KINGDOM AL
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
482
482J4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
670
670B2010
ref: 670
O RING,10MM
€ 1.00
11001
110011215
ref: 11001
HEAD-CYLINDER
€ 119.50
11004
110041141
ref: 11004
GASKET-HEAD (NAS)
€ 31.50
11005
110051491
ref: 11005
CYLINDER-ENGINE
€ 626.00
11009
110091263
ref: 11009
GASKET,REED VALVE (MCA)
€ 6.00
11009A
110091541
ref: 11009A
GASKET,CYLINDER BASE
€ 7.50
11009B
110091542
ref: 11009B
GASKET,RESONETOR COVE (MCA)
€ 2.50
12005
120051086
ref: 12005
VALVE-EXHAUST,LH
€ 35.00
12005A
120051087
ref: 12005A
VALVE-EXHAUST,RH
€ 39.00
12021
120211023
ref: 12021
VALVE-ASSY-REED
€ 127.50
12022
120221014
ref: 12022
VALVE-REED
€ 10.50
13091
130911397
ref: 13091
HOLDER,GOVERNOR
€ 17.00
14024
140241127
ref: 14024
COVER,RESONETOR
€ 21.00
14024A
140241128
ref: 14024A
COVER,GOVERNOR
€ 19.50
49046
490461054
ref: 49046
ROD-GOVERNOR
€ 56.50
92004
920041026
ref: 92004
STUD,CYLINDER
€ 4.50
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92027
920271834
ref: 92027
COLLAR,GOVERNOR ROD
€ 11.50
92049
920491206
ref: 92049
SEAL-OIL,RSO-5.5 11 4
€ 7.50
92066
920661223
ref: 92066
PLUG
€ 8.50
92075
920751176
ref: 92075
DAMPER,CYLINDER HEAD
€ 2.50
92075A
920751344
ref: 92075A
DAMPER,CYLINDER
€ 3.00
92075B
920751368
ref: 92075B
DAMPER,CYLINDER HEAD
€ 3.00
92143
920271957
ref: 92143
COLLAR,VALVE GUIDE
€ 6.00
