GEAR CHANGE MECHANISM

KDX125-B6 KDX125SR 1999 EUROPE FR NL GR

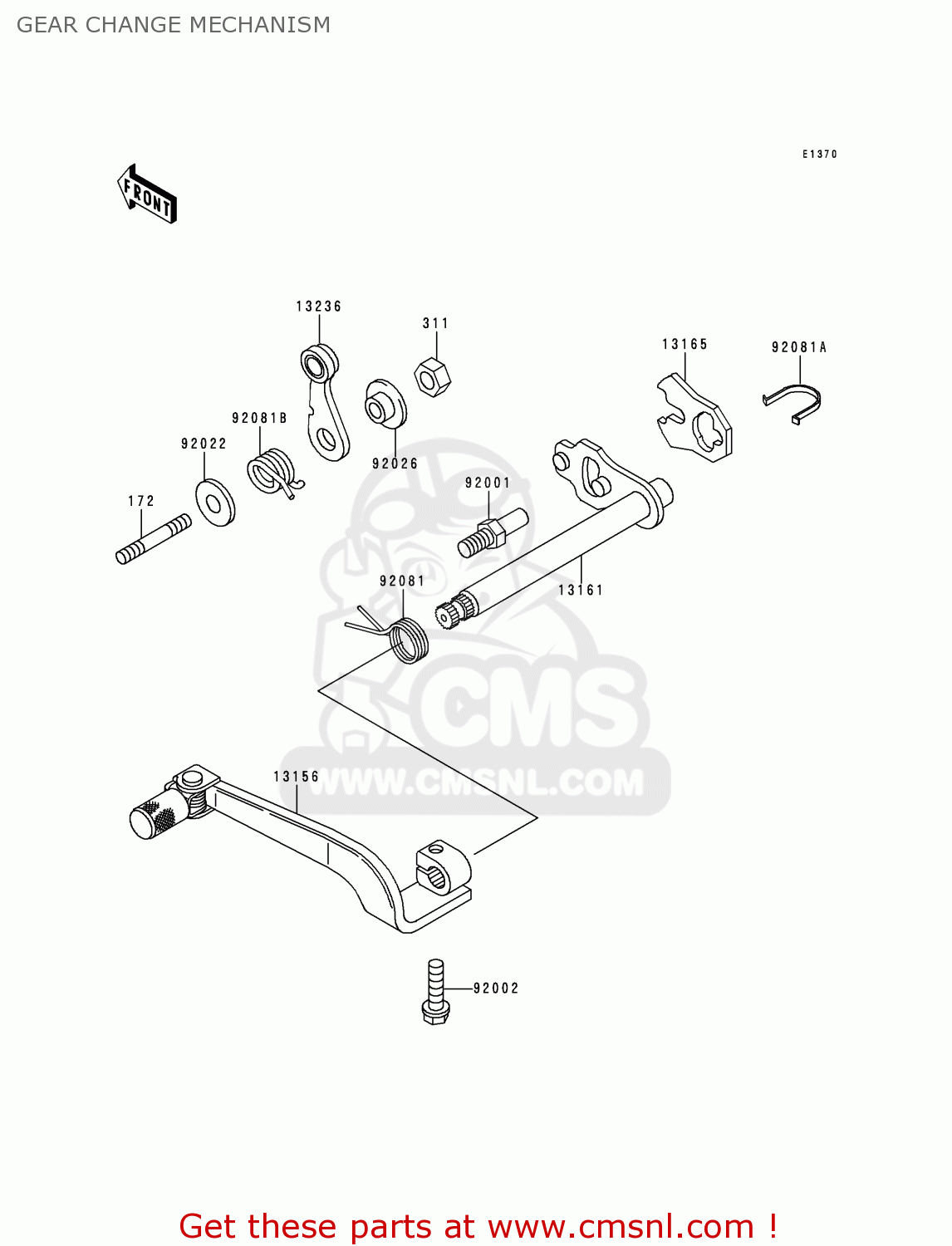

Gear change mechanism diagram KDX125-B6 KDX125SR 1999 EUROPE FR NL GR

prices are in EUR

ref

part #

description

quantity

172

172G0612
ref: 172

BOLT-STUD,6X12

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

13156

131561269
ref: 13156

LEVER-CHANGE,PEDAL

€ 60.00

13161

131611132
ref: 13161

LEVER-COMP-CHANGE SHA

€ 49.50

13165

131651034
ref: 13165

PAWL,CHANGE LEVER

€ 7.00

13236

132361146
ref: 13236

LEVER-COMP,POSITION

€ 7.50

92001

920011455
ref: 92001

BOLT

€ 3.00

92002

920021339
ref: 92002

BOLT,6X25

€ 2.50

92022

920221827
ref: 92022

WASHER,6X12.8X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92081

920811750
ref: 92081

SPRING,CHANGE PEDAL R

€ 7.50

92081A

920811829
ref: 92081A

SPRING,CHANGE LEVER

€ 6.00

92081B

920811993
ref: 92081B

SPRING,POSITION LEVER

€ 4.00
