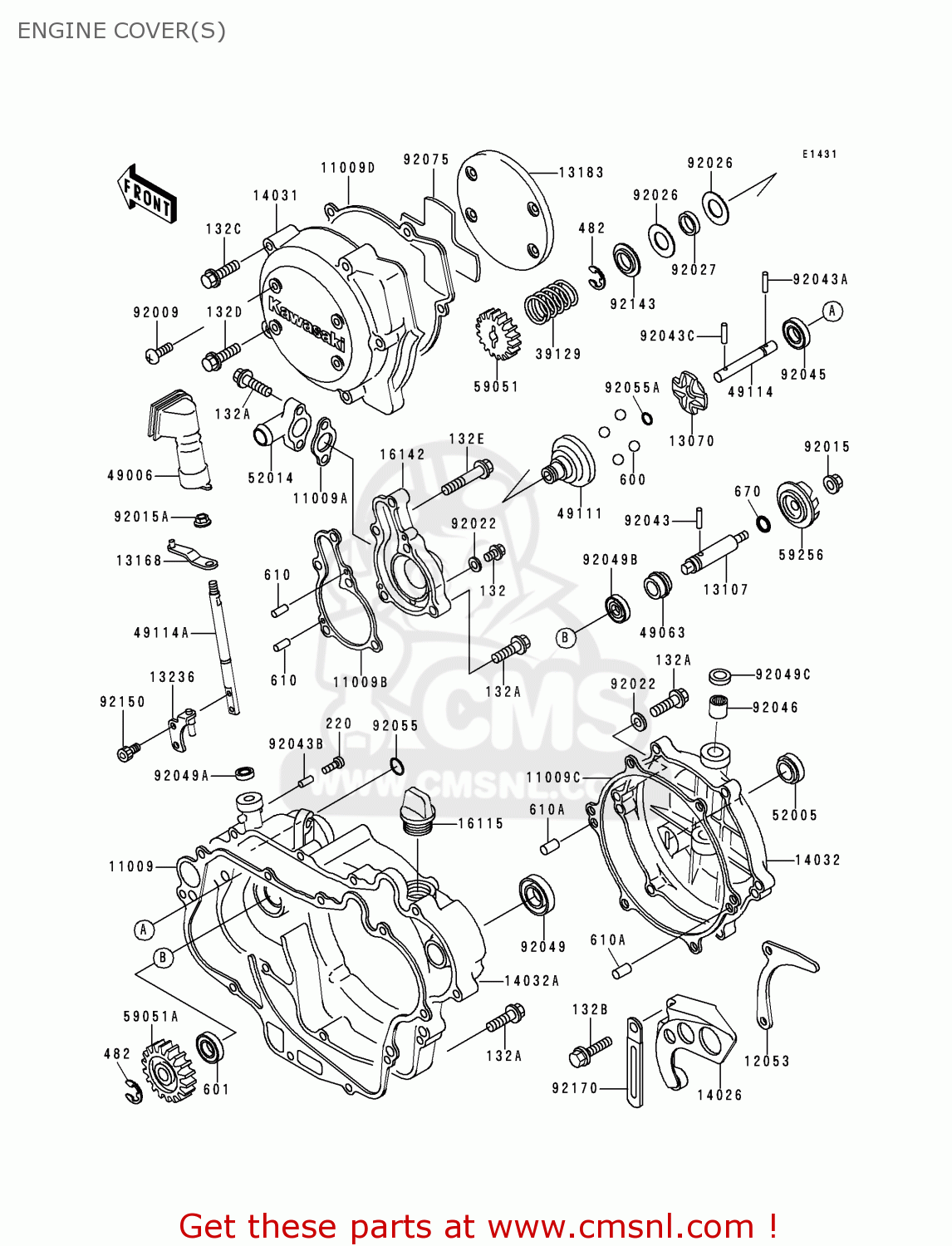

ENGINE COVER(S)

ref

part #

description

quantity

11009

110091841
ref: 11009

GASKET,CLUTCH (NAS)

€ 16.00

11009A

110091935
ref: 11009A

GASKET,ELBOW (NAS)

€ 3.00

11009B

110091936
ref: 11009B

GASKET,PUMP COVER (NAS)

€ 5.00

11009C

110091939
ref: 11009C

GASKET,RELESASE COVER (NAS)

€ 8.50

11009D

110091942
ref: 11009D

GASKET,GENERATOR COVE (NAS)

€ 9.00

12053

120531276
ref: 12053

GUIDE-CHAIN

€ 15.50

13070

130701206
ref: 13070

GUIDE

€ 41.00

13107

131071270
ref: 13107

SHAFT,WATER PUMP

€ 24.50

13168

131681371
ref: 13168

LEVER,GOVERNOR

€ 6.50

13183

131831059
ref: 13183

PLATE,GENERATOR COVER

€ 17.50

13236

132361190
ref: 13236

LEVER-COMP,GOVERNOR S

€ 7.50

14026

140261159
ref: 14026

COVER-CHAIN

€ 17.00

14031

140311246
ref: 14031

COVER-GENERATOR

€ 64.50

14032

140321273
ref: 14032

COVER-CLUTCH

€ 75.50

14032A

140321285
ref: 14032A

COVER-CLUTCH

€ 112.00

16115

16115018
ref: 16115

PLUG,OIL FILLER

€ 7.00

16142

161421106
ref: 16142

COVER-PUMP

€ 120.00

39129

391291003
ref: 39129

SPRING-GOVERNOR,GOVER

€ 3.00

49006

490061228
ref: 49006

BOOT,GOVERNOR

€ 7.50

49063

490631002
ref: 49063

SEAL-MECHANICAL,WATER

€ 17.00

49111

491111054
ref: 49111

HOLDER-GOVERNOR WEIGH

€ 41.00

49114

491141058
ref: 49114

SHAFT-GOVERNOR

€ 19.50

49114A

491141070
ref: 49114A

SHAFT-GOVERNOR

€ 24.50

52005

520051055
ref: 52005

GAUGE,OIL LEVEL

€ 10.50

52014

520141072
ref: 52014

ELBOW

€ 20.00

59051

590511225
ref: 59051

GEAR-SPUR,GOVERNOR,21

€ 23.50

59051A

590511234
ref: 59051A

GEAR-SPUR,PUMP,25T

€ 23.00

59256

592561063
ref: 59256

IMPELLER

€ 23.00

92009

920091154
ref: 92009

SCREW,5X12

€ 2.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

920151572
ref: 92015A

NUT,6MM

€ 2.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92026

920261238
ref: 92026

SPACER,15X28X1

€ 5.50

92027

920271839
ref: 92027

COLLAR,15.2X17X4

€ 8.50

92043

920431129
ref: 92043

PIN,3.5X23.8

€ 3.00

92043A

920431256
ref: 92043A

PIN,3X12.8

€ 3.00

92043B

920431293
ref: 92043B

PIN,2X9.8

€ 4.00

92043C

920431319
ref: 92043C

PIN,3X19.8

€ 2.50

92045

920451305
ref: 92045

BEARING-BALL,608MC3

€ 11.50

92046

920461230
ref: 92046

BEARING-NEEDLE

€ 15.50

132

132G0608
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0625
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132G0630
ref: 132B

BOLT-FLANGED-SMALL

€ 1.50

132C

132G0640
ref: 132C

BOLT-FLANGED-SMALL

€ 2.50

132D

132G0645
ref: 132D

BOLT-FLANGED-SMALL

€ 2.50

132E

132G0665
ref: 132E

BOLT-FLANGED-SMALL

€ 2.50

220

220B0306
ref: 220

SCREW-PAN-CROS

€ 0.50

482

482J0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A1200
ref: 600

BALL-STEEL,3/8

€ 0.50

601

601B6201U
ref: 601

BEARING-BALL,#6201LUC

€ 18.50

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

610A

610A0612
ref: 610A

ROLLER,6X12

€ 3.00

670

670B1506
ref: 670

O RING,6MM

€ 1.00

92049

92049002
ref: 92049

OIL SEAL SB16244

€ 6.00

92049A

920491207
ref: 92049A

SEAL-OIL,SDO8144

€ 6.50

92049B

920491259
ref: 92049B

SEAL-OIL,SC12 28.555

€ 5.50

92049C

920491262
ref: 92049C

SEAL-OIL

€ 4.00

92055

920551258
ref: 92055

RING-O,ID=16.8

€ 3.00

92055A

920551343
ref: 92055A

RING-O,5.5X1.5

€ 3.00

92075

920751895
ref: 92075

DAMPER,GENERATOR COVE

€ 31.00

92143

921431310
ref: 92143

COLLAR

€ 18.00

92150

921501888
ref: 92150

BOLT,SOCKET,4X8

€ 2.00

92170

921701514
ref: 92170

CLAMP

€ 2.50
