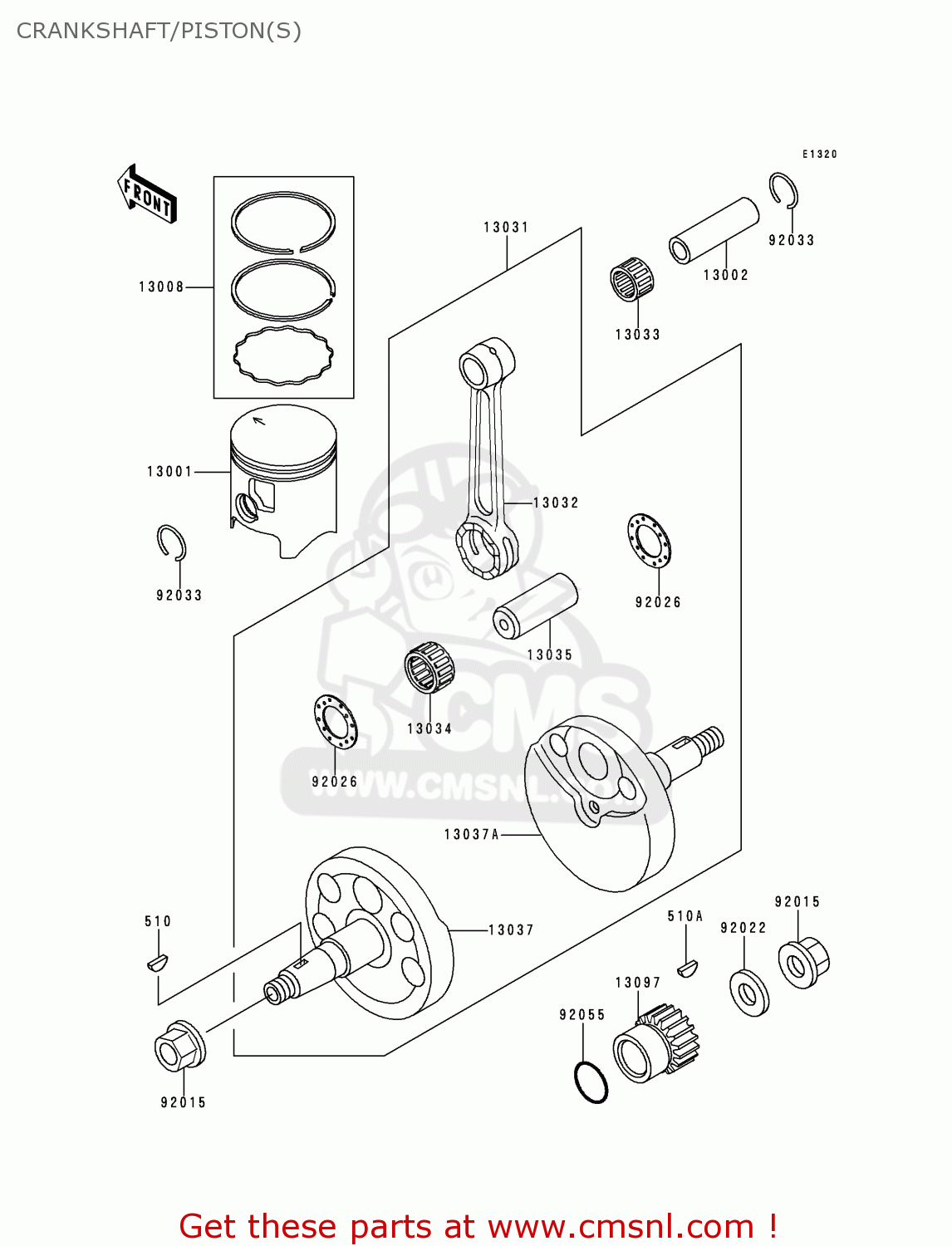

CRANKSHAFT/PISTON(S)

ref

part #

description

quantity

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

510A

510A5100
ref: 510A

KEY-WOODRUFF

€ 1.50

13001

130011346
ref: 13001

PISTON-ENGINE

€ 99.50

13002

130021066
ref: 13002

PIN-PISTON

€ 18.00

13008

130081126
ref: 13008

RING-SET-PISTON

€ 55.50

13031

130311304
ref: 13031

CRANKSHAFT-COMP

€ 440.00

13032

130321146
ref: 13032

ROD-CONNECTING

€ 50.50

13033

130331056
ref: 13033

BEARING-SMALL END

€ 24.00

13034

130341070B4
ref: 13034

BEARING

€ 30.50

13035

13035101001
ref: 13035

PIN-CRANK

€ 33.00

13037

130371385
ref: 13037

CRANKSHAFT,LH

€ 237.00

13037A

130371399
ref: 13037A

CRANKSHAFT,RH

€ 214.00

13097

130971256
ref: 13097

GEAR-PRIMARY SPUR,22T

€ 103.00

92015

920151156
ref: 92015

NUT,12MM

€ 4.50

92022

920221831
ref: 92022

WASHER

€ 3.50

92026

920261136
ref: 92026

SPACER,22.2X37X1.0

€ 5.50

92033

920331242
ref: 92033

RING-SNAP,PISTON PIN

€ 2.50

92055

92055086
ref: 92055

RING-O

€ 2.50
