CLUTCH
KDX125-B6 KDX125SR 1999 EUROPE FR NL GR

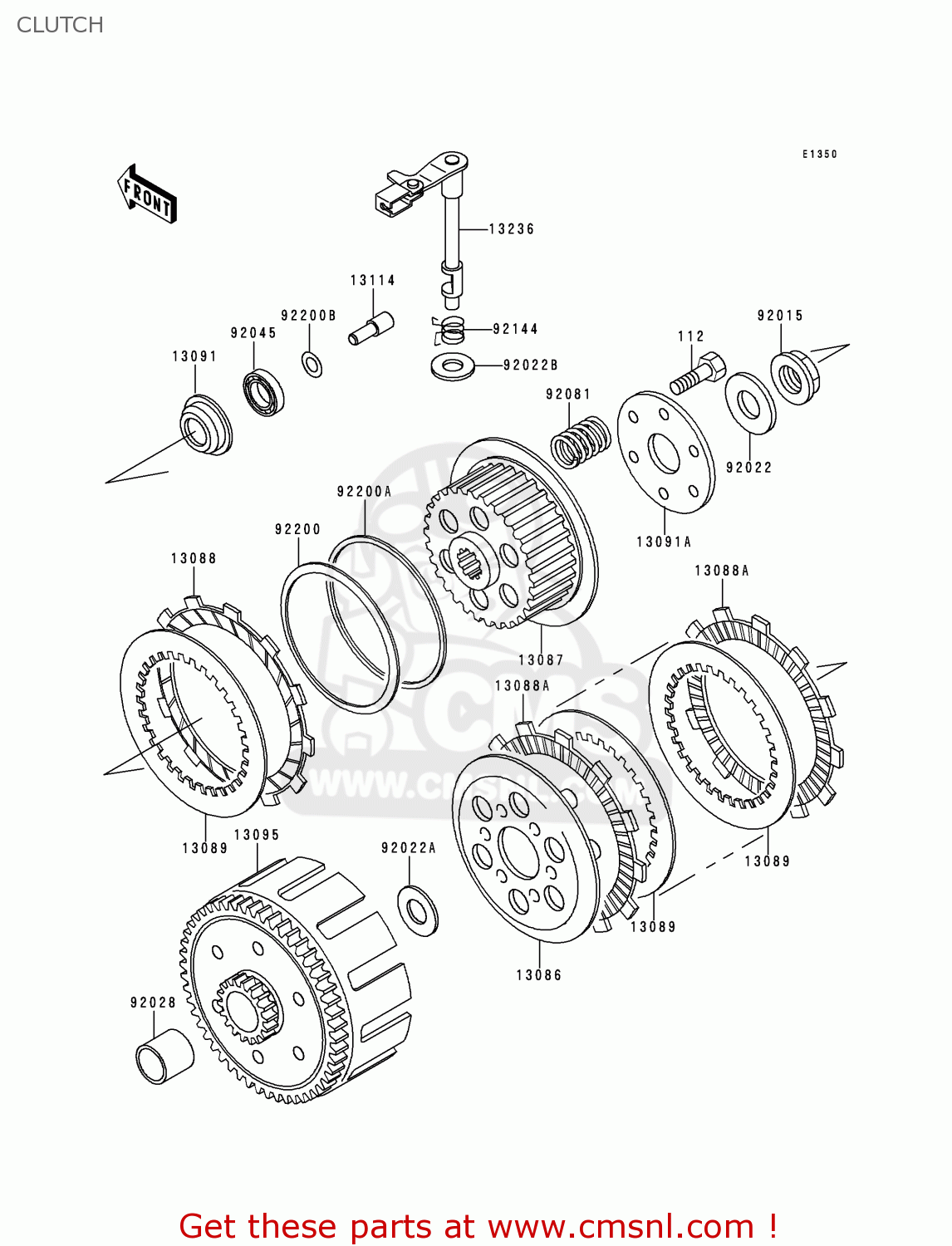

Clutch diagram KDX125-B6 KDX125SR 1999 EUROPE FR NL GR
CLUTCH KDX125-B6 KDX125SR 1999 EUROPE FR NL GR
×
prices are in EUR
ref
part #
description
quantity
112
112G0520
ref: 112
BOLT-UPSET
€ 2.50
13086
130861072
ref: 13086
WHEEL-CLUTCH
€ 33.00
13087
130871128
ref: 13087
HUB-CLUTCH
€ 86.50
13088
130881058
ref: 13088
PLATE-FRICTION (NAS)
€ 14.00
13088A
130881081
ref: 13088A
PLATE-FRICTION,ID=95 (NAS)
€ 16.00
13089
130891070
ref: 13089
PLATE-CLUTCH (NAS)
€ 7.00
13091
130911134
ref: 13091
HOLDER,CLUTCH PUSHER
€ 9.50
13091A
130911683
ref: 13091A
HOLDER,CLUTCH SPRING
€ 15.00
13095
130951215
ref: 13095
HOUSING-COMP-CLUTCH
€ 345.00
13114
131141064
ref: 13114
PUSHER-CLUTCH
€ 16.00
13236
132361259
ref: 13236
LEVER-COMP
€ 36.50
92015
92015072
ref: 92015
NUT,LOCK,16MM
€ 4.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
€ 4.50
92022A
92022223
ref: 92022A
WASHER,20.5X30X1.4
€ 8.50
92022B
92022269
ref: 92022B
WASHER,PLAIN
€ 1.00
92028
920281388
ref: 92028
BUSHING,20X25X26.85
€ 19.50
92045
920451236
ref: 92045
BEARING-BALL,627
€ 19.50
92081
920811637
ref: 92081
SPRING,CLUTCH
€ 7.00
92144
921441287
ref: 92144
SPRING
€ 4.00
92200
922001079
ref: 92200
WASHER,JUDDER SPRING
€ 7.00
92200A
922001080
ref: 92200A
WASHER,JUDDER PLATE
€ 5.50
92200B
922001197
ref: 92200B
WASHER,7X12.5X0.8
€ 2.00
