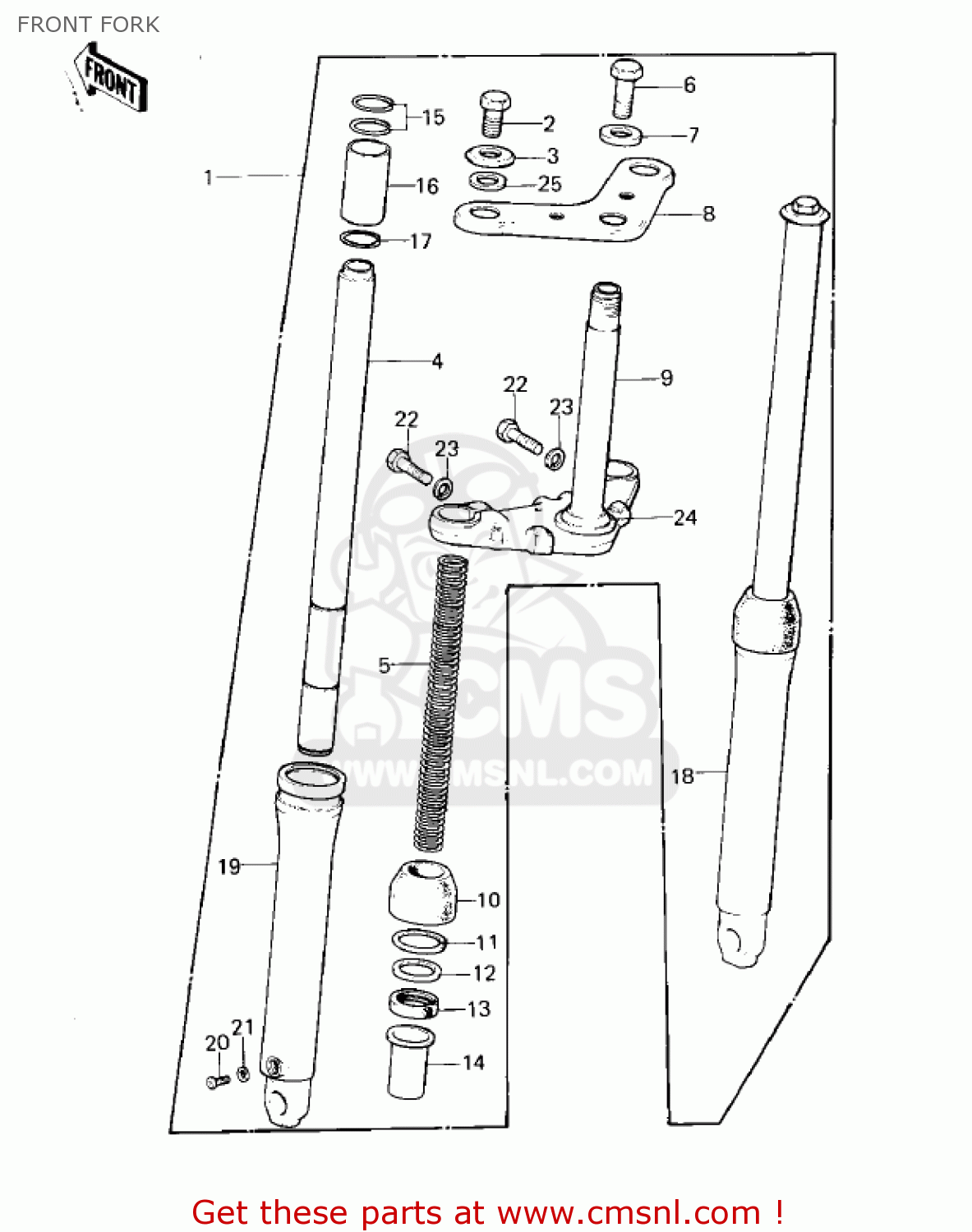

FRONT FORK

ref

part #

description

quantity

1

440011419
ref: 1

FRONT FORK

€ 528.50

2

920011742
ref: 2

BOLT

€ 10.50

3

920221381
ref: 3

WASHER

€ 6.00

4

440131034
ref: 4

TUBE,FORK INNER

€ 58.00

5

440261050
ref: 5

SPRING,FORK INNER

€ 10.50

6

112G1030
ref: 6

BOLT UPSET

€ 4.50

7

920221381
ref: 7

WASHER

€ 6.00

8

440391025
ref: 8

HOLDER-FORK UPPER

€ 44.00

9

440371034
ref: 9

HOLDER-FORK UNDER

€ 110.00

10

44010024
ref: 10

DUST SHIELD,FORK

€ 9.00

11

44044016
ref: 11

RING-SNAP,40MM

€ 4.50

12

44043054
ref: 12

WASHER,FORK OUTER PIP

€ 2.50

13

920491075
ref: 13

SEAL OIL, OUTER TUBE

€ 10.00

14

44015016
ref: 14

GUIDE,FORK INNER PIPE

€ 10.50

15

44020003
ref: 15

RING,INNER TUBE GUIDE

€ 2.00

16

44018007
ref: 16

PISTON-FORK

€ 9.50

17

44044017
ref: 17

CIRCLIP,OUTER TUBE

€ 2.00

18

44006050
ref: 18

TUBE,R.H OUTER

€ 93.50

19

44005052
ref: 19

TUBE,L.H FORK OUTER

€ 65.50

20

220B0406
ref: 20

SCREW-PAN-CROS,4X6

€ 2.50

21

44045046
ref: 21

GASKET,FORK DRAIN PLU (NAS)

€ 4.50

22

920011252
ref: 22

BOLT,HEX HEAD,10X35

€ 3.50

23

461F1000
ref: 23

WASHER-SPRING,10MM

€ 0.50

24

92047004
ref: 24

CONE-LOWER BEARING

€ 13.00

25

44045053
ref: 25

GASKET,FORK TOP BOLT (NAS)

€ 3.00
