FRAME/FRAME FITTINGS

KD80-M1 KD80 1980

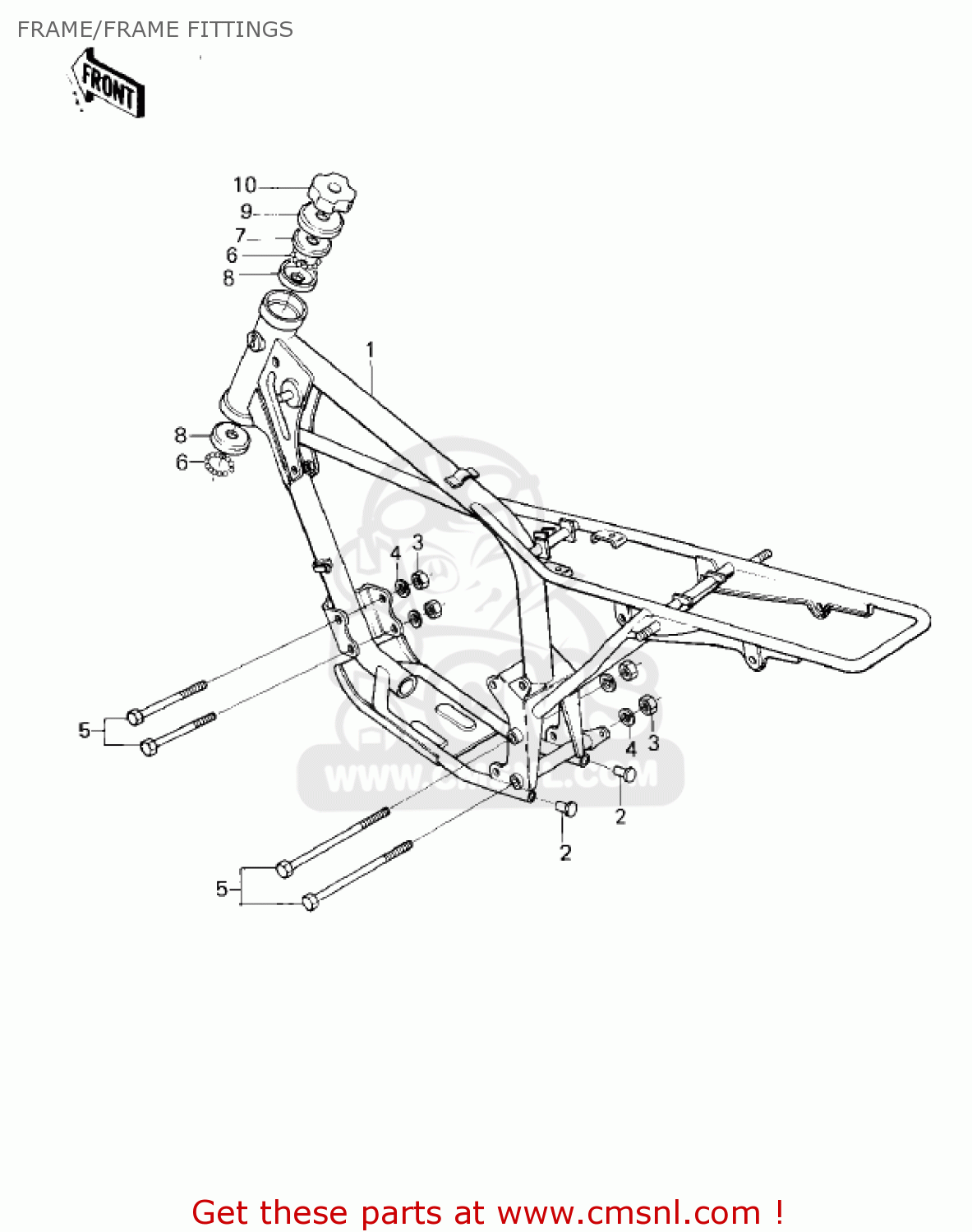

Frame/frame fittings diagram KD80-M1 KD80 1980

FRAME/FRAME FITTINGS KD80-M1 KD80 1980

FRAME/FRAME FITTINGS KD80-M1 KD80 1980

prices are in EUR

ref

part #

description

quantity

1

320021122
ref: 1

FRAME

€ 338.00

2

32112001
ref: 2

PLUG

€ 2.50

3

314B1000
ref: 3

NUT,10MM

€ 0.50

4

461F1000
ref: 4

WASHER-SPRING,10MM

€ 0.50

5

920011603
ref: 5

BOLT,FLANGED,10X115

€ 7.00

6

600A0600
ref: 6

BALL-STEEL,3/16

€ 0.50

7

92047005
ref: 7

CONE-UPPER BEARING

€ 10.50

8

92048004
ref: 8

RACE-BEARING

€ 10.00

9

46098004
ref: 9

CAP-STEERING STEM

€ 4.00

10

92090006
ref: 10

NUT-STEERING STEM LCK

€ 10.50
