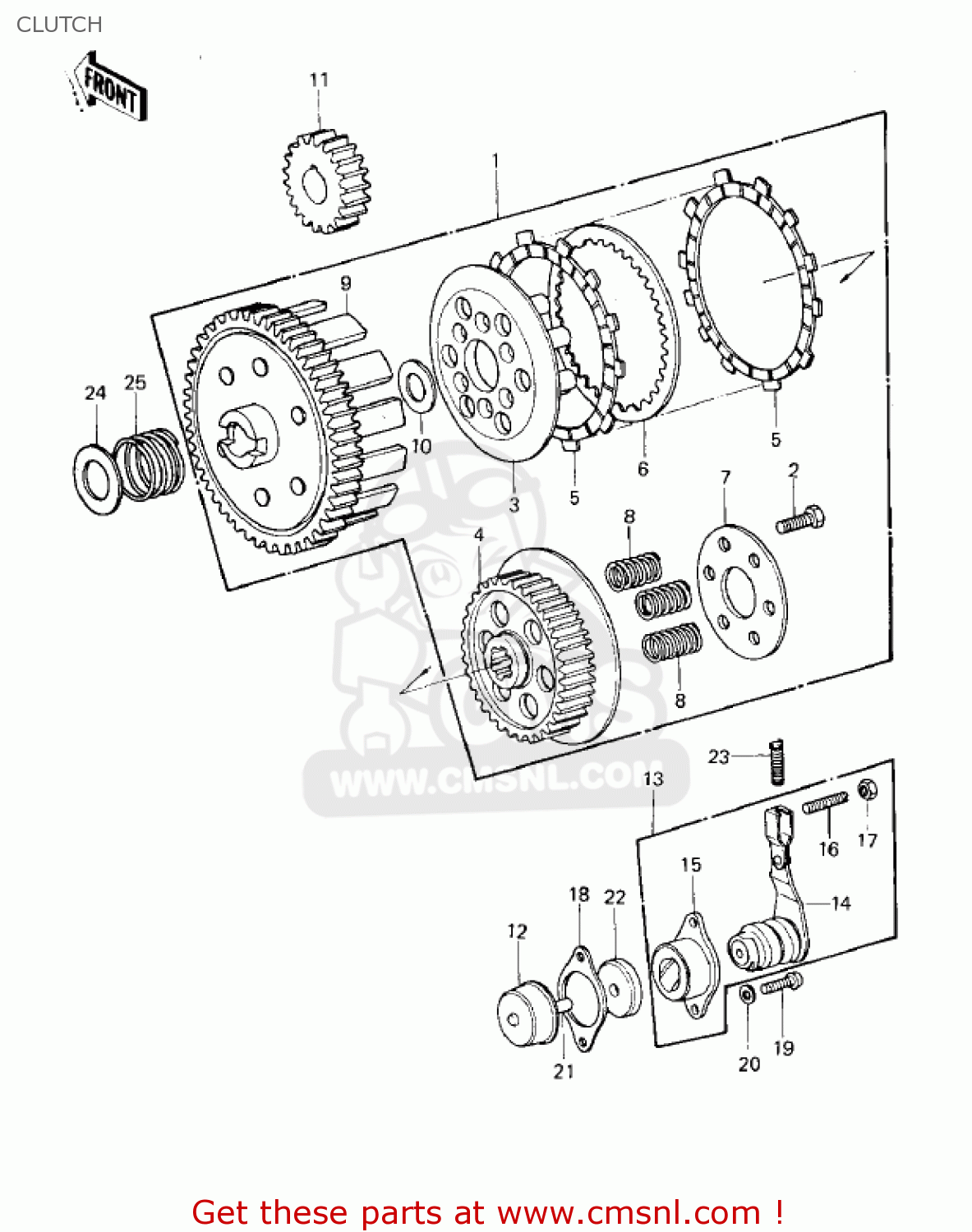

CLUTCH

ref

part #

description

quantity

1

13081028
ref: 1

CLUTCH ASSY

€ 193.00

2

112G0516
ref: 2

BOLT-UPSET

€ 0.50

3

130861002
ref: 3

WHEEL,CLUTCH

€ 33.00

4

130871011
ref: 4

HUB-CLUTCH

€ 74.00

5

130881103
ref: 5

PLATE-FRICTION (MCA)

€ 11.00

6

130891009
ref: 6

PLATE-CLUTCH,STEEL (NAS)

€ 8.50

7

130911115
ref: 7

HOLDER,CLUTCH SPRING

€ 12.50

8

92081012
ref: 8

SPRING-CLUTCH

€ 4.00

9

13095022
ref: 9

HOUSING,CLUTCH

€ 216.00

10

92022054
ref: 10

WASHER,16.5X27X1.4

€ 4.50

11

13121032
ref: 11

GEAR-PRIMARY SPUR

€ 92.50

12

13113003
ref: 12

PUSHER-COMP-CLUTCH

€ 6.50

13

132311008
ref: 13

RELEASE-ASSY-CLUTCH

€ 55.00

14

132311008
ref: 14

RELEASE-ASSY-CLUTCH

€ 55.00

15

132311008
ref: 15

RELEASE-ASSY-CLUTCH

€ 55.00

16

291H0616
ref: 16

SCREW,SLOTTED,6X16

€ 4.00

17

312B0600
ref: 17

NUT,6MM

€ 0.50

18

110601197
ref: 18

GASKET,CLUTCH RELEASE (NAS)

€ 3.50

19

220B0616
ref: 19

SCREW-PAN HEAD,6X16

€ 2.50

20

410B0600
ref: 20

WASHER-PLAIN-SMALL,6M

€ 0.50

21

92042043
ref: 21

PIN,DOWEL,7X20

€ 3.50

22

92050071
ref: 22

OIL SEAL

€ 7.00

23

92081096
ref: 23

SPRING-CLUTCH RELEASE

€ 3.50

24

92022057
ref: 24

WASHER,25.5X36X1

€ 2.50

25

92081015
ref: 25

SPRING-CLUTCH DAMPER

€ 4.00

all assemblies
