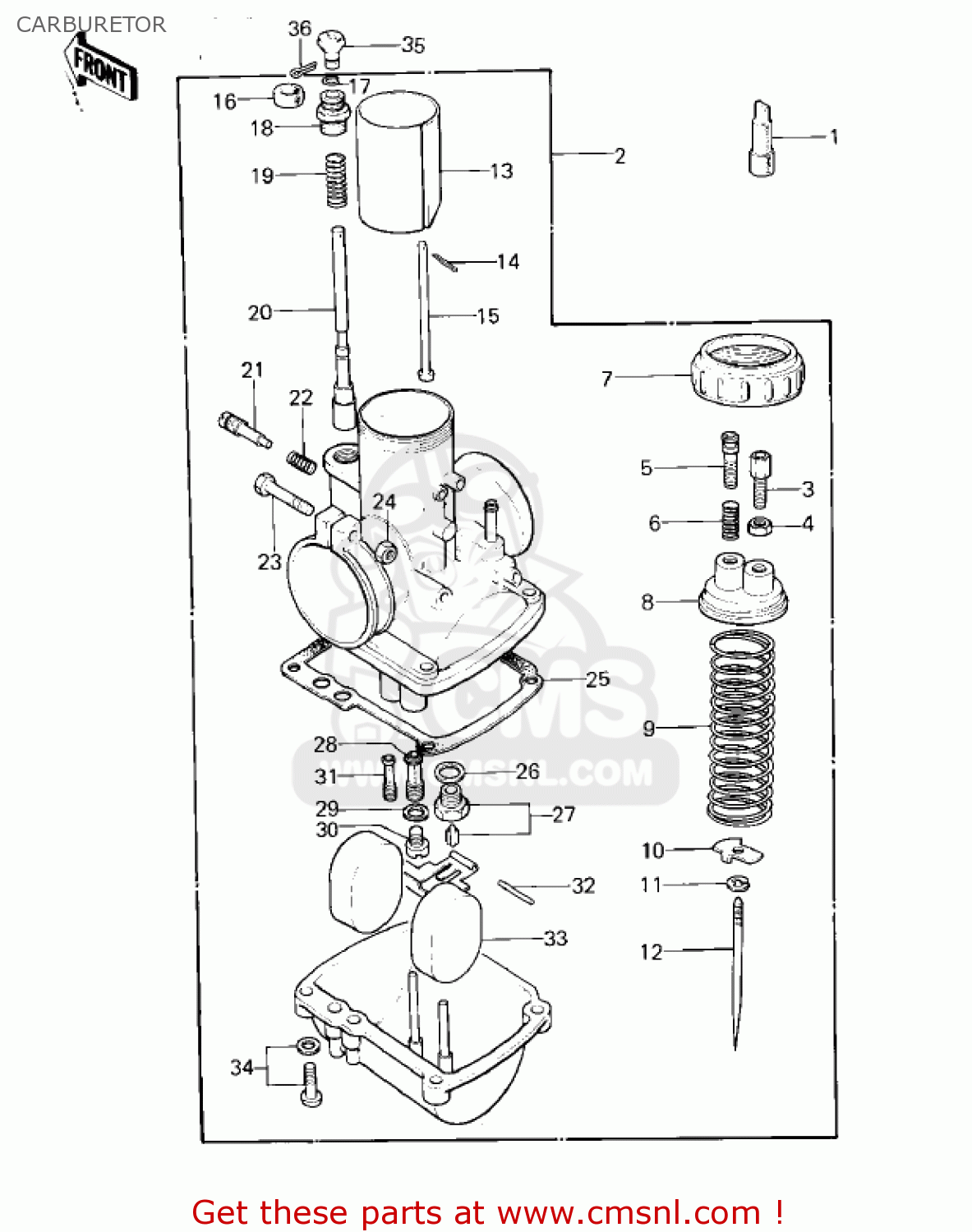

CARBURETOR

ref

part #

description

quantity

1

16147001
ref: 1

PLUG,12X40

€ 3.00

2

16001251
ref: 2

CARBURETOR

€ 230.00

3

16002017
ref: 3

ADJUSTER-CABLE

€ 8.00

4

16003004
ref: 4

NUT-CABLE ADJUST LOCK

€ 4.50

5

16021002
ref: 5

SCREW-THROTTLE STOP

€ 12.00

6

16022005
ref: 6

SPRING-THR STOP SCREW

€ 5.50

7

16004010
ref: 7

CAP-CHAMBER,MIXING

€ 13.50

8

16005005
ref: 8

TOP-CHAMBER,MIXING

€ 12.50

9

16006013
ref: 9

SPRING-THROTTLE VALVE

€ 10.00

10

16007020
ref: 10

SEAT-SPRING,THROTTLE

€ 7.00

11

16008010
ref: 11

CLAMP,E-TYPE

€ 5.00

12

16009059
ref: 12

NEEDLE-JET,4EJ7

€ 26.50

13

16025057
ref: 13

VALVE-THROTTLE,CA2.0

€ 80.50

14

550D1210
ref: 14

PIN-COTTER,1.2X10

€ 1.50

15

16024012
ref: 15

ROD,THROTTLE VALVE ST

€ 5.50

16

16036012
ref: 16

BOOT,STARTER PLUNGER

€ 4.50

17

920371077
ref: 17

CLAMP

€ 3.00

18

16012010
ref: 18

CAP-STARTER PLUNGER

€ 8.00

19

16013010
ref: 19

SPRING,STARTER PLUNGR

€ 3.50

20

16016012
ref: 20

PLUNGER,STARTER

€ 28.00

21

16014002
ref: 21

SCREW-PILOT AIR

€ 11.00

22

16022007
ref: 22

SPRING-THR STOP SCREW

€ 5.50

23

16010004
ref: 23

SCREW-CLAMP

€ 3.50

24

311B0600
ref: 24

NUT,6MM

€ 0.50

25

16019021
ref: 25

GASKET,FLOAT CHAMBER (NAS)

€ 13.00

26

16029002
ref: 26

WASHER-VALVE SEAT

€ 2.50

27

16030009
ref: 27

VALVE-FLOAT,#1.5

€ 30.50

28

16017068
ref: 28

JET-NEEDLE,O-2

€ 37.50

29

16034001
ref: 29

WASHER-MAIN JET

€ 2.50

30

920631030
ref: 30
STD

JET-MAIN,#A80R

€ 11.00

30

92063109
ref: 30
OPTION

JET-MAIN,#75R

€ 10.50

30

920631032
ref: 30
OPTION

JET-MAIN,#A77.5R

€ 10.00

30

92063124
ref: 30
OPTION

MAIN JET,#82.5R

€ 10.50

30

92063093
ref: 30
OPTION

MAIN JET,#85R

€ 10.50

31

92064020
ref: 31

JET-PILOT,#17.5

€ 13.50

32

16032003
ref: 32

FLOAT PIN

€ 4.00

33

16031015
ref: 33

FLOAT

€ 40.50

34

16033012
ref: 34

SCREW-FLOAT CHAMBER

€ 1.00

35

92077022
ref: 35

KNOB,CARBURETOR

€ 7.00

36

550D1615
ref: 36

PIN-COTTER,1.6X15

€ 1.50
