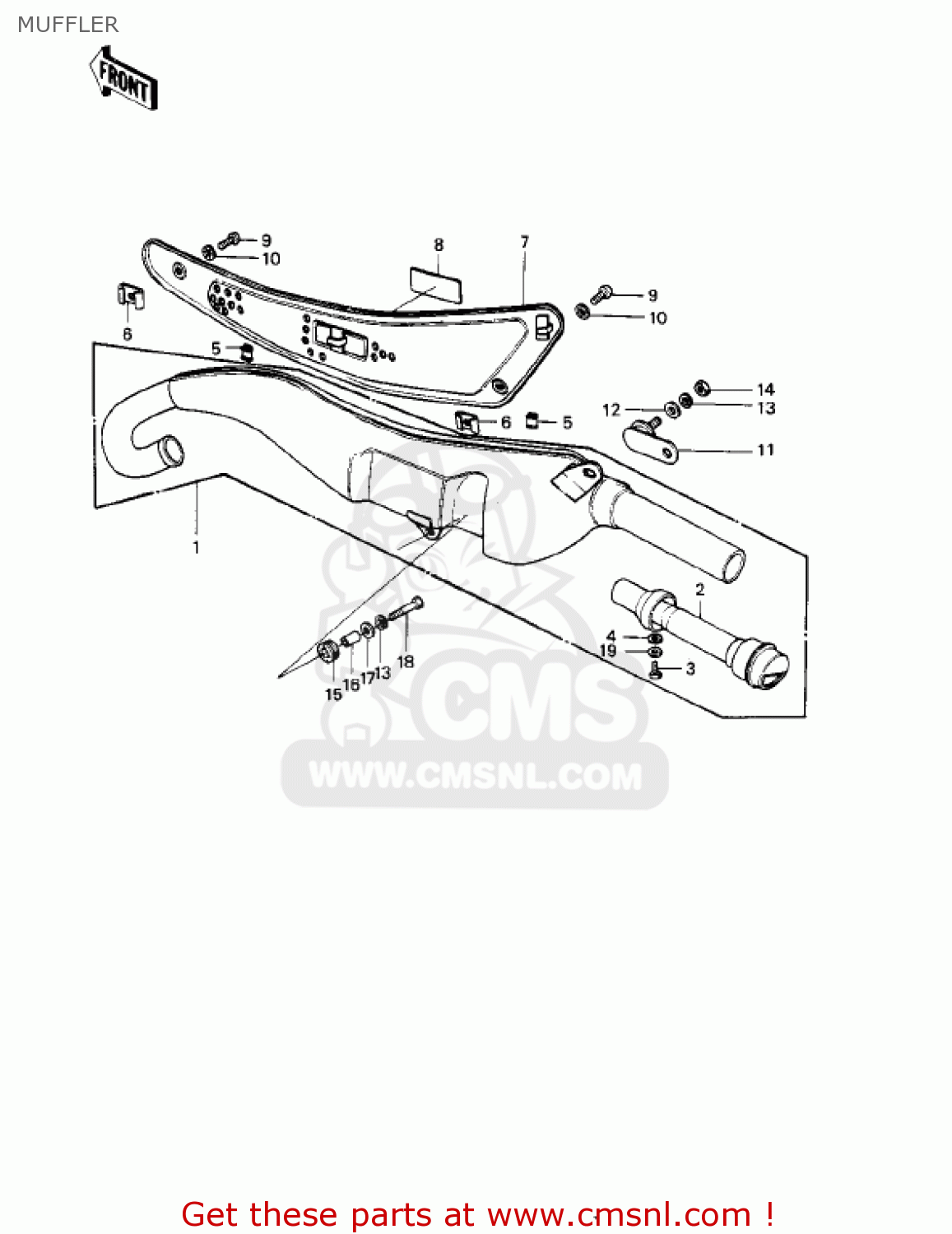

MUFFLER

ref

part #

description

quantity

1

1800115021
ref: 1

MUFFLER ASSY,F.BLACK

€ 243.50

2

18033091
ref: 2

BAFFLE TUBE

€ 59.50

3

112G0612
ref: 3

BOLT-UPSET

€ 2.50

4

92022183
ref: 4
KD175-A1

WASHER,6.2X11X1.5

€ 2.50

4

92022077
ref: 4
KD175-A2/A3/A4

WASHER,6.1X12X1

€ 0.50

5

18065007
ref: 5

INSULATOR,HEAT

€ 3.00

6

18065010
ref: 6

INSULATOR,HEAT

€ 2.50

7

18064014
ref: 7

COVER,MUFFLER

€ 37.00

8

56018220
ref: 8
KD175-A1/A2/A3

SIDE COVER EMBLEM

€ 28.50

8

560181096
ref: 8
KD175-A4

MUFFLER COVER MARK

€ 6.00

9

220E0612
ref: 9

SCREW-PAN HEAD,6X12

€ 3.00

10

463H0600
ref: 10

WASHER-LOCK,6MM

€ 0.50

11

18061054
ref: 11

BRACKET,MUFFLER

€ 16.50

12

920221561
ref: 12

WASHER,8.5X20X1.6

€ 2.50

13

461F0800
ref: 13

WASHER-SPRING,8MM

€ 0.50

14

311B0800
ref: 14

NUT,8MM

€ 0.50

15

18063005
ref: 15

DAMPER,MUFFLER

€ 3.00

16

92027102
ref: 16

COLLAR

€ 1.00

17

920221564
ref: 17

WASHER

€ 2.50

18

115G0830
ref: 18

BOLT-SMALL-UPSET,8X30

€ 3.00

19

410B0600
ref: 19

WASHER-PLAIN-SMALL,6M

€ 0.50
