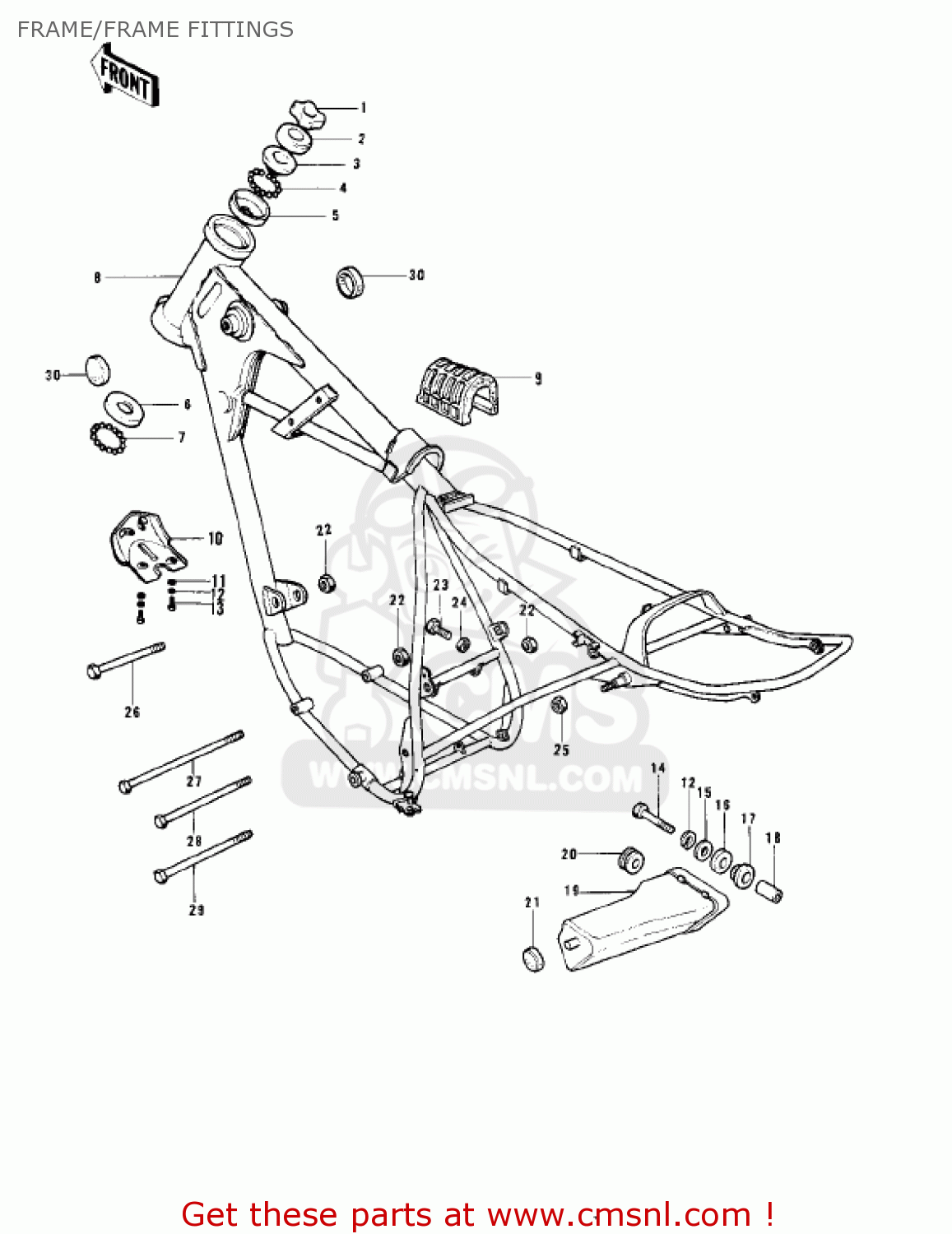

FRAME/FRAME FITTINGS

ref

part #

description

quantity

1

92090022
ref: 1

NUT,STEERING LOCK,25M

€ 18.50

2

46098012
ref: 2

CAP,STEERING STEM

€ 4.50

3

92047014
ref: 3

RACE,STEERING STEM BE

€ 12.50

4

600A0600
ref: 4

BALL-STEEL,3/16

€ 0.50

5

92048009
ref: 5

RACE,STRG STM

€ 14.00

6

92048005
ref: 6

RACE-STEERING BEARING

€ 11.50

7

600A0800
ref: 7

BALL-STEEL,1/4

€ 0.50

8

32002145
ref: 8

FRAME

€ 1,163.50

8

320021081
ref: 8

FRAME

€ 388.00

9

92075284
ref: 9

DAMPER,FUEL TANK

€ 12.50

10

55011023
ref: 10
KD175-A3/A4

GUARD,ENGINE

€ 26.50

11

92022125
ref: 11
KD175-A3/A4

WASHER,6.5X20X1.6

€ 1.00

12

461F0600
ref: 12
KD175-A3/A4

WASHER-SPRING,6MM

€ 0.50

13

112G0616
ref: 13
KD175-A3/A4

BOLT UPSET,6X16

€ 1.00

14

112G0625
ref: 14

BOLT-UPSET,6X25

€ 4.00

15

92022228
ref: 15
KD175-A1/A2/A3

WASHER-PLAIN,7MM

€ 2.50

15

92022125
ref: 15
KD175-A4

WASHER,6.5X20X1.6

€ 1.00

16

92075175
ref: 16

DAMPER,FEMALE

€ 2.50

17

92075174
ref: 17

DAMPER,MALE

€ 3.00

18

92027241
ref: 18

COLLAR

€ 4.50

19

32098022
ref: 19

CASE,TOOL

€ 26.00

20

92075150
ref: 20

DAMPER,OIL TANK

€ 2.50

21

92075107
ref: 21

DAMPER

€ 2.00

22

92019021
ref: 22

NUT,LOCK,10M/M

€ 2.00

23

112B0622
ref: 23
KD175-A1

BOLT, 6X22

€ 2.50

23

110N0632
ref: 23
KD175-A2/A3/A4

BOLT,6X32

€ 2.50

24

311B0600
ref: 24

NUT,6MM

€ 0.50

25

92019009
ref: 25

NUT,LOCK,12MM

€ 5.00

26

920011618
ref: 26

BOLT,FLANGED,10X70

€ 7.00

27

920021197
ref: 27

BOLT,10X220

€ 14.50

28

920011247
ref: 28

BOLT,HEX HEAD,10X120

€ 6.00

29

113B12115
ref: 29

BOLT,HEX HEAD,12X115

€ 2.00

30

92075101
ref: 30

DAMPER RUBBER-FL TANK

€ 4.00
