KICKSTARTER MECHANISM
KD175-A3 1978 CANADA

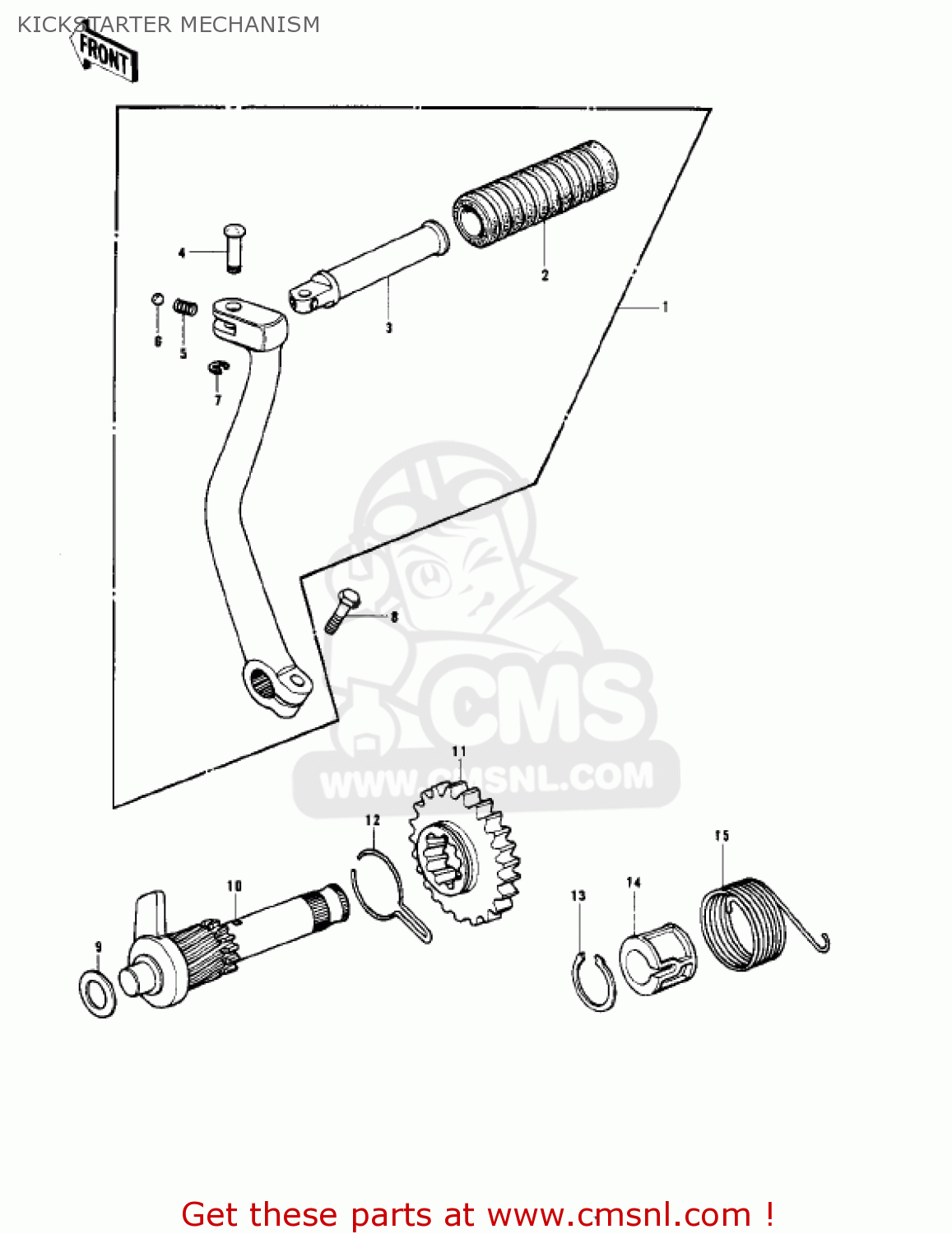

Kickstarter mechanism diagram KD175-A3 1978 CANADA
KICKSTARTER MECHANISM KD175-A3 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13064020
ref: 1
PEDAL ASSY,KICKSTARTE
€ 72.50
2
13063002
ref: 2
RUBBER-KICK PEDAL
€ 3.00
3
13060003
ref: 3
LEVER,KICK PEDAL
€ 12.50
4
92043088
ref: 4
PIN,KICK PEDAL
€ 2.00
5
92081049
ref: 5
SPRING,KICK LEVER
€ 2.50
6
600A1100
ref: 6
BALL-STEEL,11/32
€ 0.50
7
482K5000
ref: 7
CIRCLIP,5MM
€ 2.00
8
115G0825
ref: 8
BOLT-HEX,HEAD,8X25
€ 3.00
9
92022150
ref: 9
SHIM-KICK SHAFT,0.5T
€ 2.00
10
13245010
ref: 10
SHAFT,KICKSTARTER
€ 27.00
11
13068026
ref: 11
GEAR-KICKSTARTER
€ 23.00
12
13077002
ref: 12
HOLDER-KICK GEAR
€ 2.50
13
92033022
ref: 13
CIRCLIP
€ 6.50
14
13070010
ref: 14
GUIDE,KICK SPRING
€ 7.00
15
92082005
ref: 15
SPRING,KICKSTARTER
€ 13.50
