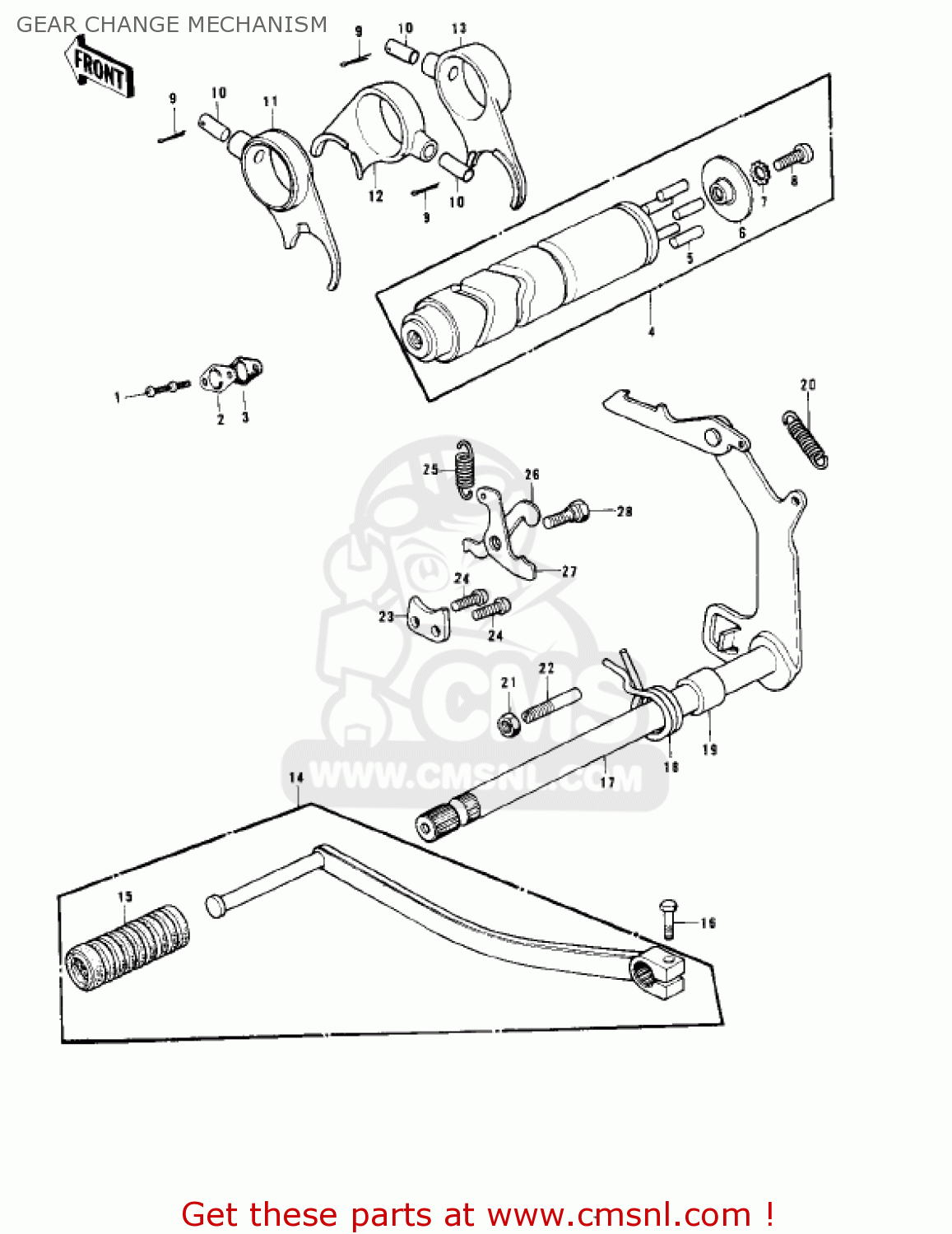

GEAR CHANGE MECHANISM

ref

part #

description

quantity

1

220B0610
ref: 1

SCREW-PAN HEAD,6X10

€ 2.00

2

92084004
ref: 2

PLUG,OIL PUMP HOLE

€ 2.00

3

13146002
ref: 3

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

4

13239002
ref: 4

DRUM ASSY-GEAR CHANGE

€ 125.00

5

92042014
ref: 5

PIN-GEAR CHANGE DRUM

€ 0.50

6

13142009
ref: 6

PLATE-CHANGE DRUM PIN

€ 6.00

7

464H0600
ref: 7

WASHER-LOCK,6MM

€ 0.50

8

220B0614
ref: 8

SCREW-PAN HEAD,6X14

€ 2.00

9

550D3020
ref: 9

PIN-COTTER,3.0X20

€ 2.00

10

92043005
ref: 10

PIN,DOWEL,8X15

€ 4.50

11

13140030
ref: 11

FORK-SELECTOR

€ 60.50

12

13140049
ref: 12

FORK-SELECTOR

€ 38.00

13

13140050
ref: 13

FORK-SELECTOR

€ 38.00

14

13156064
ref: 14

PEDAL,GEAR CHANGE

€ 87.00

15

13157004
ref: 15

RUBBER-CHANGE PEDAL

€ 4.00

16

112G0620
ref: 16

BOLT 6X20

€ 1.00

17

13161019
ref: 17

LEVER ASSY-GEAR CHNG

€ 50.00

18

920811129
ref: 18
KD175-A1

SPRING,TENTION

€ 6.50

18

920811129
ref: 18
KD175-A2/A3

SPRING,TENTION

€ 6.50

18

920811129
ref: 18
KD175-A4

SPRING,TENTION

€ 6.50

19

92027121
ref: 19

COLLAR

€ 5.50

20

921441720
ref: 20

SPRING,CHANGE LEVER

€ 3.00

21

312B0800
ref: 21

NUT,8MM

€ 0.50

22

920011401
ref: 22

BOLT,RETURN SPRING

€ 3.00

23

13169002
ref: 23

PLATE,CHANGE DRUM POS

€ 3.00

24

220B0614
ref: 24

SCREW-PAN HEAD,6X14

€ 2.00

25

92081091
ref: 25

SPRING-COIL

€ 3.50

26

13168017
ref: 26

LEVER-CHANGE DRUM,B

€ 4.00

27

13168021
ref: 27

LEVER-GEAR CHNG DRUM

€ 2.00

28

92011023
ref: 28

SCREW-PAN HEAD

€ 2.50
