SWING ARM/SHOCK ABSORBERS
KD125 1975 USA CANADA

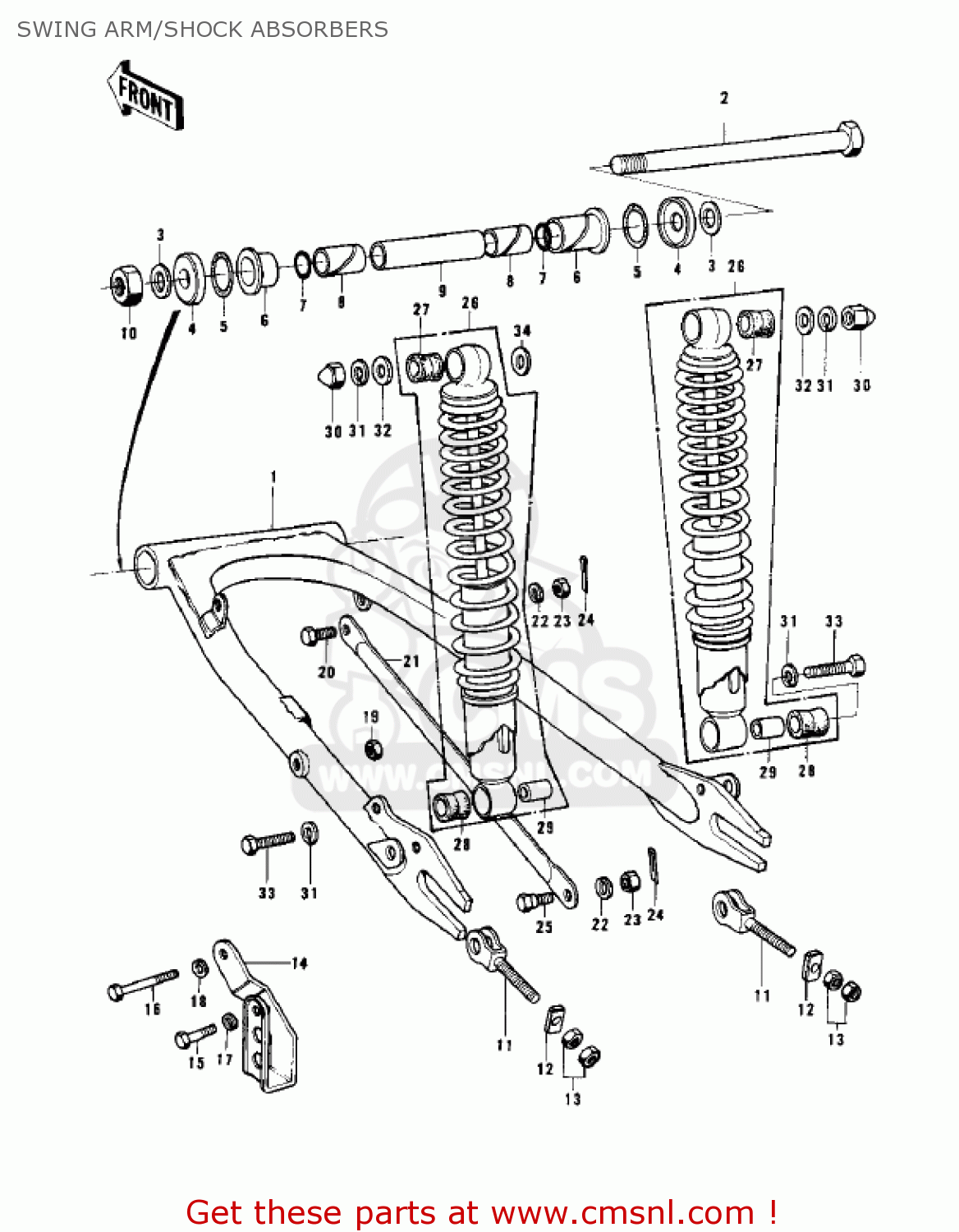

Swing arm/shock absorbers diagram KD125 1975 USA CANADA
SWING ARM/SHOCK ABSORBERS KD125 1975 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
33001074
ref: 1
KD125/A2
SWING ARM
€ 292.00
1
33001080
ref: 1
KD125-A3/A4/A5
ARM,SWING
€ 162.50
2
33032034
ref: 2
SHAFT-SWING ARM
€ 22.50
3
410B1200
ref: 3
WASHER-PLAIN-SMALL,12
€ 0.50
4
33035005
ref: 4
CAP,SWING ARM
€ 5.50
5
671B2530
ref: 5
O RING,30MM
€ 3.00
6
33033009
ref: 6
BUSHING,SWING ARM
€ 57.00
7
670B2016
ref: 7
KD125/A2
O RING,16MM
€ 1.00
7
92055001
ref: 7
KD125-A3/A4/A5
RING-O,16MM
€ 2.00
8
33034016
ref: 8
SLEEVE,12.1X22X39
€ 14.50
9
33036007
ref: 9
COLLAR,12.7X17.3X106
€ 6.00
10
92019009
ref: 10
NUT,LOCK,12MM
€ 4.50
11
33040057
ref: 11
KD125/A2
ADJUSTER,CHAIN
€ 17.00
11
33040073
ref: 11
KD125-A3/A4/A5
ADJUSTER, CHAIN
€ 13.00
12
33041002
ref: 12
KD125/A2
PLATE,CHAIN ADJUSTER
€ 9.50
12
33041005
ref: 12
KD125-A3/A4/A5
PLATE,CHAIN ADJUSTER
€ 6.00
13
311B0800
ref: 13
NUT,8MM
€ 0.50
14
55020016
ref: 14
GUARD,CHAIN
€ 14.50
15
115G0816
ref: 15
BOLT-HEX,HEAD 8X16
€ 0.50
16
920011254
ref: 16
BOLT,HEX HEAD,10X50
€ 2.50
17
461F0800
ref: 17
WASHER-SPRING,8MM
€ 0.50
18
461F1000
ref: 18
WASHER-SPRING,10MM
€ 0.50
19
314B1000
ref: 19
NUT,10MM
€ 0.50
20
92003143
ref: 20
BOLT,HEX HEAD,8X24
€ 2.50
21
43007039
ref: 21
TORQUE LINK,RR BRAKE
€ 9.00
22
461F0800
ref: 22
WASHER-SPRING,8MM
€ 0.50
23
320B0800
ref: 23
NUT,8MM
€ 1.50
24
550D2020
ref: 24
PIN-COTTER,2.0X20
€ 0.50
25
92003144
ref: 25
BOLT,RR TORQUE LINK
€ 4.00
26
45014113
ref: 26
KD125/A2/A3
SHOCKABSORBER,REAR
€ 171.50
26
450141017
ref: 26
KD125-A4/A5
SHOCK ABSORBER,REAR
€ 150.50
27
45017010
ref: 27
BUSH A-SHCK ABS RUBER
€ 9.00
28
920751020
ref: 28
DAMPER,SHOCKABSORBER
€ 3.00
29
45016003
ref: 29
COLLAR,SHOCKABSORBER
€ 12.50
30
92020003
ref: 30
NUT-SHOCK ABSORBER
€ 3.50
31
461F1000
ref: 31
WASHER-SPRING,10MM
€ 0.50
32
92022044
ref: 32
WASHER,10.5X26X2.3
€ 2.50
33
113N1035
ref: 33
BOLT-HEX HEAD,10X35
€ 5.50
34
410B1200
ref: 34
WASHER-PLAIN-SMALL,12
€ 0.50
