OPTIONAL PARTS

KD125 1975 USA CANADA

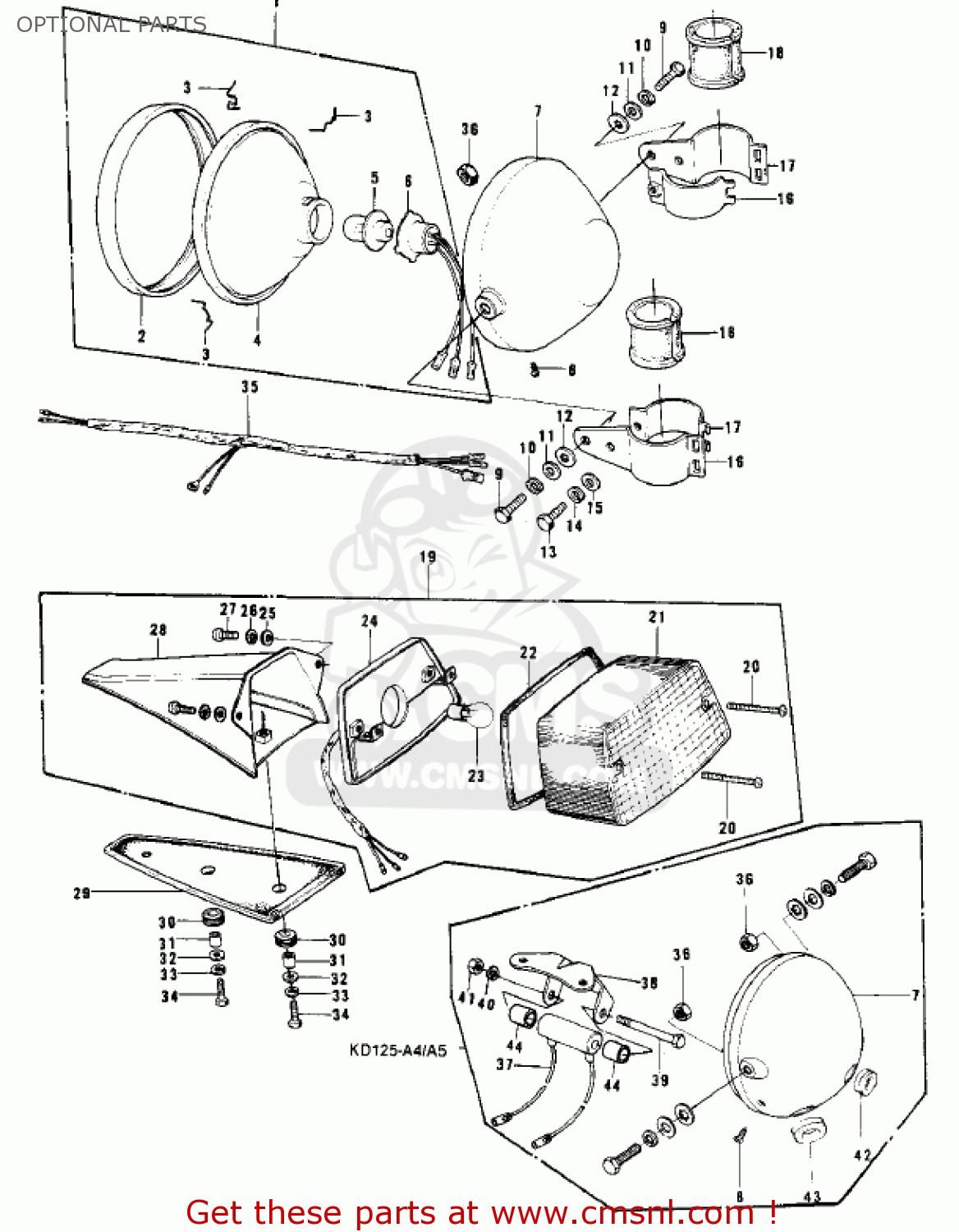

Optional parts diagram KD125 1975 USA CANADA

OPTIONAL PARTS KD125 1975 USA CANADA
OPTIONAL PARTS KD125 1975 USA CANADA
OPTIONAL PARTS KD125 1975 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
23004023
ref: 1
LAMP-HEAD
€ 71.00

2
23006043
ref: 2
RIM,HEAD LAMP
23006043
€ 42.00

3
23009014
ref: 3

KD125/A2/A3
SPRING,HEAD LAMP LENS
23009014
€ 3.00

3
23009014
ref: 3

KD125-A4/A5
SPRING,HEAD LAMP LENS
23009014
€ 3.00

4
23007010
ref: 4
LENS-COMP
23007010
€ 40.00

5
92069031
ref: 5
BULB 6V 25/25W
92069031
€ 6.50

6
23008009
ref: 6
SOCKET-ASSY,HEAD LAMP
23008009
€ 11.50

7
23005100621
ref: 7

KD125/A2/A3
BODY-COMP-HEAD LAMP,F
23005100621
€ 49.50

7
23005100621
ref: 7

KD125-A4/A5
BODY-COMP-HEAD LAMP,F
23005100621
€ 49.50

8
222E0508A
ref: 8

KD125/A2/A3
SCREW-OVL CNTSNK,5X8
€ 2.00

8
23019025
ref: 8

KD125-A4/A5
SCREW,PAN HEAD,5X14
23019025
€ 1.50

9
92007045
ref: 9
BOLT, HEX HEAD, 10X25
€ 5.50

10
461F1000
ref: 10
WASHER-SPRING,10MM
461F1000
€ 0.50

11
411B1000
ref: 11
WASHER-PLAIN,10MM
411B1000
€ 0.50

12
463H1000
ref: 12
WASHER-LOCK,10MM
463H1000
€ 0.50

13
92007003
ref: 13
BOLT,HEADLAMP MOUNT
92007003
€ 11.00

14
461F0800
ref: 14
WASHER-SPRING,8MM
461F0800
€ 0.50

15
411B0800
ref: 15
WASHER-PLAIN,8MM
411B0800
€ 0.50

16
23064018
ref: 16
HEADLAMP BRACKET
23064018
€ 66.00

17
23064019
ref: 17
HEADLAMP BRACKET
23064019
€ 66.00

18
92075064
ref: 18
DAMPER RUBBER
92075064
€ 5.00

19
230240843G
ref: 19
LAMP ASSY, TAIL,WHITE
230240843G
€ 125.50

20
220E0325
ref: 20
SCREW-PAN-CROS
220E0325
€ 2.00

21
23026040
ref: 21
LENS,TAIL LAMP
23026040
€ 27.00

22
23028020
ref: 22
GASKET,TAIL LAMP LENS (NAS)
23028020
€ 6.00

23
92069028
ref: 23
BULB 6V 17/5.3W
92069028
€ 4.00

24
23027044
ref: 24
BODY-COMP-TAIL LAMP
€ 49.50

25
411B0500
ref: 25
WASHER-PLAIN,5MM
411B0500
€ 0.50

26
461F0500
ref: 26
WASHER-SPRING,5MM
461F0500
€ 0.50

27
220E0510A
ref: 27
SCREW-PAN HEAD,5X10
€ 1.50

28
230360423G
ref: 28
BKT,LICENSE PLT,WHITE
€ 47.00

29
23066018
ref: 29
DAMPER RUBBER
23066018
€ 4.00

30
92075121
ref: 30
DAMPER,FENDER
92075121
€ 2.50

31
92027120
ref: 31
COLLAR
92027120
€ 3.00

32
92022228
ref: 32
WASHER-PLAIN,7MM
92022228
€ 2.50

33
461F0600
ref: 33
WASHER-SPRING,6MM
461F0600
€ 0.50

34
112B0622
ref: 34
BOLT, 6X22
€ 2.00

35
26001137
ref: 35
WIRING HARNESS,MAIN
€ 125.00

36
314B1000
ref: 36

KD125/A2/A3
NUT,10MM
314B1000
€ 0.50

36
92016027
ref: 36

KD125-A4/A5
NUT,10MM
€ 2.00

37
280181007
ref: 37

KD125-A4/A5
RESISTOR
€ 29.00

38
110341142
ref: 38

KD125-A4/A5
RESISTOR BRACKET
€ 12.50

39
114B08110
ref: 39

KD125-A4/A5
BOLT,8X110
€ 1.00

40
461F0800
ref: 40

KD125-A4/A5
WASHER-SPRING,8MM
461F0800
€ 0.50

41
311B0800
ref: 41

KD125-A4/A5
NUT,8MM
311B0800
€ 0.50

42
23023007
ref: 42

KD125-A4/A5
GROMMET
23023007
€ 2.00

43
23023011
ref: 43

KD125-A4/A5
GROMMET
23023011
€ 4.50

44
920261017
ref: 44

KD125-A4/A5
RESISTOR FITTING SPACER
920261017
€ 5.00
