FRAME/FRAME FITTINGS

KD125 1975 USA CANADA

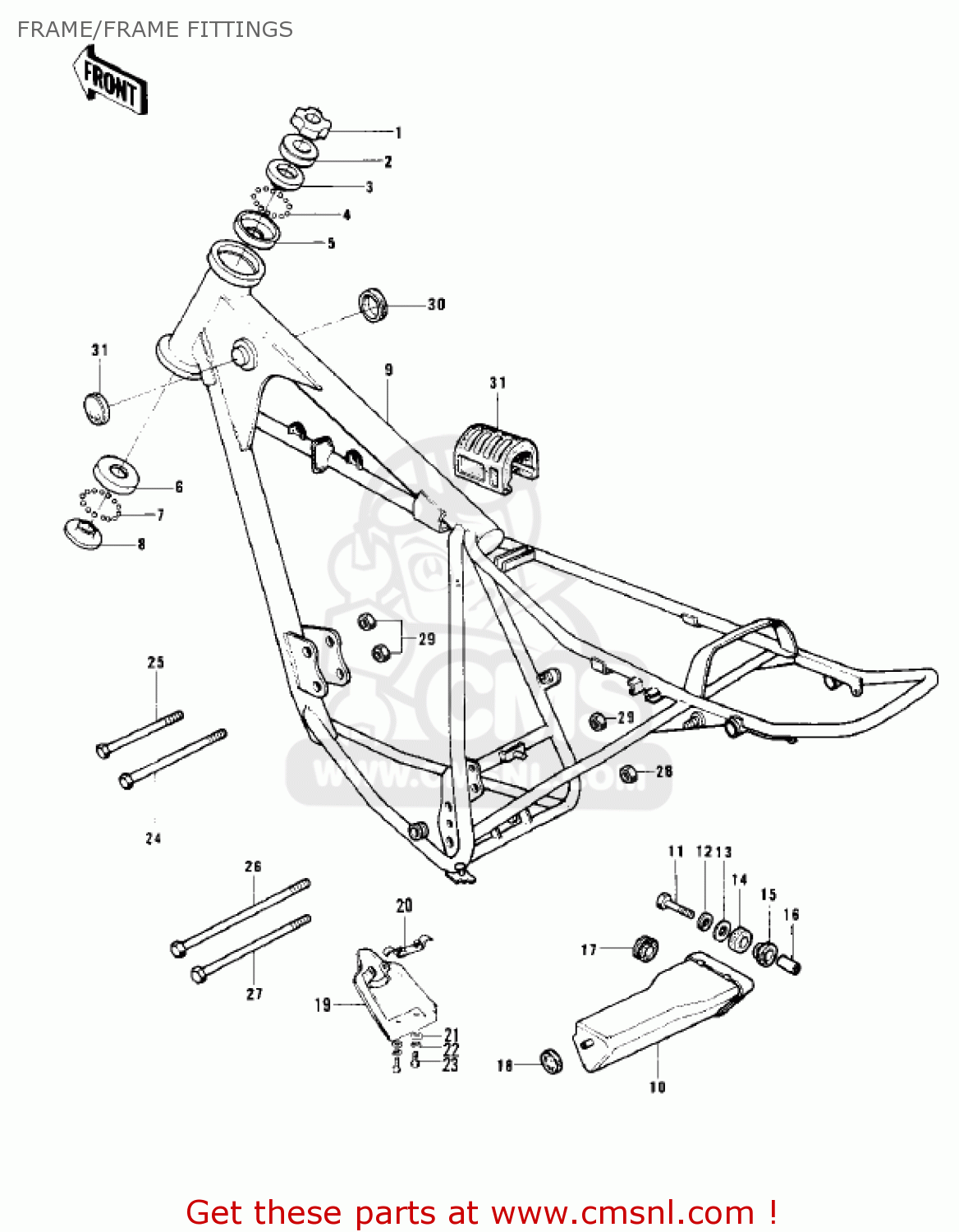

Frame/frame fittings diagram KD125 1975 USA CANADA

FRAME/FRAME FITTINGS KD125 1975 USA CANADA
FRAME/FRAME FITTINGS KD125 1975 USA CANADA
FRAME/FRAME FITTINGS KD125 1975 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
92090022
ref: 1
NUT,STEERING LOCK,25M
92090022
€ 17.50

2
46098012
ref: 2
CAP,STEERING STEM
46098012
€ 4.50

3
92047014
ref: 3
RACE,STEERING STEM BE
92047014
€ 11.50

4
600A0600
ref: 4
BALL-STEEL,3/16
600A0600
€ 0.50

5
92048009
ref: 5
RACE,STRG STM
92048009
€ 13.00

6
92047010
ref: 6
CONE-STERNG BERG LOW
92047010
€ 9.00

7
600A0800
ref: 7
BALL-STEEL,1/4
600A0800
€ 0.50

8
92048005
ref: 8
RACE-STEERING BEARING
92048005
€ 10.50

9
32002099
ref: 9
FRAME
€ 983.00

10
32098022
ref: 10
CASE,TOOL
32098022
€ 14.00

11
112G0625
ref: 11
BOLT-UPSET,6X25
112G0625
€ 3.50

12
461F0600
ref: 12
WASHER-SPRING,6MM
461F0600
€ 0.50

13
92022228
ref: 13
WASHER-PLAIN,7MM
92022228
€ 2.50

14
92075175
ref: 14
DAMPER,FEMALE
92075175
€ 2.50

15
92075174
ref: 15
DAMPER,MALE
92075174
€ 2.50

16
92027162
ref: 16
COLLAR-REAR FENDER
92027162
€ 4.00

17
92075150
ref: 17
DAMPER,OIL TANK
92075150
€ 2.50

18
92075107
ref: 18
DAMPER
92075107
€ 2.00

19
55011020
ref: 19
GUARD,ENGINE
€ 29.00

20
55016008
ref: 20

KD125-A4/A5
BRACKET,ENGINE GUARD
€ 5.00

21
92022125
ref: 21

KD125-A4/A5
WASHER,6.5X20X1.6
92022125
€ 1.00

22
461F0600
ref: 22

KD125-A4/A5
WASHER-SPRING,6MM
461F0600
€ 0.50

23
112G0616
ref: 23

KD125-A4/A5
BOLT UPSET,6X16
112G0616
€ 1.00

24
110B0865
ref: 24

KD125/A2/A3
BOLT,HEX HEAD,8X65
€ 1.00

24
920011583
ref: 24

KD125-A4/A5
BOLT,FLANGED,8X70
920011583
€ 5.50

25
110B0865
ref: 25
BOLT,HEX HEAD,8X65
€ 1.00

26
920011249
ref: 26
BOLT,HEX HEAD,10X130
920011249
€ 5.00

26
920011249
ref: 26
BOLT,HEX HEAD,10X130
920011249
€ 5.00

27
920011246
ref: 27

KD125
BOLT,HEX HEAD,10X117
920011246
€ 6.50

27
920011246
ref: 27

KD125
BOLT,HEX HEAD,10X117
920011246
€ 6.50

27
920011603
ref: 27

KD125-A2/A3/A4/A5
BOLT,FLANGED,10X115
920011603
€ 6.50

28
920151429
ref: 28
NUT,10MM
920151429
€ 4.00

29
92017013
ref: 29
NUT,LOCK,8MM
92017013
€ 5.00

30
92075101
ref: 30
DAMPER RUBBER-FL TANK
92075101
€ 3.50

31
92075215
ref: 31

KD125
DAMPER,FUEL TANK
92075215
€ 9.00

31
92075284
ref: 31

KD125-A2/A3/A4/A5
DAMPER,FUEL TANK
92075284
€ 11.00
