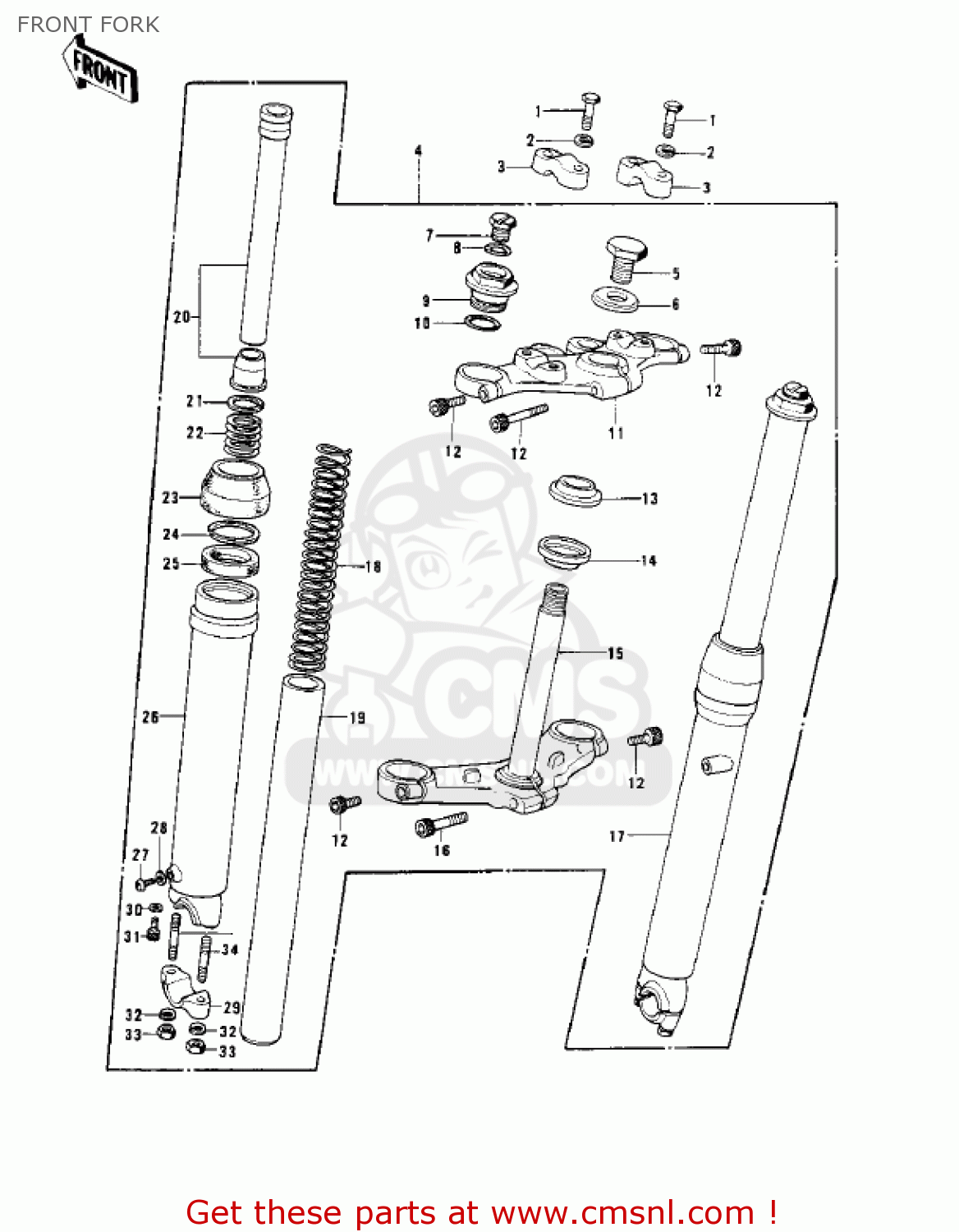

FRONT FORK

ref

part #

description

quantity

1

920011405
ref: 1

BOLT,8X38

€ 9.00

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

46012013
ref: 3
KD125

HANDLEBAR HOLDER

€ 23.50

3

46012014
ref: 3
KD125-A2/A3/A4/A5

HOLDER-HANDLE

€ 15.50

4

44001155
ref: 4

FRONT FORK

€ 1,463.50

5

44041072
ref: 5

BOLT,STEERING STEM

€ 12.50

6

44043056
ref: 6

WASHER,STEERING STEM

€ 9.00

7

44041069
ref: 7

BOLT,HEX HEAD,12MM

€ 3.00

8

44045048
ref: 8

O RING

€ 1.50

9

44032011
ref: 9

BOLT,FORK TOP

€ 20.50

10

44046021
ref: 10

'O' RING,FORK TOP

€ 1.50

11

44039070
ref: 11

HEAD,STEERING STEM

€ 73.50

12

44041070
ref: 12

BOLT,HEX HEAD,8X34

€ 3.50

13

92047010
ref: 13

CONE-STERNG BERG LOW

€ 9.50

14

44010027
ref: 14

SEAL,STEERING STEM

€ 7.50

15

440371030
ref: 15

STEM,STEERING

€ 114.50

16

44041073
ref: 16

BOLT,SPECIAL,10X42

€ 6.00

17

440061045
ref: 17

TUBE,R.H FORK OUTER

€ 143.00

18

44026053
ref: 18

SPRING,FORK

€ 22.50

19

44013047
ref: 19

TUBE,FORK INNER

€ 75.50

20

44022018
ref: 20
KD125

CYLINDER,FORK

€ 113.00

20

44022033
ref: 20
KD125-A2/A3/A4/A5

CYLINDER,FORK

€ 29.50

21

44025002
ref: 21

RING

€ 3.00

22

44026054
ref: 22

SPRING,FORK CYLINDER

€ 3.00

23

44010026
ref: 23

DUST SHIELD,FORK

€ 9.50

24

481J4500
ref: 24
KD125

CIRCLIP,45MM

€ 1.00

24

44044020
ref: 24
KD125-A2/A3/A4/A5

CIRCLIP,45MM

€ 9.00

25

44009018
ref: 25

OIL SEAL,FORK

€ 20.50

26

440051045
ref: 26

TUBE,L.H FORK OUTER

€ 143.00

27

112B0608
ref: 27

BOLT-HEX,HEAD,6X8

€ 0.50

28

44045047
ref: 28

GASKET,DRAIN PLUG (NAS)

€ 5.50

29

44063009
ref: 29

HOLDER-FRONT AXLE

€ 21.00

30

44045051
ref: 30

GASKET,FORK CYLINDER (NAS)

€ 3.50

31

44041078
ref: 31

BOLT, FORK CYLINDER

€ 6.00

32

461F0800
ref: 32

WASHER-SPRING,8MM

€ 0.50

33

312G0800
ref: 33
KD125

NUT,8MM

€ 2.00

33

920151124
ref: 33
KD125-A2/A3/A4/A5

NUT,LOCK,8MM

€ 3.50

34

920041009
ref: 34
KD125A2/A3

STUD, 8X35

€ 4.00

34

920041009
ref: 34
KD125-A4/A5

STUD, 8X35

€ 4.00
