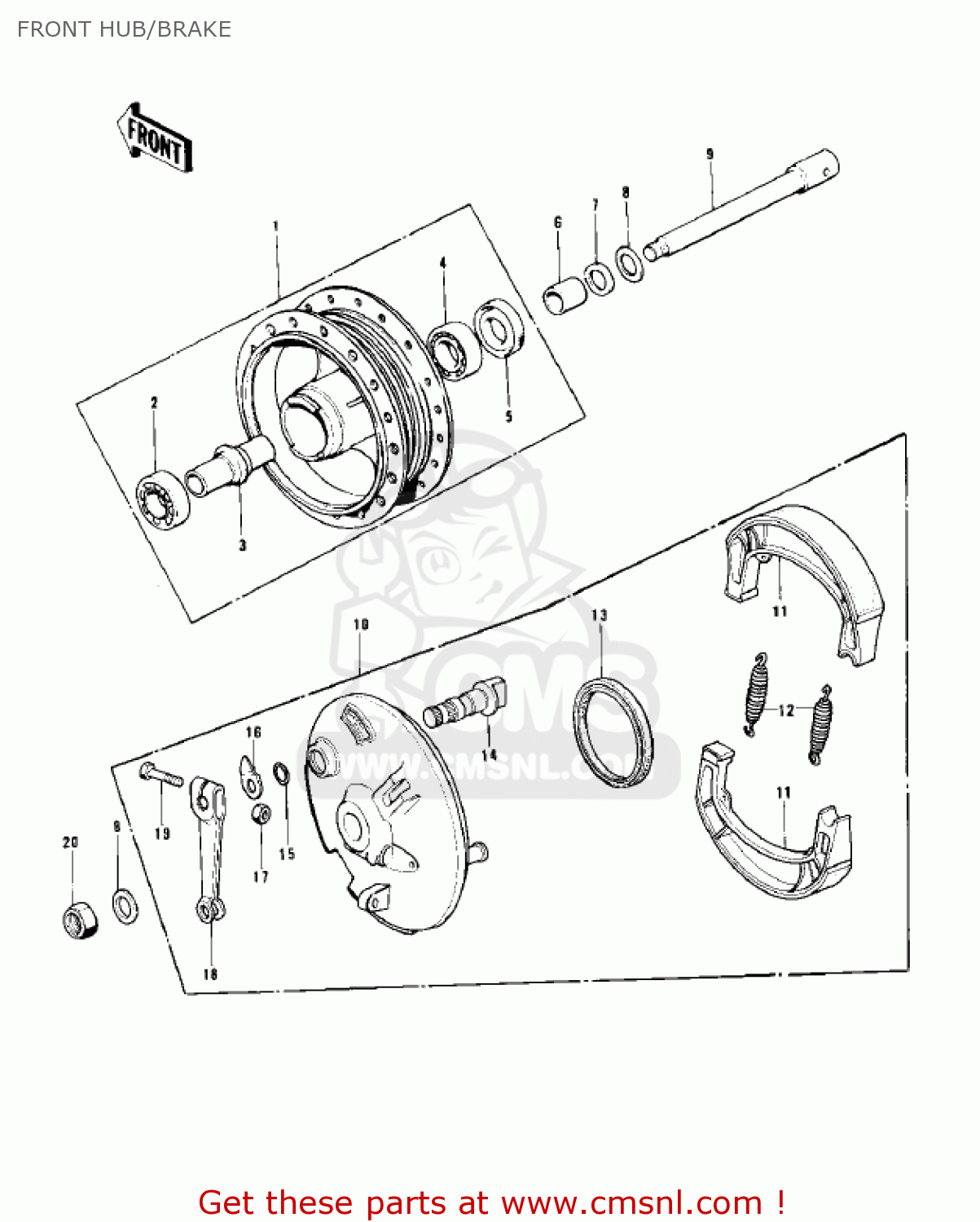

FRONT HUB/BRAKE

ref

part #

description

quantity

1

410341040
ref: 1

DRUM-ASSY,FR,BUFF FIN

€ 203.50

2

601B6300Z
ref: 2

BEARING-BALL,#6300ZC3

€ 18.50

3

41039002
ref: 3

COLLAR,L=51

€ 6.00

4

601B6200
ref: 4

BEARING-BALL,#6200C3

€ 11.50

5

92050063
ref: 5

OIL SEAL,TC17317

€ 10.00

6

41069026
ref: 6

COLLAR,L=13

€ 9.00

7

41042002
ref: 7
KD100-M1/M2/M3

DUST SHIELD-FRNT DRUM

€ 2.50

8

411B1000
ref: 8

WASHER-PLAIN,10MM

€ 0.50

9

41068039
ref: 9

AXLE-FRONT

€ 20.00

10

4103506980
ref: 10

FRONT BRAKE PANEL ASSEMBLY,BUFF

€ 365.50

11

410481085
ref: 11

SHOE-BRAKE (NAS)

€ 13.00

12

920811766
ref: 12

SPRING,BRAKE SHOE

€ 5.50

13

92050002
ref: 13

OIL SEAL-BRAKE PANEL

€ 9.00

14

41050018
ref: 14

CAM-BRAKE

€ 18.00

15

92055004
ref: 15

RING-O,BRAKE CAM

€ 3.00

16

41085013
ref: 16

INDICATOR,BRAKE SHOE

€ 10.00

17

41072007
ref: 17

NUT,6MM

€ 2.50

18

41053005
ref: 18

LEVER-BRAKE CAM

€ 11.50

19

112G0630
ref: 19

BOLT-UPSET

€ 1.00

20

42045005
ref: 20

NUT,10MM

€ 5.00
