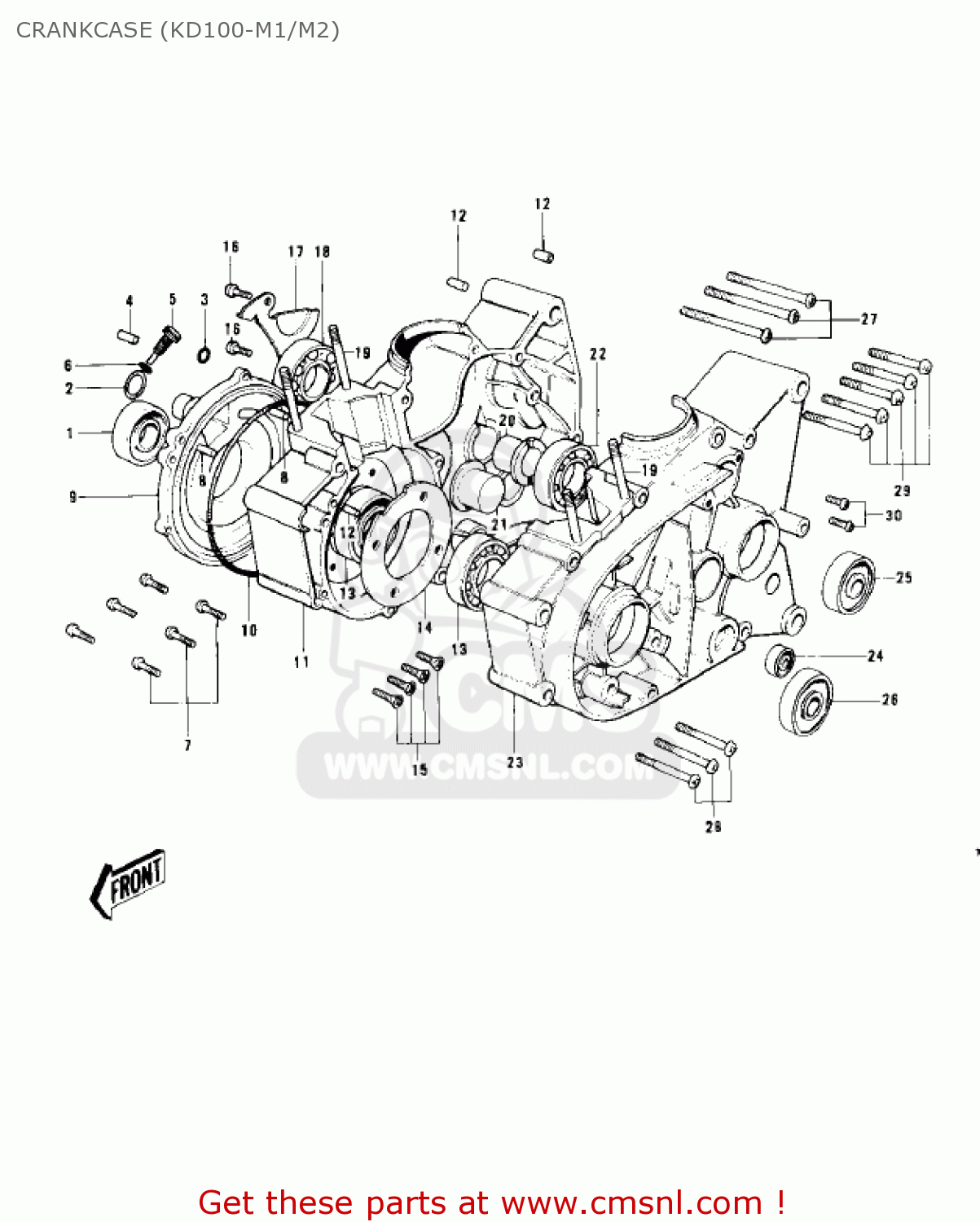

CRANKCASE (KD100-M1/M2)

ref

part #

description

quantity

1

653B254007
ref: 1

OIL SEAL,TB25407

€ 12.00

2

670B3026
ref: 2

O RING,26MM

€ 3.00

3

92055029
ref: 3

RING-O,7.8X3.5

€ 2.50

4

92042017
ref: 4

PIN,DOWEL,8X16

€ 4.00

5

92062004
ref: 5
NOT REQUIRED FOR 140

NOZZLE-OIL INJECTION

€ 7.00

6

92055011
ref: 6
NOT REQUIRED FOR 140

'O' RING 5MM

€ 4.00

7

220B0620
ref: 7

SCREW-PAN HEAD,6X20

€ 2.50

8

610A0512
ref: 8

ROLLER,5X12

€ 3.00

9

14019032
ref: 9
KD100-M1

COVER,ROTARY DISC VAL

€ 70.50

9

14019056
ref: 9
KD100-M2

COVER,ROTARY DISC VAL

€ 52.00

10

92055010
ref: 10

RING-O,100MM

€ 6.00

11

14003063
ref: 11

CRANKCASE,R.H

€ 161.00

12

551A0816
ref: 12

PIN-DOWEL,8X16

€ 0.50

13

601B6204
ref: 13

BEARING-BALL,#6204C3

€ 8.00

14

14014017
ref: 14

PLATE-POSITION

€ 3.50

15

221B0616
ref: 15

SCREW-CNTSNK HD,6X16

€ 0.50

16

220B0612
ref: 16

SCREW-PAN HEAD,6X12

€ 1.00

17

14014008
ref: 17

PLATE-POSITION

€ 4.00

18

601B6005
ref: 18

BEARING-BALL,#6005C3

€ 11.50

19

172G06115
ref: 19

STUD 6X115

€ 2.00

20

92028069
ref: 20

BUSH-OUTPUT SHAFT

€ 25.00

21

92028025
ref: 21

BUSHING,L=23.5

€ 28.00

22

601B6004
ref: 22

BEARING-BALL,#6004C3

€ 10.50

23

140021072
ref: 23

CRANKCASE,LH

€ 447.00

24

92049004
ref: 24

OIL SEAL SB12205

€ 6.00

25

92050013
ref: 25

OIL SEAL SC25376

€ 9.50

26

920491240
ref: 26

SEAL-OIL

€ 10.50

27

220B0665
ref: 27

SCREW-PAN HEAD,6X65

€ 2.50

28

220B0660
ref: 28

SCREW-PAN HEAD,6X60

€ 2.50

29

220B0640
ref: 29

SCREW-PAN HEAD,6X40

€ 2.00

30

220B0625
ref: 30

SCREW-PAN HEAD,6X25

€ 1.50
