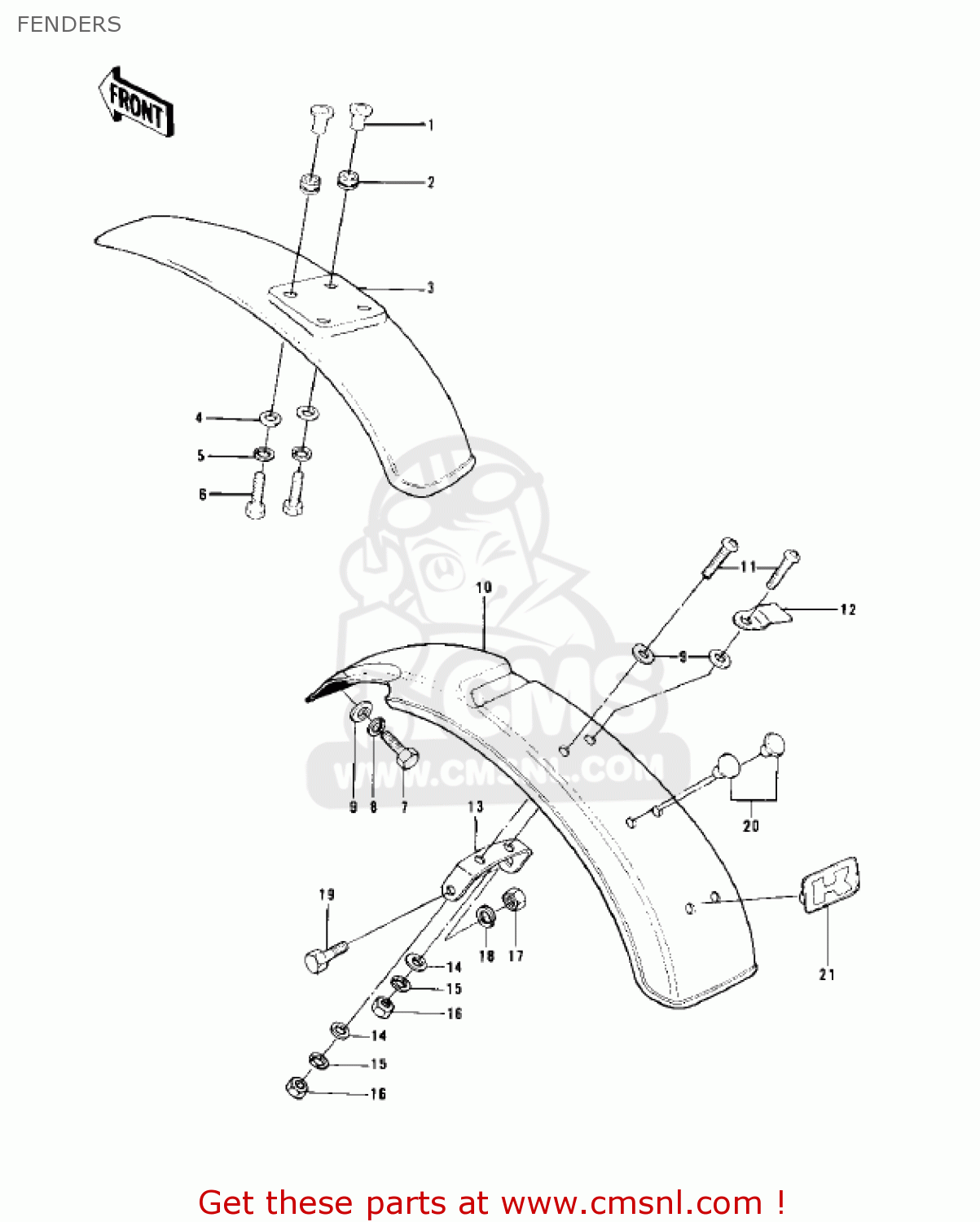

FENDERS

ref

part #

description

quantity

1

92027153
ref: 1

COLLAR

€ 4.00

2

92075103
ref: 2

DAMPER

€ 2.50

3

3500408010
ref: 3
KD100-M1

FENDER,FRONT,BLACK

€ 28.00

3

350041096Z
ref: 3
KD100-M2

FRONT FENDER,FLAT BLACK

€ 112.00

3

350041096V
ref: 3
KD100-M3

FENDER,FRONT,WHITE

€ 24.50

3

350041096M
ref: 3
KD100-M4

FRONT FENDER,TANGERINE

€ 76.00

3

350041096L
ref: 3
KD100-M4

FENDER,FRONT,F.RED

€ 58.00

4

92022125
ref: 4

WASHER,6.5X20X1.6

€ 1.00

5

461F0600
ref: 5

WASHER-SPRING,6MM

€ 0.50

6

112G0618
ref: 6

BOLT-UPSET

€ 0.50

7

112B0614
ref: 7

BOLT-UPSET 6X14

€ 2.50

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

92022125
ref: 9

WASHER,6.5X20X1.6

€ 1.00

10

3502209410
ref: 10
KD100-M1

FENDER,REAR,BLACK

€ 18.00

10

350221626Z
ref: 10
KD100-M2

FENDER, REAR, BLACK

€ 18.00

10

350221626V
ref: 10
KD100-M3

FENDER,REAR,WHITE

€ 47.00

10

350221626M
ref: 10
KD100-M4

REAR FENDER,TANGERINE

€ 67.50

10

350221626L
ref: 10
KD100-M4

FENDER,REAR,F.RED

€ 41.50

11

220B0616
ref: 11

SCREW-PAN HEAD,6X16

€ 2.50

12

92037020
ref: 12

CLAMP-CABLE

€ 1.50

13

35025025
ref: 13

BRACKET,REAR FENDER

€ 7.50

14

411B0600
ref: 14

WASHER-PLAIN,6MM

€ 0.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

311B0600
ref: 16

NUT,6MM

€ 0.50

17

315B1200
ref: 17

NUT,12MM

€ 0.50

18

461F1200
ref: 18

WASHER-SPRING,12MM

€ 0.50

19

113B1226A
ref: 19

BOLT,HEX HEAD,12X26

€ 6.50

20

92074034
ref: 20

REAR FENDER PLUG,RUBBER

€ 9.00

21

92074033
ref: 21

REAR FENDER PLUG,RUBBER

€ 9.50
