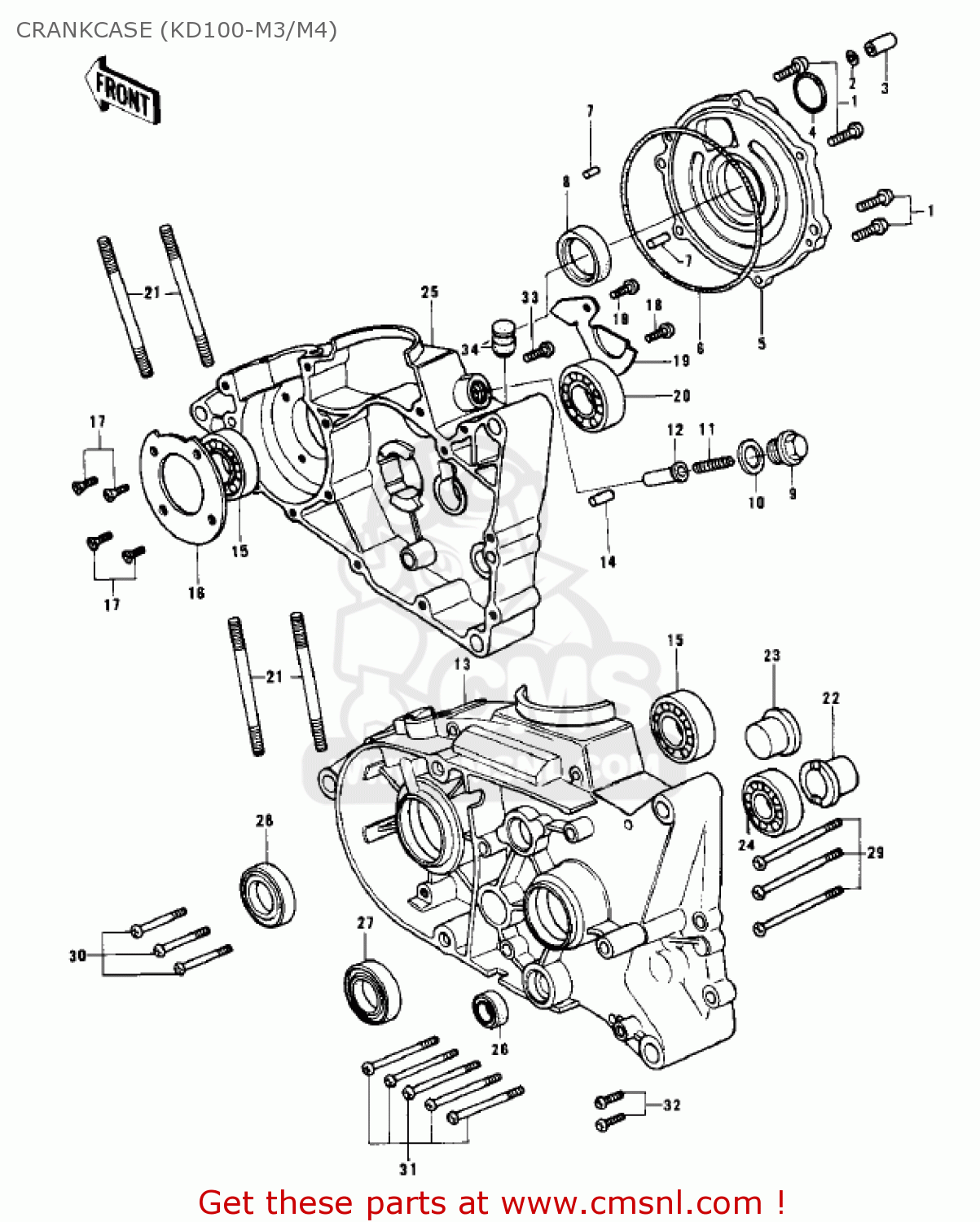

CRANKCASE (KD100-M3/M4)

ref

part #

description

quantity

1

220B0620
ref: 1

SCREW-PAN HEAD,6X20

€ 2.50

2

92055029
ref: 2

RING-O,7.8X3.5

€ 2.50

3

92042017
ref: 3

PIN,DOWEL,8X16

€ 4.00

4

670B3026
ref: 4

O RING,26MM

€ 3.00

5

14019056
ref: 5

COVER,ROTARY DISC VAL

€ 52.00

6

92055010
ref: 6

RING-O,100MM

€ 6.00

7

610A0512
ref: 7

ROLLER,5X12

€ 3.00

8

920491250
ref: 8

SEAL-OIL

€ 12.00

9

920661004
ref: 9

PLUG, NEUTRAL

€ 4.00

10

110091003
ref: 10

GASKET, NEUTRAL POSIT (MCA)

€ 2.50

11

920811050
ref: 11

SPRING, NEUTRAL PST

€ 2.00

12

92043065
ref: 12

PIN-BRAKE ROD

€ 3.50

13

140021072
ref: 13

CRANKCASE,LH

€ 447.00

14

551A0816
ref: 14

PIN-DOWEL,8X16

€ 0.50

15

601B6204
ref: 15

BEARING-BALL,#6204C3

€ 8.00

16

14014017
ref: 16

PLATE-POSITION

€ 3.50

17

221B0616
ref: 17

SCREW-CNTSNK HD,6X16

€ 0.50

18

220B0612
ref: 18

SCREW-PAN HEAD,6X12

€ 1.00

19

14014008
ref: 19

PLATE-POSITION

€ 4.00

20

601B6005
ref: 20

BEARING-BALL,#6005C3

€ 11.50

21

172G08115
ref: 21

STUD,8X115

€ 8.00

22

92028069
ref: 22

BUSH-OUTPUT SHAFT

€ 25.00

23

92028025
ref: 23

BUSHING,L=23.5

€ 28.00

24

601B6004
ref: 24

BEARING-BALL,#6004C3

€ 10.50

25

140021001
ref: 25

CRANKCASE, R.H

€ 57.00

25

140021017
ref: 25

CRANKCASE,R.H

€ 71.00

26

92049004
ref: 26

OIL SEAL SB12205

€ 6.00

27

92050013
ref: 27

OIL SEAL SC25376

€ 9.50

28

920491240
ref: 28

SEAL-OIL

€ 10.50

29

220B0665
ref: 29

SCREW-PAN HEAD,6X65

€ 2.50

30

220B0660
ref: 30

SCREW-PAN HEAD,6X60

€ 2.50

31

220B0640
ref: 31

SCREW-PAN HEAD,6X40

€ 2.00

32

220B0625
ref: 32

SCREW-PAN HEAD,6X25

€ 1.50

33

220B0620
ref: 33

SCREW-PAN HEAD,6X20

€ 2.50

34

92074035
ref: 34

PLUG,15X19

€ 4.50
