METERS/IGNITION SWITCH
F11A 1974 USA

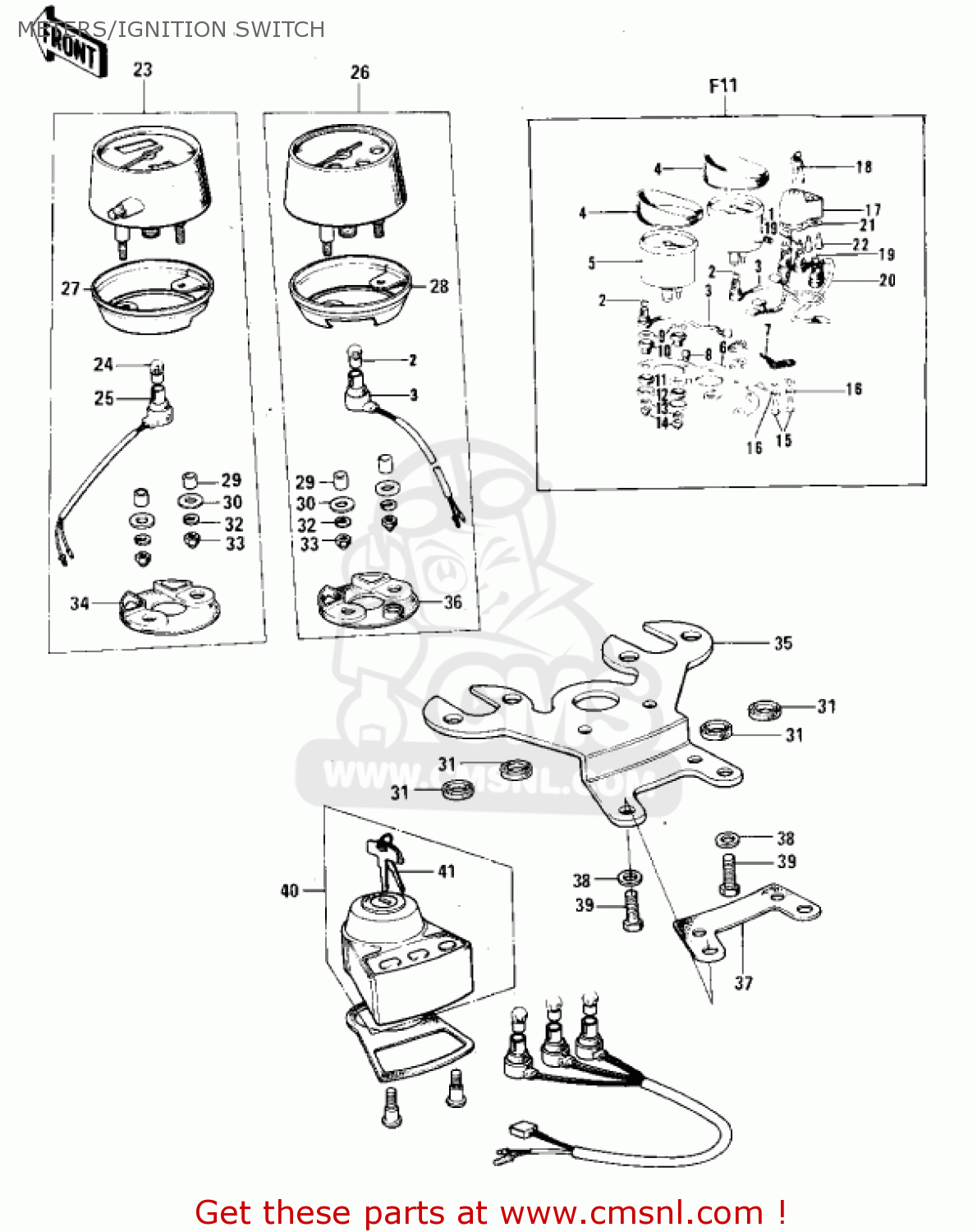

Meters/ignition switch diagram F11A 1974 USA
METERS/IGNITION SWITCH F11A 1974 USA
×
prices are in EUR
ref
part #
description
quantity
?
25001055
ref: ?
Includes items 1 - 4
SPEEDOMETER ASSY,MPH
€ 124.00
2
92069053
ref: 2
BULB 6V 3W
€ 3.00
3
25011024
ref: 3
SOCKET-SPEEDOMETER
€ 15.00
4
25012003
ref: 4
COVER
€ 23.50
?
25015021
ref: ?
Includes items 2 - 5
TACHOMETER ASSY
€ 99.50
6
25008022
ref: 6
BRACKET-METER
€ 29.00
7
25019011
ref: 7
SHOCK DAMPER
€ 1.50
8
92075035
ref: 8
DAMPER
€ 3.00
9
920221561
ref: 9
WASHER,8.5X20X1.6
€ 2.50
10
92075143
ref: 10
DAMPER RUBBER
€ 1.00
11
92075066
ref: 11
DAMPER RUBBER
€ 1.00
12
92022285
ref: 12
WASHER,5.2X18X1.2
€ 4.50
13
461F0500
ref: 13
WASHER-SPRING,5MM
€ 0.50
14
322N0500
ref: 14
NUT-CAP,5MM
€ 2.00
15
92001116
ref: 15
BOLT-HEX HEAD
€ 1.50
16
410B1000
ref: 16
WASHER-PLAIN-SMALL,10
€ 0.50
?
27005070
ref: ?
Includes items 17 an
SWITCH ASSY,IGNITION
€ 89.50
18
2700804775
ref: 18
F11
KEY SET,#175
€ 10.00
18
2700804776
ref: 18
KEY SET,#176
€ 10.00
18
2700804777
ref: 18
KEY SET,#177
€ 10.00
18
2700804778
ref: 18
KEY SET,#178
€ 10.00
18
2700804779
ref: 18
KEY SET,#179
€ 10.50
18
2700804780
ref: 18
KEY SET,#180
€ 6.00
19
92069024
ref: 19
BULB 6V 1.5W
€ 3.00
20
27024003
ref: 20
SOCKET-IGNITION SW
€ 16.00
21
27025001
ref: 21
DAMPER RUBBER-SWITCH
€ 4.00
22
92011026
ref: 22
SCREW-PAN HEAD,6MM
€ 3.00
23
25005098
ref: 23
SPEEDOMETER ASSY,MPH
€ 194.50
24
92069053
ref: 24
BULB 6V 3W
€ 3.00
25
25010016
ref: 25
SOCKET,METER
€ 8.00
26
25016025
ref: 26
TACHOMETER ASSY
€ 153.50
27
25012017
ref: 27
COVER,SPEEDOMETER
€ 23.00
28
25012018
ref: 28
COVER,TACHOMETER
€ 22.50
29
25021004
ref: 29
COLLAR,5.5X7.5X12.2
€ 3.00
30
92022285
ref: 30
WASHER,5.2X18X1.2
€ 4.50
31
25019019
ref: 31
DAMPER,METER
€ 4.50
32
461F0500
ref: 32
WASHER-SPRING,5MM
€ 0.50
33
322N0500
ref: 33
NUT-CAP,5MM
€ 2.00
34
25019018
ref: 34
DAMPER,SPEEDOMETER
€ 7.00
35
25008035
ref: 35
BRACKET,METER
€ 16.00
36
25019020
ref: 36
DAMPER RUBBER,METER
€ 5.50
37
25019011
ref: 37
SHOCK DAMPER
€ 1.50
38
410B1000
ref: 38
WASHER-PLAIN-SMALL,10
€ 0.50
39
92001116
ref: 39
BOLT-HEX HEAD
€ 1.50
40
27005070
ref: 40
SWITCH ASSY,IGNITION
€ 89.50
41
2700806321
ref: 41
F11A/B
KEY SET,#421
€ 5.50
41
2700806322
ref: 41
KEY SET,#422
€ 14.00
41
2700806323
ref: 41
KEY SET,#423
€ 14.00
41
2700806324
ref: 41
KEY SET,#424
€ 14.00
41
2700806325
ref: 41
KEY SET,#425
€ 9.00
41
2700806326
ref: 41
KEY SET,#426
€ 14.00
41
2700806327
ref: 41
KEY SET,#427
€ 14.00
41
2700806328
ref: 41
KEY SET,#428
€ 9.00
41
2700806329
ref: 41
KEY SET,#429
€ 9.00
41
2700806330
ref: 41
KEY SET,#430
€ 7.00
42
270081024
ref: 42
KEY-LOCK,BLANK
€ 14.00
42
270081025
ref: 42
KEY-LOCK,BLANK
€ 14.00
42
270081026
ref: 42
KEY-LOCK,BLANK
€ 10.50
42
270081027
ref: 42
KEY-LOCK,BLANK
€ 10.50
