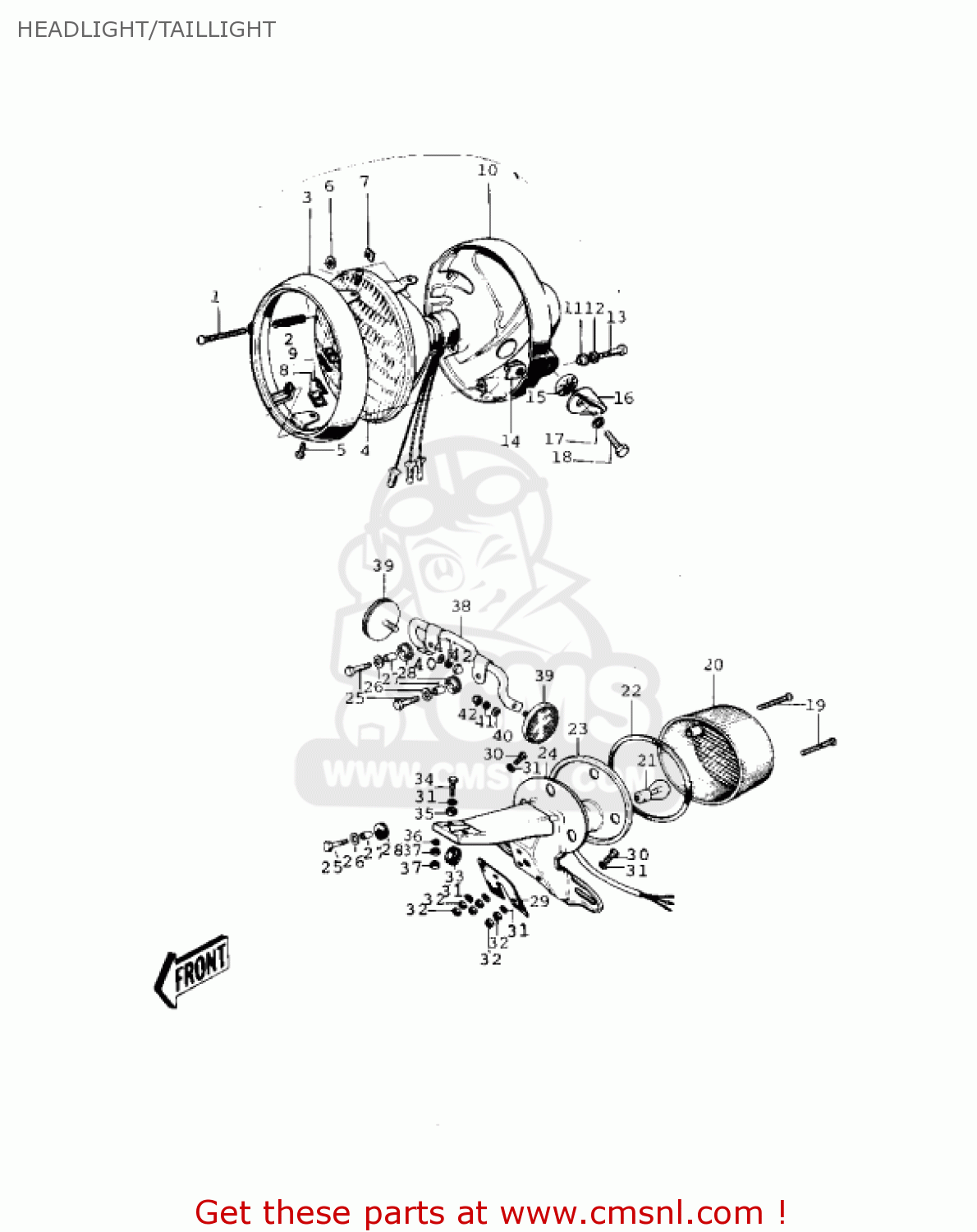

HEADLIGHT/TAILLIGHT

ref

part #

description

quantity

?

23003015
ref: ?
Includes items 1 - 9

LAMP UNIT-HEAD

€ 124.00

1

23019021
ref: 1

SCREW-FORCUS ADJUST

€ 3.00

2

23014005
ref: 2

SPRING-FOCUS ADJUST

€ 2.50

3

23006028
ref: 3

RIM-HEAD LAMP

€ 43.00

4

23007032
ref: 4

LENS UNIT-HEAD LAMP

€ 94.50

5

23019018
ref: 5

SCREW-LENS UNIT FITT

€ 2.00

6

23021004
ref: 6

WASHER,4.1X8X0.8

€ 2.00

7

23020016
ref: 7

NUT

€ 2.00

8

23020009
ref: 8

NUT,LENS UNIT FITTING

€ 2.50

9

23022001
ref: 9

PIN

€ 2.50

10

2300503410
ref: 10
BLACK

BODY-HEAD LAMP,BLACK

€ 36.50

11

23021010
ref: 11

WASHER

€ 2.50

12

461F0500
ref: 12

WASHER-SPRING,5MM

€ 0.50

13

92011024
ref: 13

SCREW-PAN HEAD,5MM

€ 2.00

14

23020017
ref: 14

NUT

€ 2.00

15

23021011
ref: 15

WASHER-LOCK

€ 3.00

16

92075134
ref: 16

DAMPER

€ 7.00

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

92007024
ref: 18

BOLT,10MM

€ 4.50

?

2302402121
ref: ?
Includes items 19 -

TAIL LAMP ASSEMBLY,FLAT BLACK

€ 228.00

19

220E0435A
ref: 19

SCREW-PAN HEAD,4X35

€ 4.50

20

23026023
ref: 20

LENS,TAIL LAMP

€ 91.50

21

92069028
ref: 21

BULB 6V 17/5.3W

€ 4.50

22

23028018
ref: 22

GASKET,TAIL LAMP LENS (NAS)

€ 6.50

23

23027030
ref: 23

BODY-COMP-TAIL LAMP

€ 76.00

24

2303601821
ref: 24
FLAT BLACK

LICENSE PLATE BRACKET,FLAT BLACK

€ 103.50

25

112G0620
ref: 25

BOLT 6X20

€ 1.00

26

92022125
ref: 26

WASHER,6.5X20X1.6

€ 1.00

27

92027129
ref: 27

COLLAR,6.8X10X8.5

€ 3.00

28

92075076
ref: 28

DAMPER

€ 3.00

29

35039005
ref: 29
8T

DAMPER,TAIL LAMP

€ 6.50

30

112G0630
ref: 30

BOLT-UPSET

€ 1.00

31

92022125
ref: 31

WASHER,6.5X20X1.6

€ 1.00

32

312B0600
ref: 32

NUT,6MM

€ 0.50

33

92071019
ref: 33

GROMMET,10MM

€ 2.50

34

112B0622
ref: 34

BOLT, 6X22

€ 2.50

35

92075151
ref: 35

DAMPER,TAIL LAMP

€ 2.00

36

411B0600
ref: 36

WASHER-PLAIN,6MM

€ 0.50

37

311B0600
ref: 37

NUT,6MM

€ 0.50

38

28013005
ref: 38

BRACKET-REFLECTOR

€ 13.00

39

28012008
ref: 39

REFLECTOR-REFLEX,REAR

€ 8.50

40

411B0500
ref: 40

WASHER-PLAIN,5MM

€ 0.50

41

461F0500
ref: 41

WASHER-SPRING,5MM

€ 0.50

42

322N0500
ref: 42

NUT-CAP,5MM

€ 2.00
