CHASSIS ELECTRICAL EQUIPMENT
F11A 1974 USA

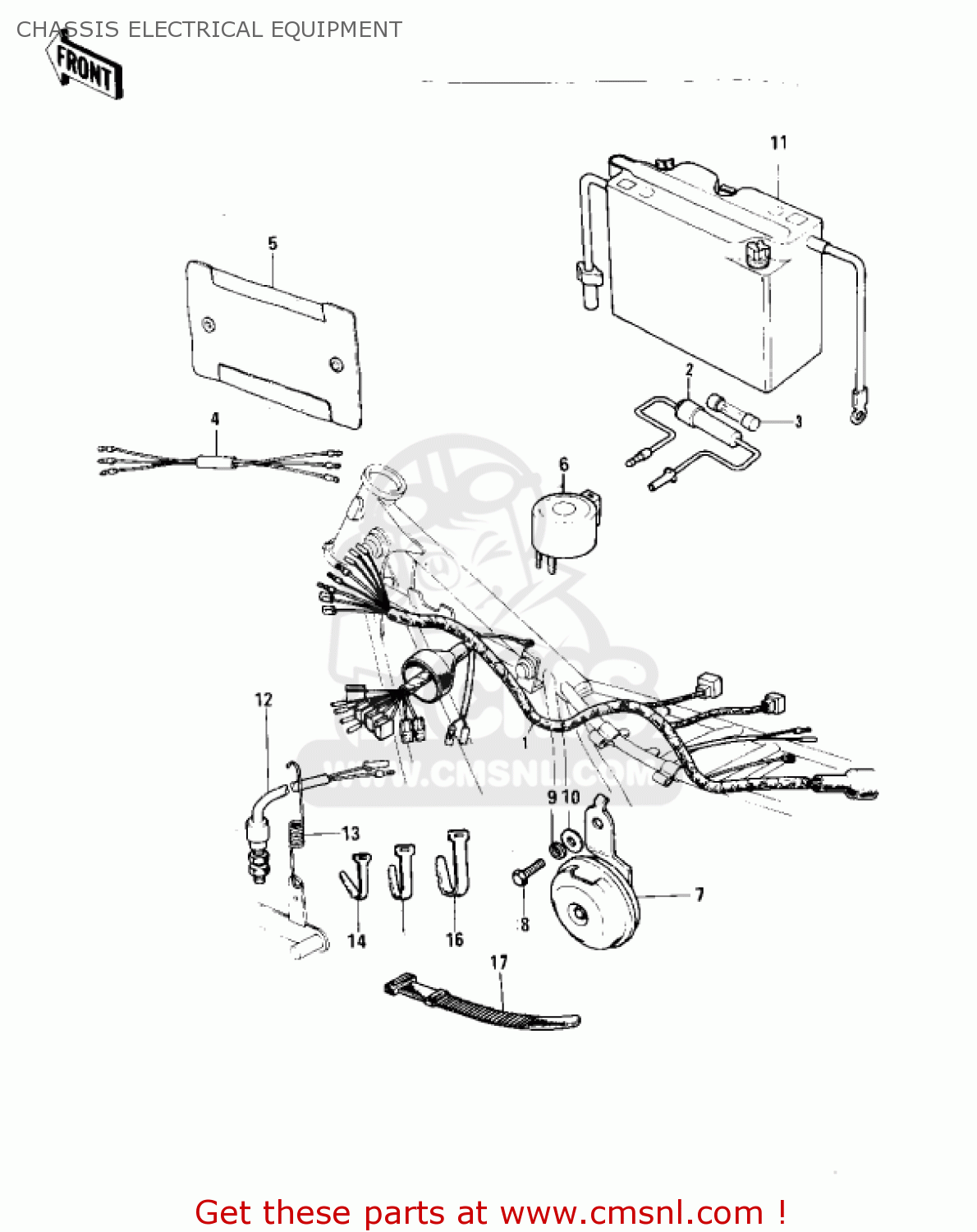

Chassis electrical equipment diagram F11A 1974 USA
CHASSIS ELECTRICAL EQUIPMENT F11A 1974 USA
×
prices are in EUR
ref
part #
description
quantity
1
26001082
ref: 1
WIRING HARNESS,MAIN
€ 365.50
?
26004014
ref: ?
Includes items 2 and
FUSE ASSY
€ 5.50
3
26006007
ref: 3
FUSE 15A
€ 2.50
4
26011065
ref: 4
WIRE-LEAD
€ 6.50
5
26009005
ref: 5
COVER-WIRING HARNESS
€ 3.00
6
27002013
ref: 6
RELAY-ASSY,TURN SIGNA
€ 27.00
7
27003056
ref: 7
HORN
€ 36.00
8
116B0816
ref: 8
BOLT-HEX HEAD,8X16
€ 0.50
9
461F0800
ref: 9
WASHER-SPRING,8MM
€ 0.50
10
411B0800
ref: 10
WASHER-PLAIN,8MM
€ 0.50
11
26012035
ref: 11
BATTERY,YUA,6N4B-2A-3
€ 73.50
12
27010017
ref: 12
SWITCH,BRAKE LAMP
€ 23.50
13
27011012
ref: 13
SPRING-BRAKE LAMP SW
€ 2.00
14
92072030
ref: 14
BAND,SHORT
€ 3.00
15
92072031
ref: 15
BAND,MIDDLE
€ 3.00
16
92072032
ref: 16
BAND,LONG
€ 3.00
17
92072035
ref: 17
BAND,L=80
€ 4.00
