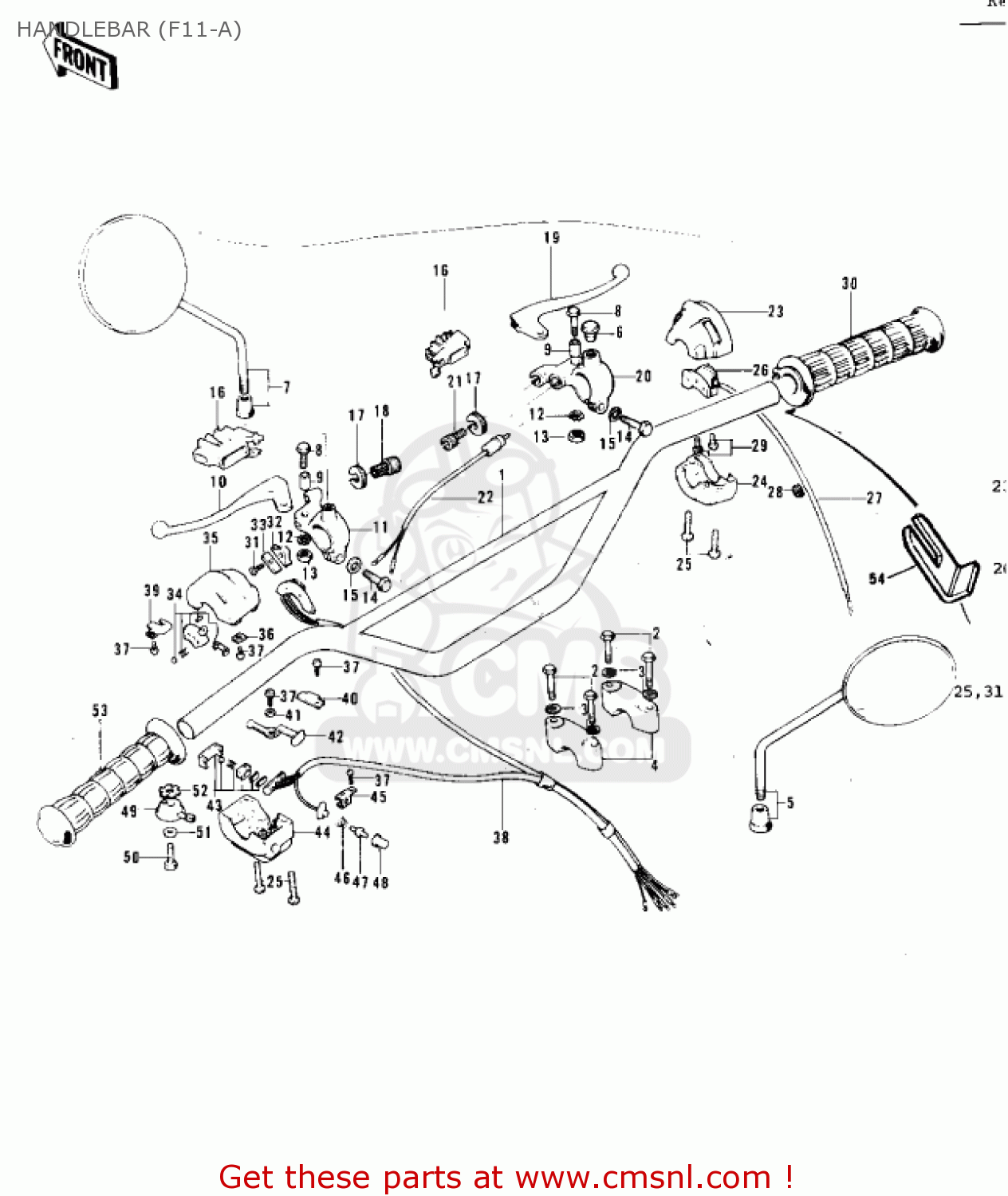

HANDLEBAR (F11-A)

ref

part #

description

quantity

1

46004019
ref: 1

HANDLEBAR

€ 57.50

2

920011405
ref: 2

BOLT,8X38

€ 10.00

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

46012008
ref: 4

HOLDER-HANDLE,UPP

€ 23.00

5

56002020
ref: 5
OPTION

MIRROR-ASSY,RH

€ 47.50

6

92102009
ref: 6
NOT REQD FOR 56003-0

CAP-RR VIEW MIRROR

€ 3.00

7

56003009
ref: 7

MIRROR-ASSY,LH

€ 50.00

8

92007020
ref: 8

BOLT-HEX HEAD,5X20

€ 2.50

9

46059011
ref: 9

COLLAR,LEVER

€ 3.50

10

46092015
ref: 10

LEVER-GRIP,CLUTCH

€ 11.50

11

4609401121
ref: 11
FLAT BLACK

HOLDER-CLUTCH LEV,BLK

€ 23.00

12

464H0500
ref: 12

WASHER-LOCK,5MM

€ 0.50

13

312B0500
ref: 13

NUT-HEX,5MM

€ 0.50

14

110N0625
ref: 14

BOLT-HEX HEAD,6X25

€ 3.50

15

410B0600
ref: 15

WASHER-PLAIN-SMALL,6M

€ 0.50

16

46071002
ref: 16

DUST COVER

€ 12.50

17

46056005
ref: 17

NUT-LOCK

€ 6.00

18

46055003
ref: 18
I.D=8

SCREW-CABLE ADJUST

€ 11.50

19

46058004
ref: 19

LEVER-GRIP,FRONT BRAK

€ 24.00

20

4606000921
ref: 20
FLAT BLACK

HOLDER,BRAKE LEVER,FR

€ 27.00

21

46055010
ref: 21
I.D=7

SCREW,CABLE ADJUST

€ 21.00

22

27021005
ref: 22

SWITCH-FR BRAKE LAMP

€ 25.50

?

4601802321
ref: ?
Includes items 23 -

CASE ASSY-R.H,F.BLACK

€ 75.50

23

4604100921
ref: 23
FLAT BLACK

CASE-R.H UPPER,BLACK

€ 26.00

24

4602300921
ref: 24
FLAT BLACK

CASE-R.H LOWER,BLACK

€ 19.50

25

220B0522
ref: 25

SCREW-PAN-CROS

€ 0.50

?

46027010
ref: ?
Includes items 26 -

SWITCH ASSY-ENG STOP

€ 13.00

26

46028004
ref: 26

SWITCH-ENGINE STOP

€ 12.00

27

46082024
ref: 27

WIRING HARNESS-STP SW

€ 2.00

28

92071060
ref: 28

GROMMET-WIRING HARNES

€ 0.50

29

220B0306
ref: 29

SCREW-PAN-CROS

€ 0.50

30

46019022
ref: 30

GRIP ASSY-THROTTLE

€ 13.50

?

4609101121
ref: ?
Includes items 25 an

CASE ASSY-L.H,F.BLACK

€ 59.50

31

221B0308A
ref: 31

SCREW-CNTSNK HD,3X8

€ 2.50

32

46044011
ref: 32

KNOB-L.H SWITCH

€ 6.00

33

46031003
ref: 33

SPRING-L.H SW KNOB

€ 1.50

34

46089012
ref: 34

SWITCH ASSY,L.H

€ 8.00

35

4608601621
ref: 35
FLAT BLACK

CASE-L.H UPPER,BLACK

€ 12.50

36

46085019
ref: 36

HOLDER-L.H SW UPPER,B

€ 0.50

37

220B0306
ref: 37

SCREW-PAN-CROS

€ 0.50

38

46082025
ref: 38

WIRING HARNESS-L.H SW

€ 25.50

39

46085020
ref: 39

HOLDER-L.H SW UPPER,A

€ 1.50

40

46085016
ref: 40

HOLDER-L.H SW LOWER,A

€ 2.00

41

92095010
ref: 41

WASHER

€ 2.50

42

46044012
ref: 42

KNOB-SWITCH

€ 3.50

43

46089007
ref: 43

SLIDE BLOCK AY-L.H SW

€ 10.00

44

4607701721
ref: 44
FLAT BLACK

CASE-L.H LOWER,BLACK

€ 12.00

45

46085017
ref: 45

HOLDER-L.H SW LOWER,B

€ 1.00

46

270101009
ref: 46

SWITCH ASSY,HORN BUTN

€ 5.50

47

270101009
ref: 47

SWITCH ASSY,HORN BUTN

€ 5.50

48

270101009
ref: 48

SWITCH ASSY,HORN BUTN

€ 5.50

49

4609600810
ref: 49

LEVER,STARTER,BLACK

€ 17.00

50

110B0608
ref: 50

BOLT-HEX HEAD,6X8

€ 0.50

50

112B0608
ref: 50

BOLT-HEX,HEAD,6X8

€ 0.50

51

410B0600
ref: 51

WASHER-PLAIN-SMALL,6M

€ 0.50

52

92095012
ref: 52

WASHER-LOCK

€ 3.50

53

46075019
ref: 53

RUBBER-L.H GRIP

€ 6.00

54

46037023
ref: 54

HOLDER,CONTROL CABLE

€ 4.50
