MUFFLER(S)
EX500F2 GPZ500S 1995 AUSTRIA

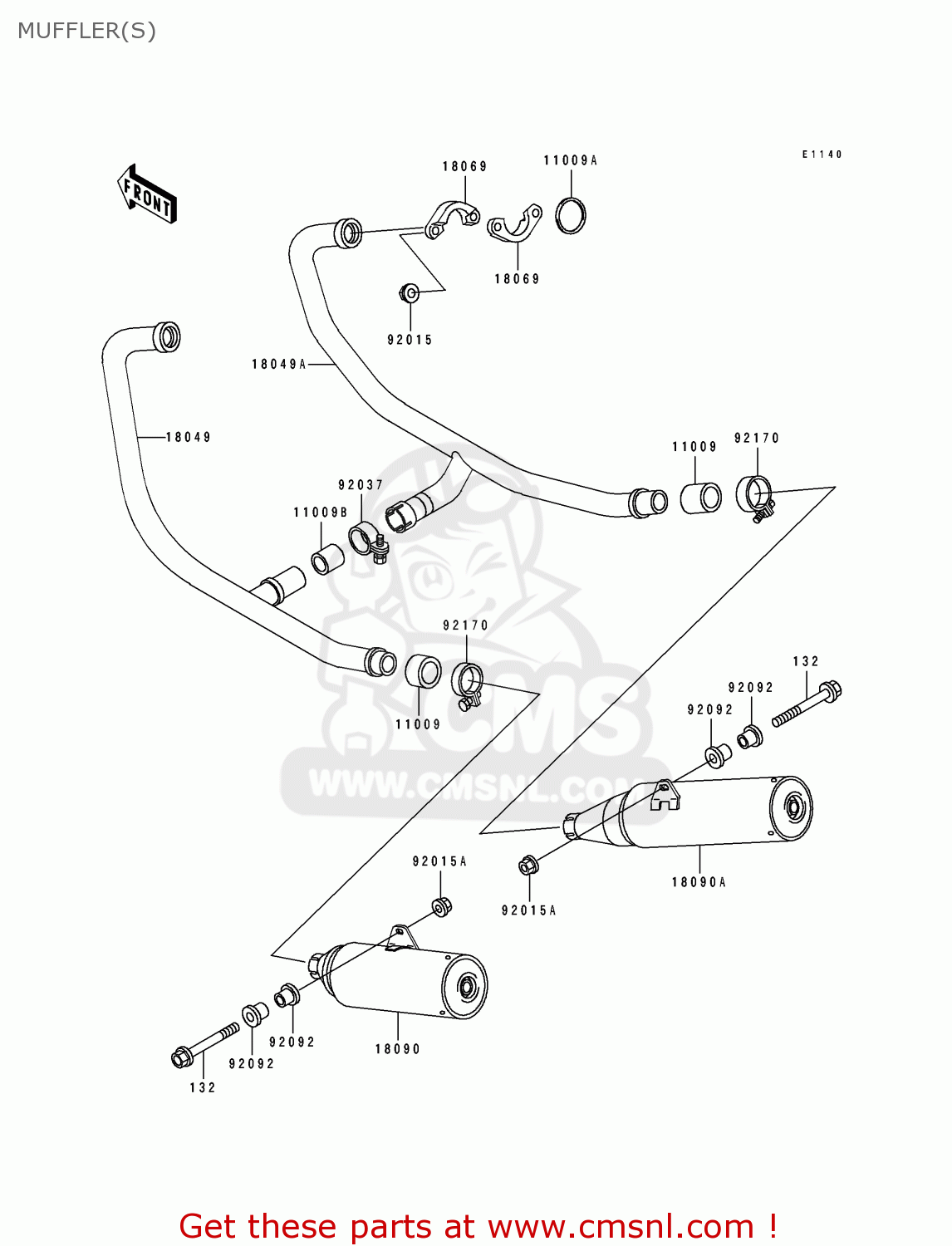

Muffler(s) diagram EX500F2 GPZ500S 1995 AUSTRIA
MUFFLER(S) EX500F2 GPZ500S 1995 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
132
132J1065
ref: 132
BOLT-FLANGED-SMALL
€ 5.00
11009
110091667
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
€ 15.00
11009A
110091840
ref: 11009A
GASKET,EXHAUST PIPE H (NAS)
€ 7.00
11009B
110091865
ref: 11009B
GASKET,MUFFLER CONNEC (NAS)
€ 19.50
18049
180491402
ref: 18049
PIPE-EXHAUST,LH
€ 168.00
18049A
180491403
ref: 18049A
PIPE-EXHAUST,RH
€ 151.00
18069
180691122
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
18090
180901420
ref: 18090
BODY-COMP-MUFFLER,LH
€ 382.00
18090A
180901421
ref: 18090A
BODY-COMP-MUFFLER,RH
€ 314.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
€ 3.00
92015A
920151387
ref: 92015A
NUT,FLANGED,10MM
€ 2.50
92037
920371792
ref: 92037
CLAMP,39.5MM
€ 10.00
92092
92092010
ref: 92092
BUSHING-MUFFLER FITT
€ 11.00
92170
921701469
ref: 92170
CLAMP
€ 24.50
