AIR CLEANER
EX500F2 GPZ500S 1995 AUSTRIA

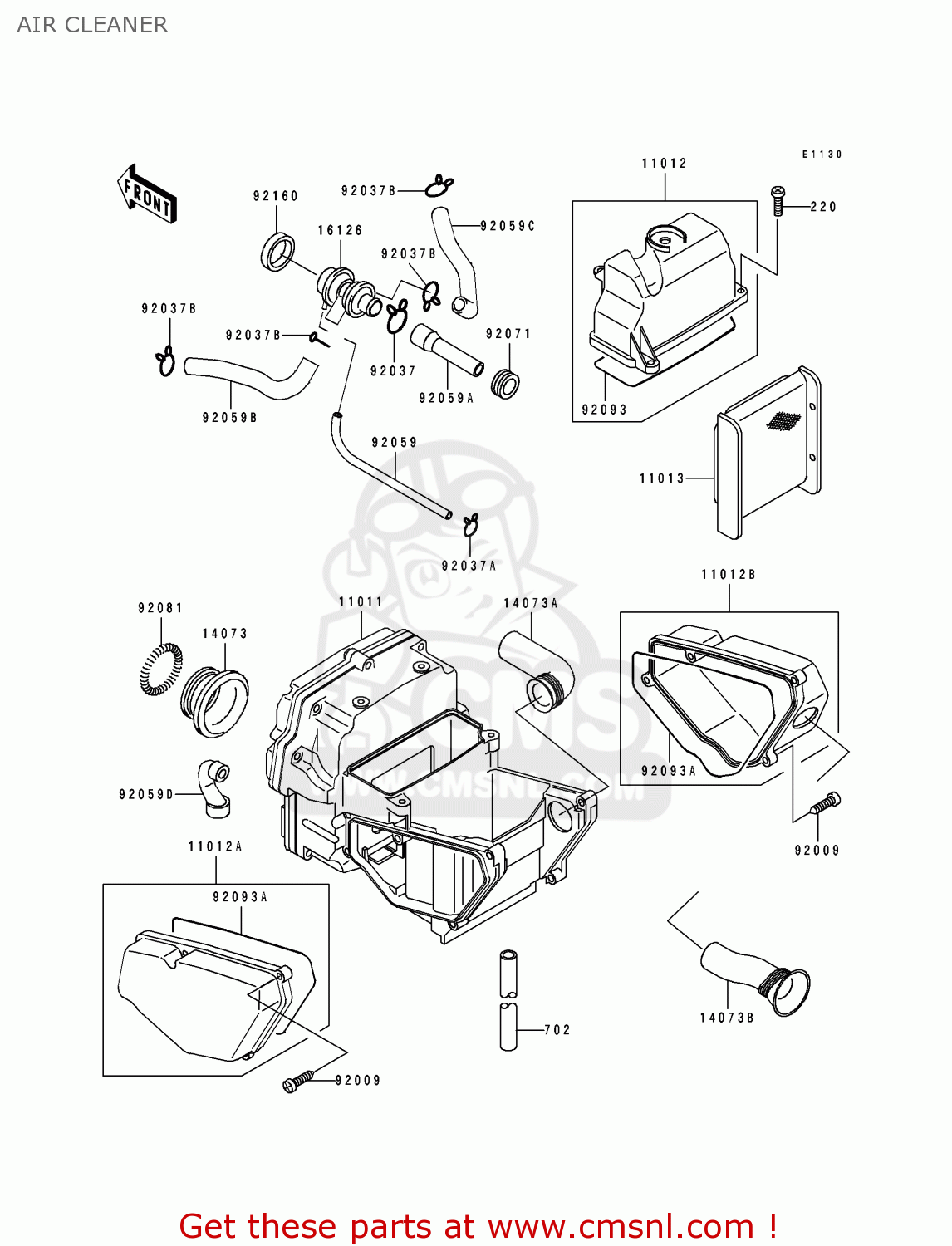

Air cleaner diagram EX500F2 GPZ500S 1995 AUSTRIA
AIR CLEANER EX500F2 GPZ500S 1995 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
702
702A05350
ref: 702
TUBE-RUBBER,5X350
€ 50.00
11011
110111268
ref: 11011
CASE-AIR FILTER
€ 167.00
11012
110121571
ref: 11012
CAP,AIR FILTER CASE,U
€ 32.50
11012A
110121608
ref: 11012A
CAP,AIR FILTER,LH
€ 28.00
11012B
110121609
ref: 11012B
CAP,AIR FILTER,RH
€ 28.00
11013
110131155
ref: 11013
ELEMENT-AIR FILTER
€ 28.00
14073
140731292
ref: 14073
DUCT,CARBURATOR
€ 17.00
14073A
140731293
ref: 14073A
DUCT,INTAKE
€ 10.00
14073B
140731295
ref: 14073B
DUCT
€ 14.00
16126
161261005
ref: 16126
VALVE,AIR SWITCH
€ 130.50
92009
920091488
ref: 92009
SCREW
€ 3.00
92037
920371076
ref: 92037
CLAMP,TUBE
€ 4.00
92037A
920371712
ref: 92037A
CLAMP
€ 3.00
92037B
92037213
ref: 92037B
CLAMP, BREATHER TUBE
€ 2.50
92059
920591043
ref: 92059
TUBE,TUBE 4X9X290
€ 7.00
92059A
920591770
ref: 92059A
TUBE,AIR FILTER-ACV
€ 9.00
92059B
920591771
ref: 92059B
TUBE,AIR SWITCH,LH
€ 14.50
92059C
920591772
ref: 92059C
TUBE,AIR SWITCH,RH
€ 14.00
92059D
920591773
ref: 92059D
TUBE,BREATHER
€ 7.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
€ 4.50
92081
920811457
ref: 92081
SPRING,COIL,BLACK
€ 7.00
92093
920931233
ref: 92093
SEAL,AIR FILTER CAP
€ 6.00
92093A
920931234
ref: 92093A
SEAL,AIR FILTER
€ 7.50
92160
921601454
ref: 92160
DAMPER,VALVE
€ 10.50
