FRONT MASTER CYLINDER
EX500F2 GPZ500S 1995 AUSTRIA

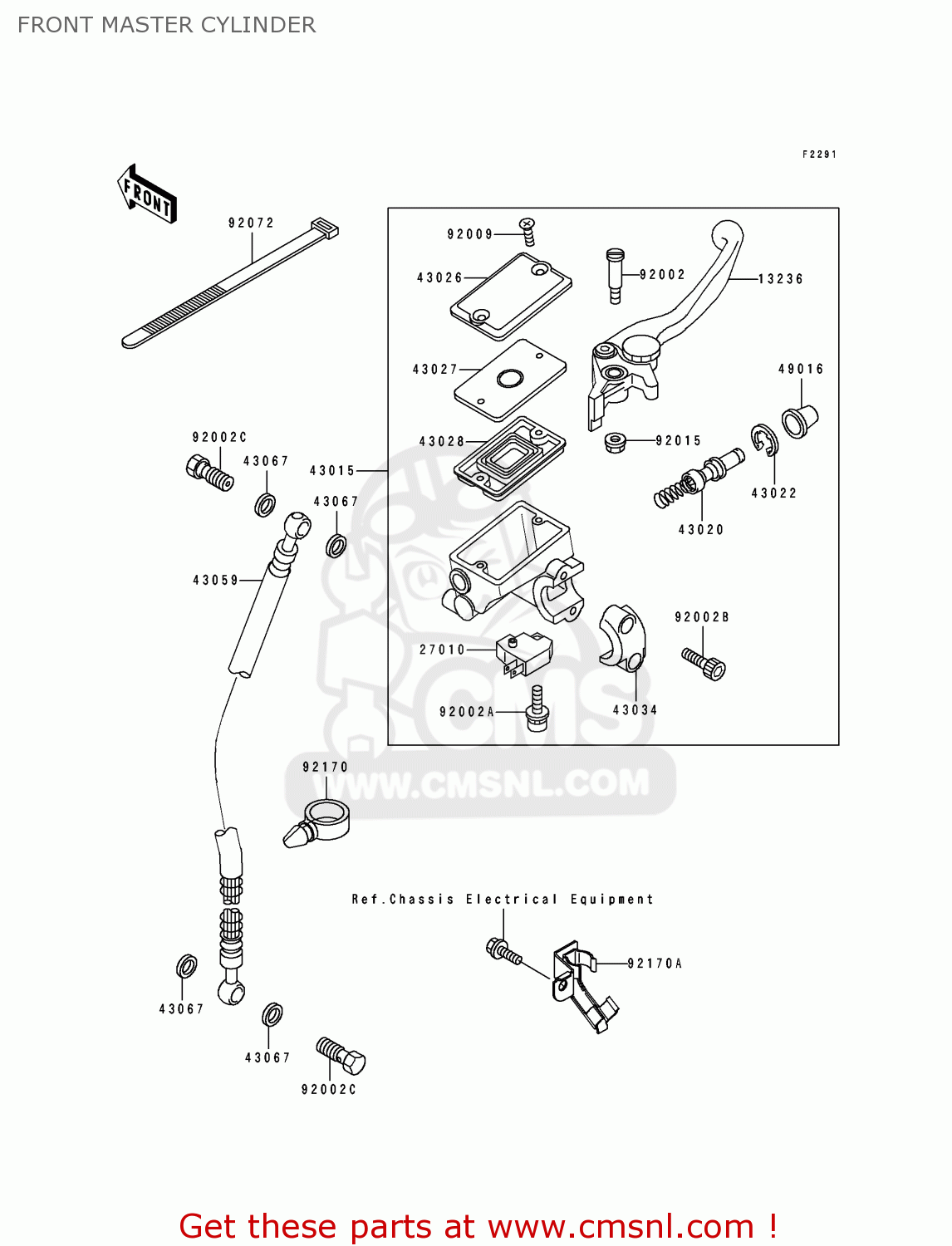

Front master cylinder diagram EX500F2 GPZ500S 1995 AUSTRIA
FRONT MASTER CYLINDER EX500F2 GPZ500S 1995 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
13236
132361185
ref: 13236
LEVER-COMP,FRONT BRAK
€ 51.00
27010
270101170
ref: 27010
SWITCH,BRAKE
€ 26.00
43015
430151479
ref: 43015
CYLINDER-ASSY-MASTER,
€ 350.00
43020
430201056
ref: 43020
PISTON-COMP-BRAKE,FR
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
€ 3.00
43026
430261076
ref: 43026
CAP-BRAKE
€ 31.00
43027
430271055
ref: 43027
PLATE-DIAPHRAGM
€ 5.50
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
€ 15.50
43034
430341053
ref: 43034
HOLDER-BRAKE,MASTER C
€ 26.00
43059
430591860
ref: 43059
HOSE-BRAKE,FR
€ 129.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
92002
920021322
ref: 92002
BOLT,LEVER SET
€ 8.00
92002A
920021323
ref: 92002A
BOLT
€ 2.50
92002B
920021324
ref: 92002B
BOLT,SOCKET,6X20
€ 5.00
92002C
920021907
ref: 92002C
BOLT
€ 3.50
92009
920091458
ref: 92009
SCREW,4MM
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92170
921701067
ref: 92170
CLAMP,HOSE
€ 5.00
92170A
921701499
ref: 92170A
CLAMP,HOSE
€ 7.00
