CHASSIS ELECTRICAL EQUIPMENT
EX500F2 GPZ500S 1995 AUSTRIA

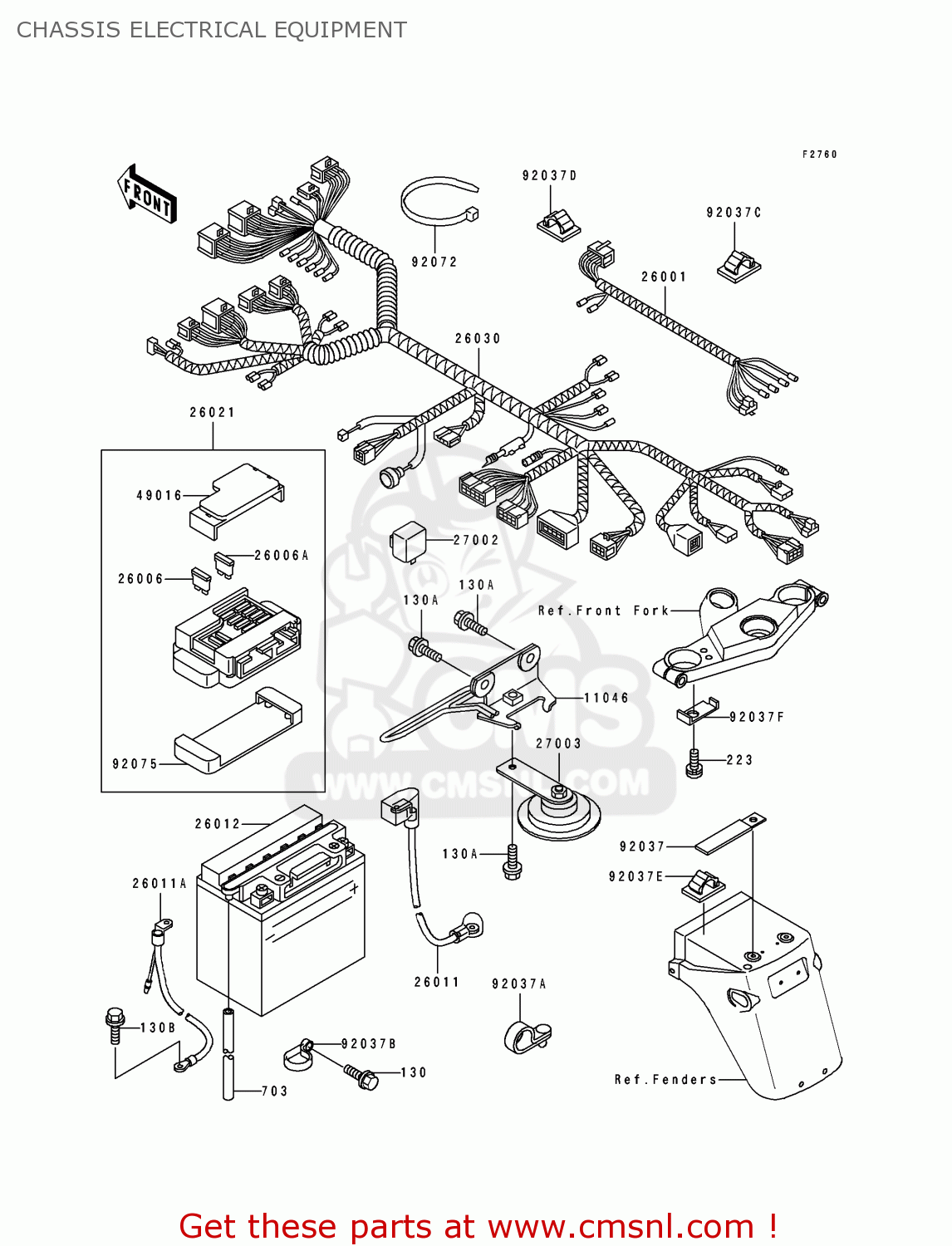

Chassis electrical equipment diagram EX500F2 GPZ500S 1995 AUSTRIA
CHASSIS ELECTRICAL EQUIPMENT EX500F2 GPZ500S 1995 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130C0612
ref: 130A
BOLT-FLANGED,6X12
€ 1.50
130B
130V0610
ref: 130B
BOLT-FLANGED,6X10
€ 0.50
223
223C0610
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
703
703A08530
ref: 703
TUBE-RUBBER,8X12X530
€ 13.50
11046
110461233
ref: 11046
BRACKET,HORN&CABLE
€ 15.00
26001
260011859
ref: 26001
HARNESS,FRONT SIGNAL
€ 27.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111388
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 26.50
26011A
260111389
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 26.50
26012
260121219
ref: 26012
BATTERY,12V 14AH,FB14
€ 61.50
26021
260211090
ref: 26021
JUNCTION BOX
€ 140.50
26030
260301291
ref: 26030
HARNESS,MAIN
€ 302.50
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 33.50
27003
270031288
ref: 27003
HORN
€ 62.00
49016
490161177
ref: 49016
COVER-SEAL,FUSE
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
€ 4.50
92037B
920371727
ref: 92037B
CLAMP,HOSE
€ 5.50
92037C
920371793
ref: 92037C
CLAMP,HARNESS
€ 4.00
92037D
920371794
ref: 92037D
CLAMP
€ 5.00
92037E
920371816
ref: 92037E
CLAMP,HARNESS
€ 5.00
92037F
920371916
ref: 92037F
CLAMP,HARNESS
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
€ 9.50
