TAILLIGHT
EX500A5 1991 USA CALIFORNIA CANADA

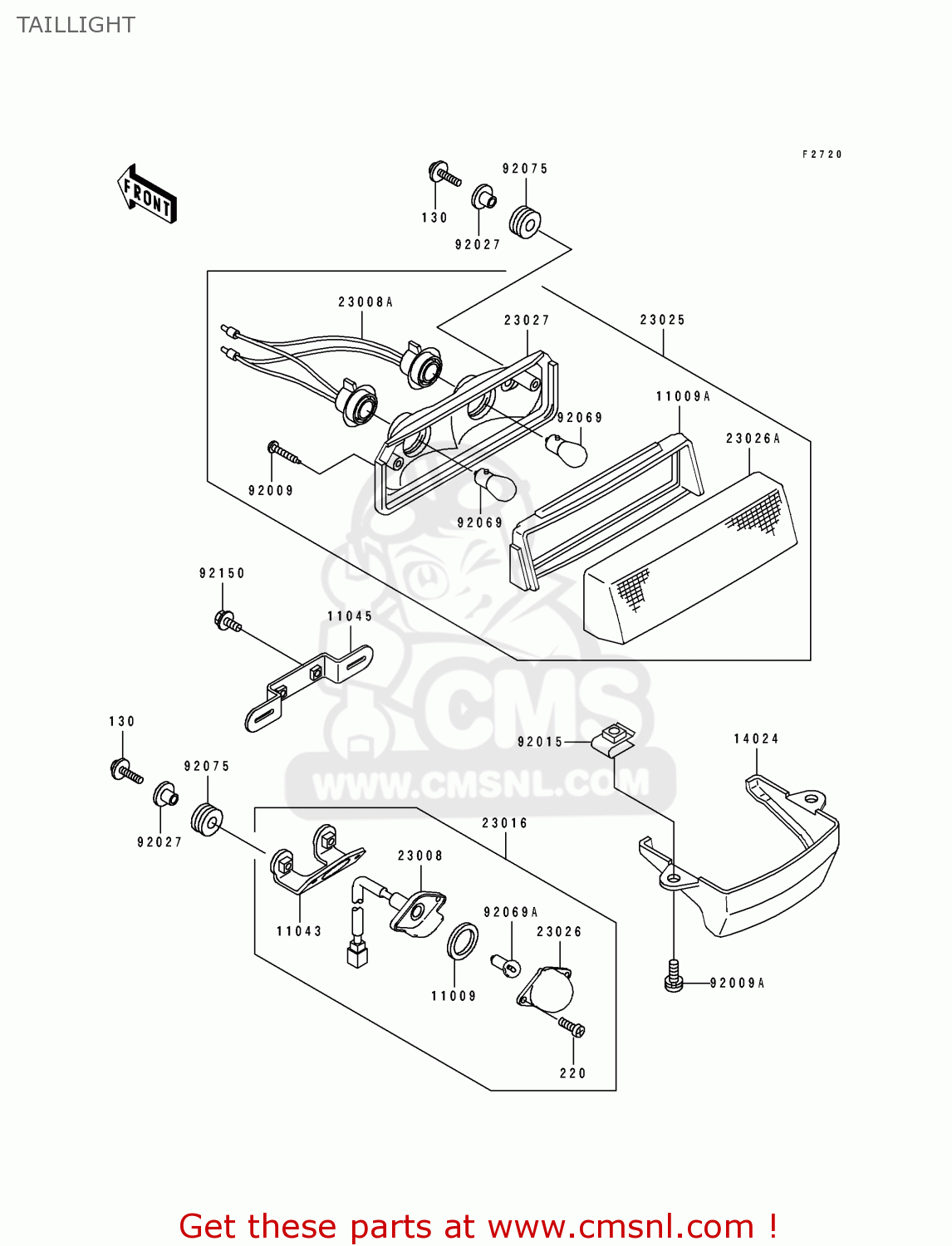

Taillight diagram EX500A5 1991 USA CALIFORNIA CANADA
TAILLIGHT EX500A5 1991 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130H0625
ref: 130
BOLT-FLANGED,6X25
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091404
ref: 11009A
GASKET,TAIL LAMP (NAS)
€ 13.00
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
€ 10.00
11045
110451387
ref: 11045
BRACKET,LICENSE
€ 11.00
14024
140241386
ref: 14024
COVER,LICENSE LAMP
€ 11.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
€ 7.50
23008A
230081225
ref: 23008A
SOCKET-ASSY,TAIL LAMP
€ 29.50
23016
230161053
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251105
ref: 23025
LAMP-TAIL
€ 183.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261056
ref: 23026A
LENS,TAIL LAMP
€ 22.50
23027
230271055
ref: 23027
BODY-COMP-TAIL LAMP
€ 29.00
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92009A
920091653
ref: 92009A
SCREW
€ 2.50
92015
920151710
ref: 92015
NUT
€ 4.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069059
ref: 92069
BULB,12V 32/3CP
€ 5.50
92069A
920691012
ref: 92069A
BULB,12V 8W 4CP
€ 4.50
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92150
921501133
ref: 92150
BOLT,6X14
€ 2.50
