ELECTRO BRACKET
EX500A5 1991 USA CALIFORNIA CANADA

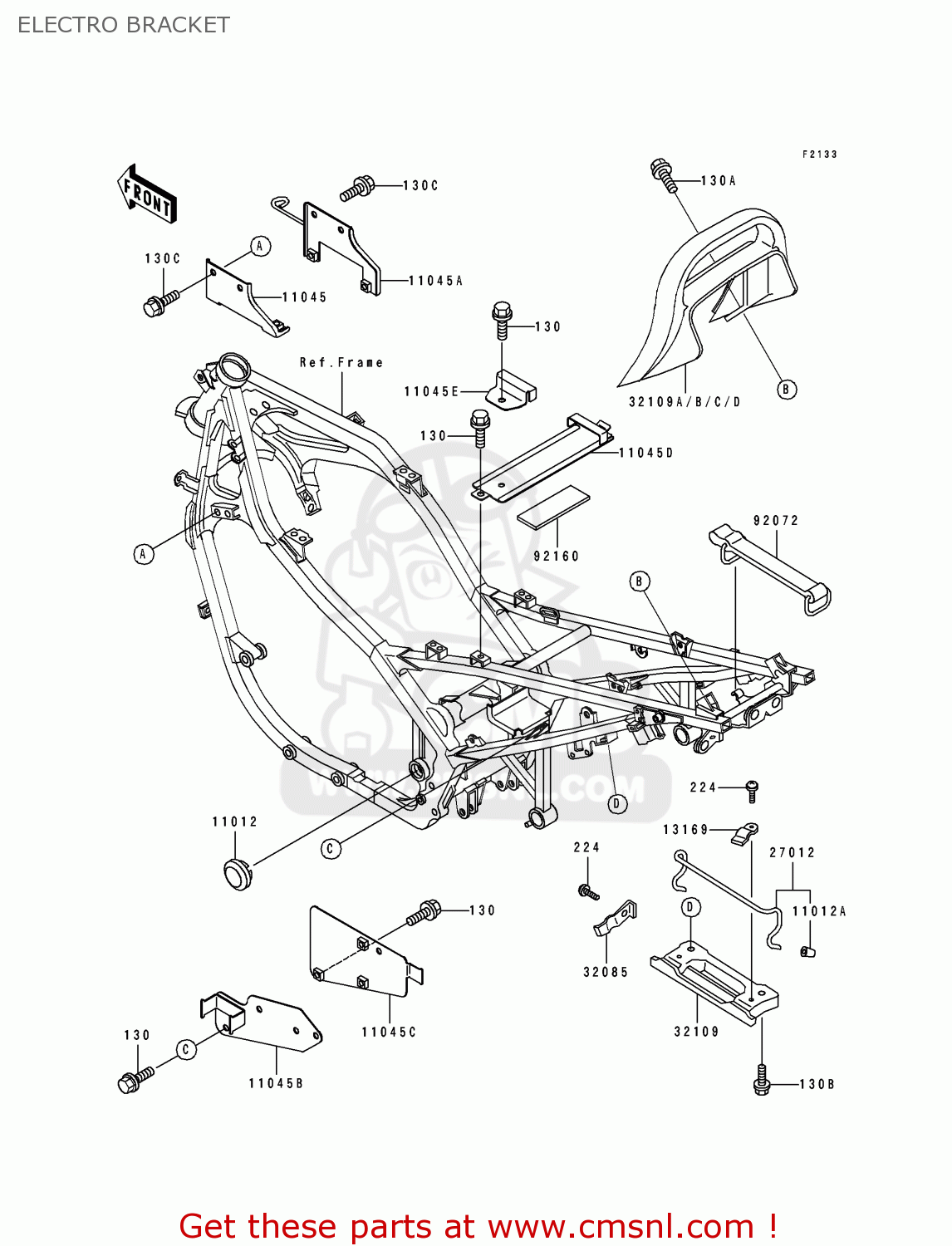

Electro bracket diagram EX500A5 1991 USA CALIFORNIA CANADA
ELECTRO BRACKET EX500A5 1991 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130B0608
ref: 130
BOLT,FLANGED,6X8
€ 0.50
130A
130D0814
ref: 130A
BOLT-FLANGED
€ 0.50
130B
130G0814
ref: 130B
BOLT,FLANGED,8X14
€ 0.50
130C
130J0614
ref: 130C
BOLT-FLANGED,6X14,BLA
€ 1.50
224
224C0508
ref: 224
SCREW-PAN-WP-CROS
€ 3.00
11012
110121558
ref: 11012
CAP,SWING ARM BRACKET
€ 8.00
11012A
110121589
ref: 11012A
CAP,BUNGEE CORD HOOK
€ 5.00
11045
110451419
ref: 11045
BRACKET,IGNITION COIL
€ 9.50
11045A
110451420
ref: 11045A
BRACKET,IGNITION COIL
€ 13.00
11045B
110451421
ref: 11045B
BRACKET,REGULATOR
€ 15.00
11045C
110451422
ref: 11045C
BRACKET,IGNITER
€ 9.50
11045D
110451423
ref: 11045D
BRACKET,BATTERY BAND
€ 12.50
11045E
110451424
ref: 11045E
BRACKET,JUNCTION BOX
€ 6.00
13169
131691760
ref: 13169
PLATE,GRIP
€ 6.50
27012
270121311
ref: 27012
HOOK,BUNGEE CORD
€ 11.50
32085
320851187
ref: 32085
STOPPER,HOOK
€ 7.50
32109
321091108
ref: 32109
GRIP-FRAME
€ 69.50
32109A
321091156H8
ref: 32109A
GRIP-FRAME,TAIL,EBONY
€ 155.50
32109B
321091156L1
ref: 32109B
GRIP-FRAME,TAIL,C.C.R
€ 71.00
92072
920721085
ref: 92072
BAND,RESERVE TANK
€ 12.50
92160
921601094
ref: 92160
DAMPER,BATTERY
€ 3.00
