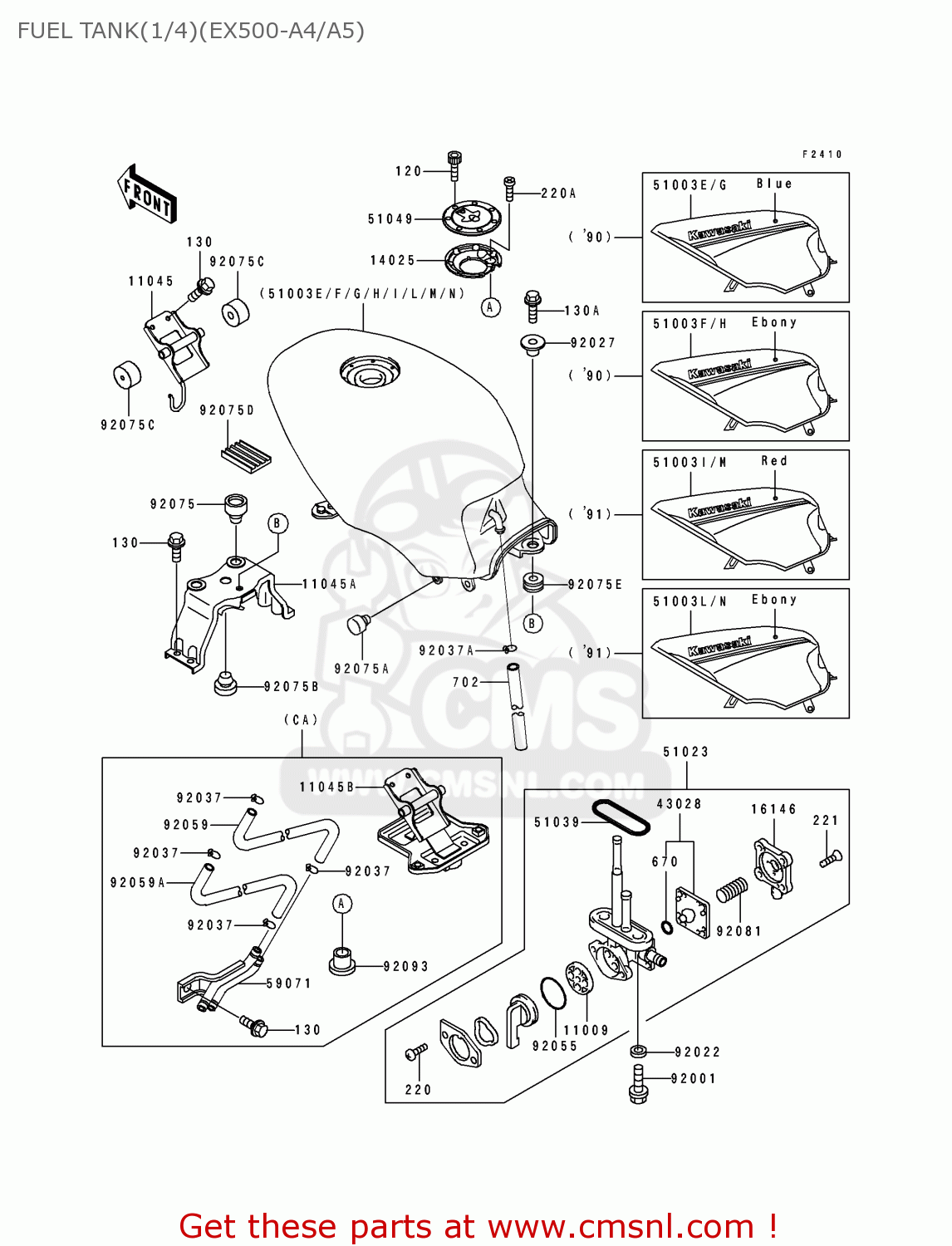

FUEL TANK(1/4)(EX500-A4/A5)

ref

part #

description

quantity

11009

110091188
ref: 11009

GASKET,TAP VALVE (NAS)

€ 4.00

11045

110451362
ref: 11045
CNUS

BRACKET,FUEL TANK,FR

€ 28.50

11045A

110451363
ref: 11045A

BRACKET,FUEL TANK,RR

€ 39.00

11045B

110451389
ref: 11045B
CA

FUEL TANK BRACKET,FRONT

€ 36.00

14025

140251913
ref: 14025

COVER,TANK CAP

€ 13.50

16146

161461010
ref: 16146

COVER-ASSY,TAP DIAPHR

€ 17.00

43028

430281033
ref: 43028

DIAPHRAGM

€ 15.00

51003I

510035125L1
ref: 51003I
CNUS

TANK-COMP-FUEL,C.C.RE

€ 665.00

51003L

510035210H8
ref: 51003L
CNUS

TANK-COMP-FUEL,EBONY

€ 748.50

51003M

510035211L1
ref: 51003M
CA

FUEL TANK,COMPLETE,CANDY CARDINAL RED

€ 505.00

51003N

510035212H8
ref: 51003N
CA

FUEL TANK,COMPLETE,EBONY

€ 505.00

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

130

130B0612
ref: 130
CNUS

BOLT-FLANGED,6X12

€ 0.50

130

130B0612
ref: 130
CA

BOLT-FLANGED,6X12

€ 0.50

130A

130G0830
ref: 130A

BOLT,8X30

€ 1.00

51023

510231142
ref: 51023

TAP-ASSY,FUEL

€ 95.50

51039

51039003
ref: 51039

'O' RING

€ 4.00

51049

510491091
ref: 51049

CAP-TANK,FUEL

€ 88.00

59071

590711122
ref: 59071
CA

EVAPORATOR JOINT

€ 26.50

92001

920011091
ref: 92001

BOLT,6X20,FUEL TAP

€ 2.50

92022

92022183
ref: 92022

WASHER,6.2X11X1.5

€ 2.50

92027

920271780
ref: 92027

COLLAR,L=19.3

€ 4.50

92037

92037010
ref: 92037
CA

CLAMP-FUEL PIPE

€ 2.50

92037A

920371712
ref: 92037A

CLAMP

€ 3.00

92055

920551085
ref: 92055

'O' RING,FUEL TAP LEV

€ 3.00

92059

920591767
ref: 92059
CA

EVAPORATOR TUBE

€ 5.50

92059A

920591768
ref: 92059A
CA

TUBE,EVAPO

€ 6.50

92075

92075015
ref: 92075

DAMPER RUBB-MAIN STND

€ 3.00

92075A

92075021
ref: 92075A

DAMPER

€ 3.00

92075B

920751045
ref: 92075B

DAMPER,STAND STOPPER

€ 5.00

92075C

920751115
ref: 92075C

DAMPER,FUEL TANK FRON

€ 4.00

92075D

920751489
ref: 92075D

DAMPER,SIDE BAG BRACK

€ 6.00

92075E

920751736
ref: 92075E

DAMPER

€ 4.00

92081

920811240
ref: 92081

SPRING,DIAPHRAGM VLV

€ 2.50

92093

920931030
ref: 92093
CA

OIL SEAL,FUEL TANK CA

€ 5.00

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220C0508
ref: 220A

SCREW-PAN-CROS

€ 1.00

221

221B0414
ref: 221

SCREW-CSR-CROS,4X14

€ 2.50

670

670B1504
ref: 670

O RING,4MM

€ 2.50

702

702A07380
ref: 702

TUBE-RUBBER

€ 9.50

all assemblies
