COWLING LOWERS(EX500-A4/A5)

EX500A5 1991 USA CALIFORNIA CANADA

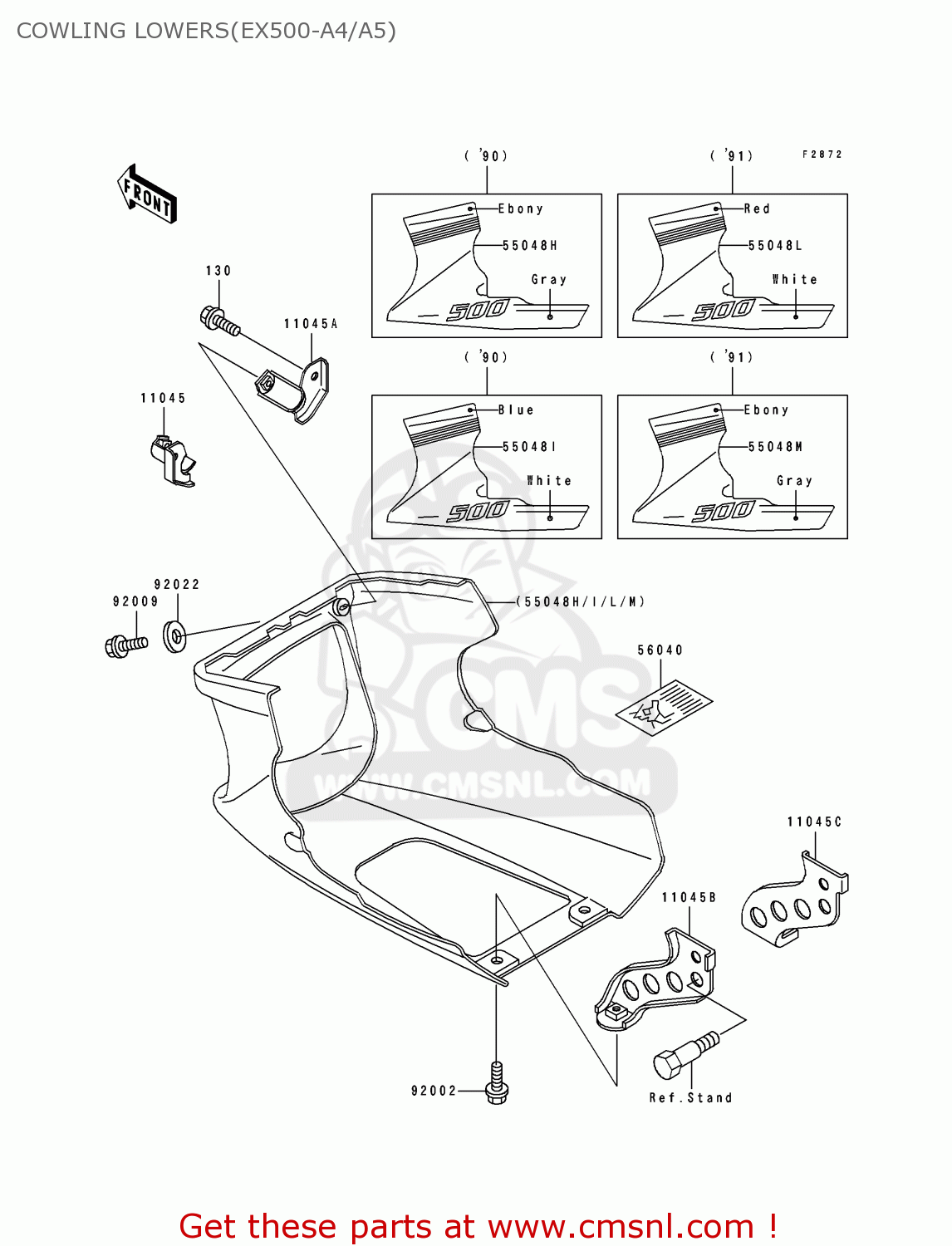

Cowling lowers(ex500-a4/a5) diagram EX500A5 1991 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11045

110451571
ref: 11045

BRACKET,LOWER COWLING

€ 15.50

11045A

110451572
ref: 11045A

BRACKET,LOWER COWLING

€ 12.50

11045B

110451573
ref: 11045B

BRACKET,LOWER COWLING

€ 9.00

11045C

110451574
ref: 11045C

BRACKET,LOWER COWLING

€ 10.00

55048L

550485475GP
ref: 55048L

COWLING.,LWR,RED/WHIT

€ 386.00

55048M

550485476FG
ref: 55048M

COWLING.,LWR,EBONY/GR

€ 382.50

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

56040

560401251
ref: 56040

LABEL-WARNING,LOWER C

€ 4.00

92002

920021188
ref: 92002

BOLT,6X16

€ 3.00

92009

920091287
ref: 92009

SCREW,6X14

€ 1.50

92022

920221654
ref: 92022

WASHER,6.5X16X1.0

€ 2.50
