WATER PUMP
EX500A3 GPZ500S 1989 EUROPE UK AR

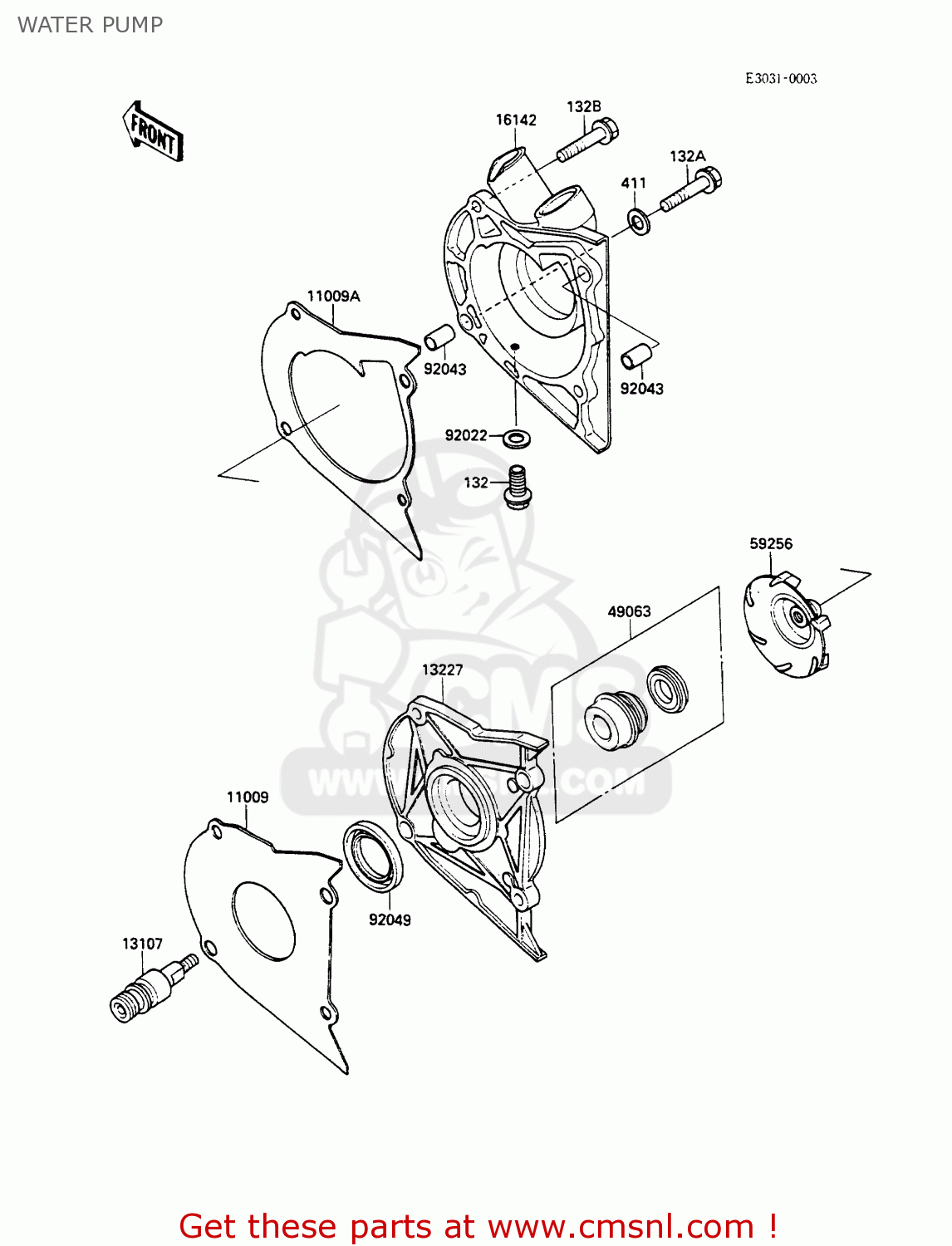

Water pump diagram EX500A3 GPZ500S 1989 EUROPE UK AR
WATER PUMP EX500A3 GPZ500S 1989 EUROPE UK AR
×
prices are in EUR
ref
part #
description
quantity
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0635
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
11009
110091491
ref: 11009
GASKET,PUMP HOUSING (MCA)
€ 7.50
11009A
110091492
ref: 11009A
GASKET,PUMP COVER (MCA)
€ 9.50
13107
131071203
ref: 13107
SHAFT,IMPELLER
€ 38.50
13227
132271064
ref: 13227
HOUSING,WATER PUMP
€ 58.00
16142
161421073
ref: 16142
COVER-PUMP
€ 131.00
49063
490631054
ref: 49063
SEAL-MECHANICAL
€ 19.00
59256
592561060
ref: 59256
IMPELLER
€ 24.00
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92049
920491215
ref: 92049
SEAL-OIL
€ 10.00
