RADIATOR
EX500A3 GPZ500S 1989 EUROPE UK AR

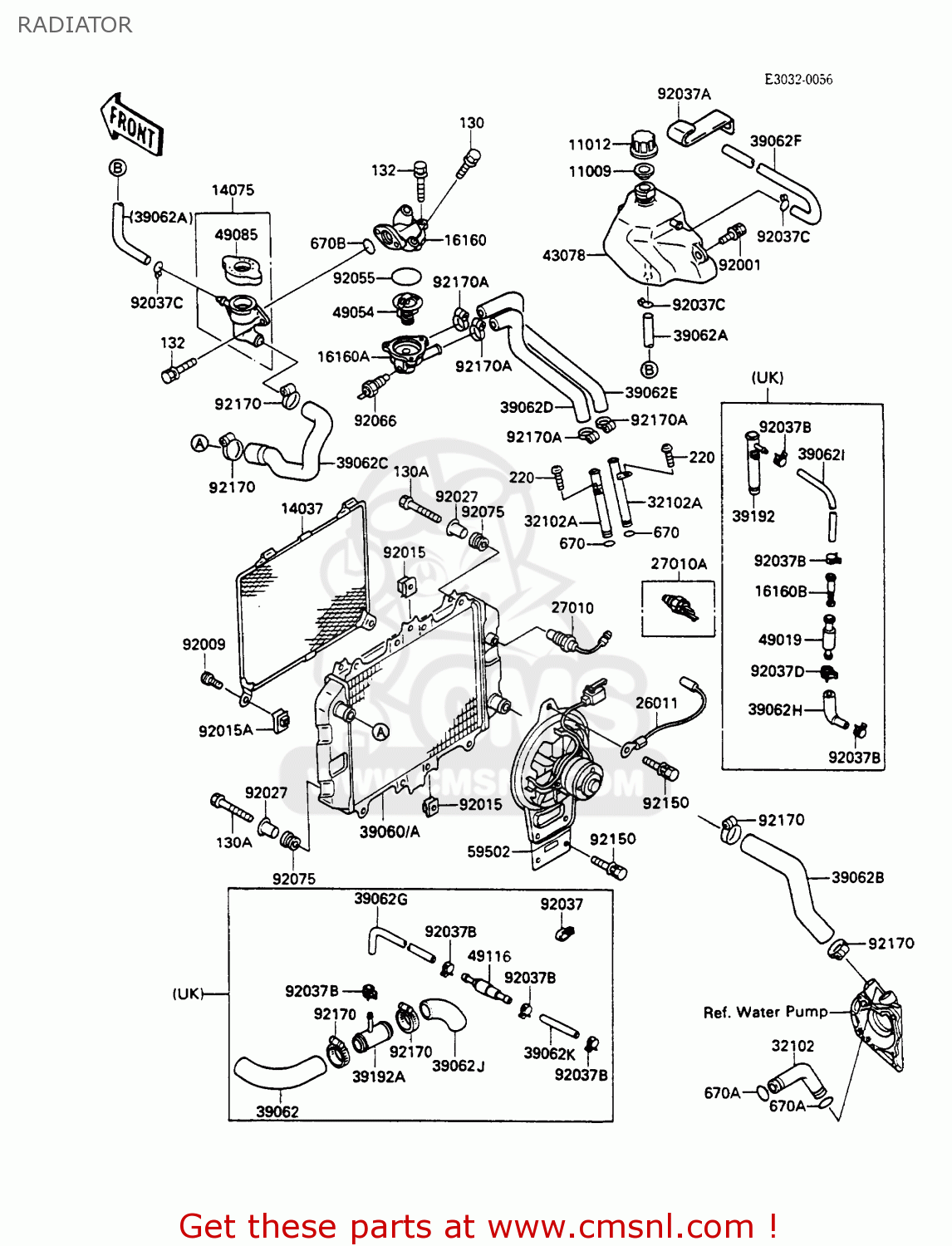

Radiator diagram EX500A3 GPZ500S 1989 EUROPE UK AR
RADIATOR EX500A3 GPZ500S 1989 EUROPE UK AR
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140371108
ref: 14037
SCREEN
€ 69.50
14075
140751065
ref: 14075
CAP-ASSY
€ 120.00
16160
161601126
ref: 16160
BODY,THERMOSTAT
€ 63.00
16160A
161601138
ref: 16160A
BODY,THERMOSTAT,LWR
€ 24.50
16160B
161601151
ref: 16160B
UK
BODY,FILTER
€ 6.50
27010A
270101249
ref: 27010A
SWITCH,THERMOSTAT
€ 63.00
32102
321021405
ref: 32102
PIPE,PUMP-CYLINDER
€ 29.50
32102A
321021473
ref: 32102A
UK
PIPE
€ 25.50
32102A
321021473
ref: 32102A
AREU
PIPE
€ 25.50
39060A
390601084
ref: 39060A
RADIATOR
€ 681.50
39062
390621107
ref: 39062
UK
HOSE-COOLING
€ 8.50
39062A
390621195
ref: 39062A
HOSE-COOLING,L=447
€ 17.50
39062B
390621222
ref: 39062B
AREU
HOSE-COOLING,RADIATOR
€ 18.00
39062C
390621223
ref: 39062C
HOSE-COOLING,CAP-RADI
€ 26.50
39062D
390621224
ref: 39062D
HOSE-COOLING,THERMO-H
€ 20.50
39062E
390621225
ref: 39062E
HOSE-COOLING,THERMO-H
€ 24.00
39062F
390621257
ref: 39062F
HOSE-COOLING
€ 21.50
39062G
390621305
ref: 39062G
UK
HOSE-COOLING,CHECK VA
€ 5.50
39062H
390621314
ref: 39062H
UK
HOSE-COOLING
€ 7.50
39062I
390621345
ref: 39062I
UK
HOSE-COOLING
€ 5.50
39062J
390621350
ref: 39062J
UK
HOSE-COOLING
€ 7.00
39062K
390621352
ref: 39062K
UK
HOSE-COOLING
€ 5.50
39192
391921019
ref: 39192
UK
PIPE-WATER
€ 16.00
39192A
391921020
ref: 39192A
UK
PIPE-WATER
€ 11.00
43078
430781084
ref: 43078
RESERVOIR
€ 38.00
49019
490191068
ref: 49019
UK
FILTER-FUEL
€ 4.00
130
130B0614
ref: 130
BOLT-FLANGED
€ 0.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
670B
670B2020
ref: 670B
O RING,20MM
€ 1.00
49054
490541059
ref: 49054
THERMOSTAT
€ 41.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49116
491161076
ref: 49116
UK
VALVE-ASSY,CHECK
€ 134.00
59502
595021070
ref: 59502
FAN-ASSY
€ 570.50
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
€ 3.00
92009
920091480
ref: 92009
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92027
920271651
ref: 92027
COLLAR
€ 2.50
92037
920371069
ref: 92037
UK
CLAMP,L=60
€ 1.50
92037A
920371316
ref: 92037A
CLAMP
€ 1.50
92037B
920371461
ref: 92037B
UK
CLAMP,TUBE
€ 1.00
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
€ 4.50
92037C
92037147
ref: 92037C
UK
CLAMP,CHAIN OILER
€ 4.50
92037D
920371861
ref: 92037D
UK
CLAMP
€ 5.50
92055
920551279
ref: 92055
RING-O,45MM
€ 4.50
92066
920661118
ref: 92066
PLUG,SENSOR WATOR
€ 50.00
92075
92075277
ref: 92075
DAMPER
€ 1.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92170
920371989
ref: 92170
AREU
CLAMP
€ 13.00
92170
920371989
ref: 92170
UK
CLAMP
€ 13.00
92170A
921701077
ref: 92170A
CLAMP,COOLING HOSE
€ 6.50
