FRONT HUB
EX500A3 GPZ500S 1989 EUROPE UK AR

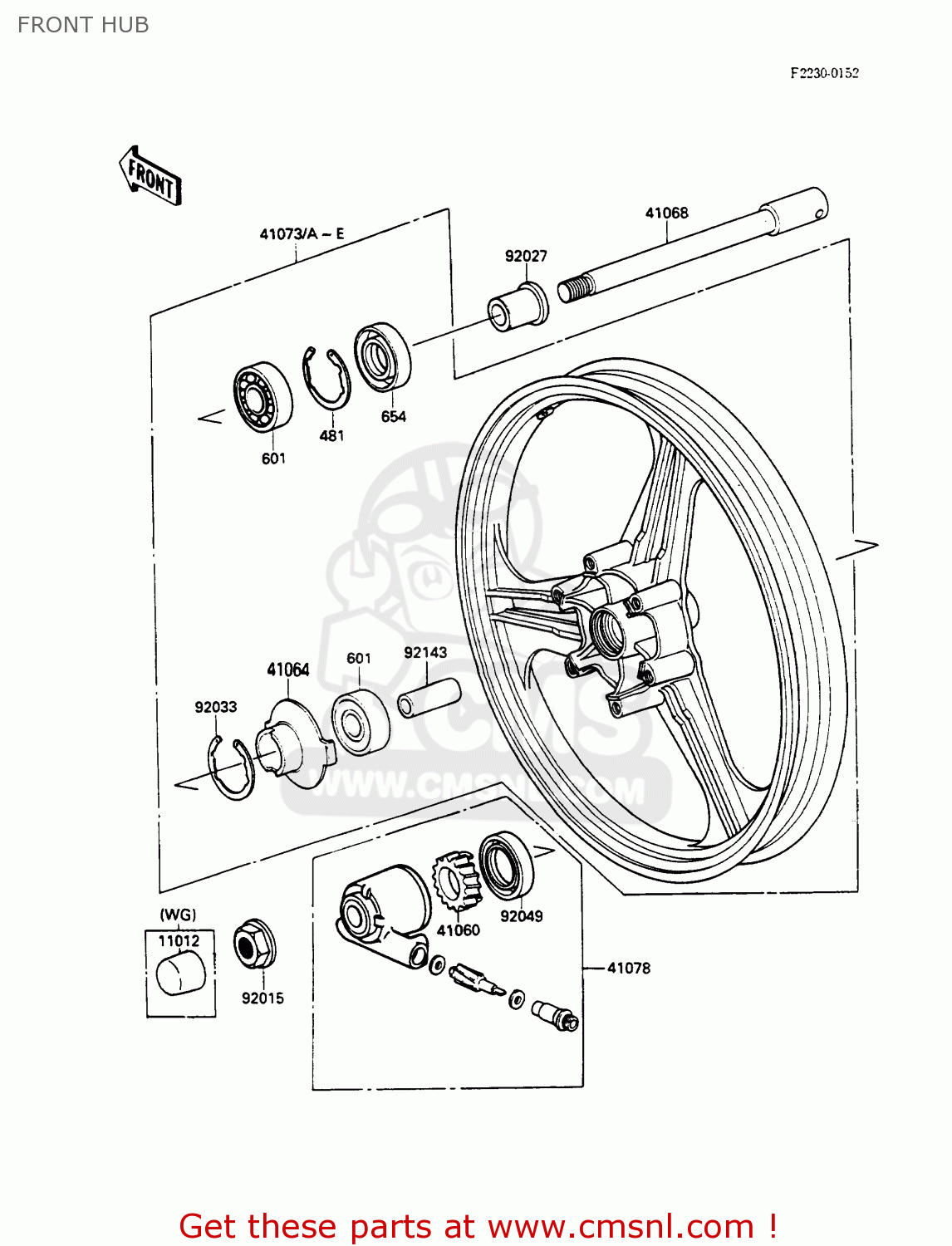

Front hub diagram EX500A3 GPZ500S 1989 EUROPE UK AR
FRONT HUB EX500A3 GPZ500S 1989 EUROPE UK AR
×
prices are in EUR
ref
part #
description
quantity
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
601
601B6202UU
ref: 601
BEARING-BALL
€ 21.00
654
654A223508
ref: 654
OIL SEAL
€ 7.50
41060
410601107
ref: 41060
GEAR-METER SCREW,23T
€ 21.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681238
ref: 41068
AXLE,FR
€ 49.00
41073C
410731411T6
ref: 41073C
AREU
WHEEL-ASSY,FR,WHITE N
€ 618.00
41073D
410731411V5
ref: 41073D
WHEEL-ASSY,FR,SILVER
€ 507.50
41073E
410731411X4
ref: 41073E
WHEEL-ASSY,FR,F.RED
€ 618.00
41078
410781055
ref: 41078
CASE-ASSY-METER GEAR
€ 102.50
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92027
920271118
ref: 92027
COLLAR,L=34
€ 10.00
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92143
920271980
ref: 92143
COLLAR,15.2X22X60
€ 9.50
