IGNITION SYSTEM

EX305B6 GPZ305 1988 EUROPE FG / BELT DRIVE

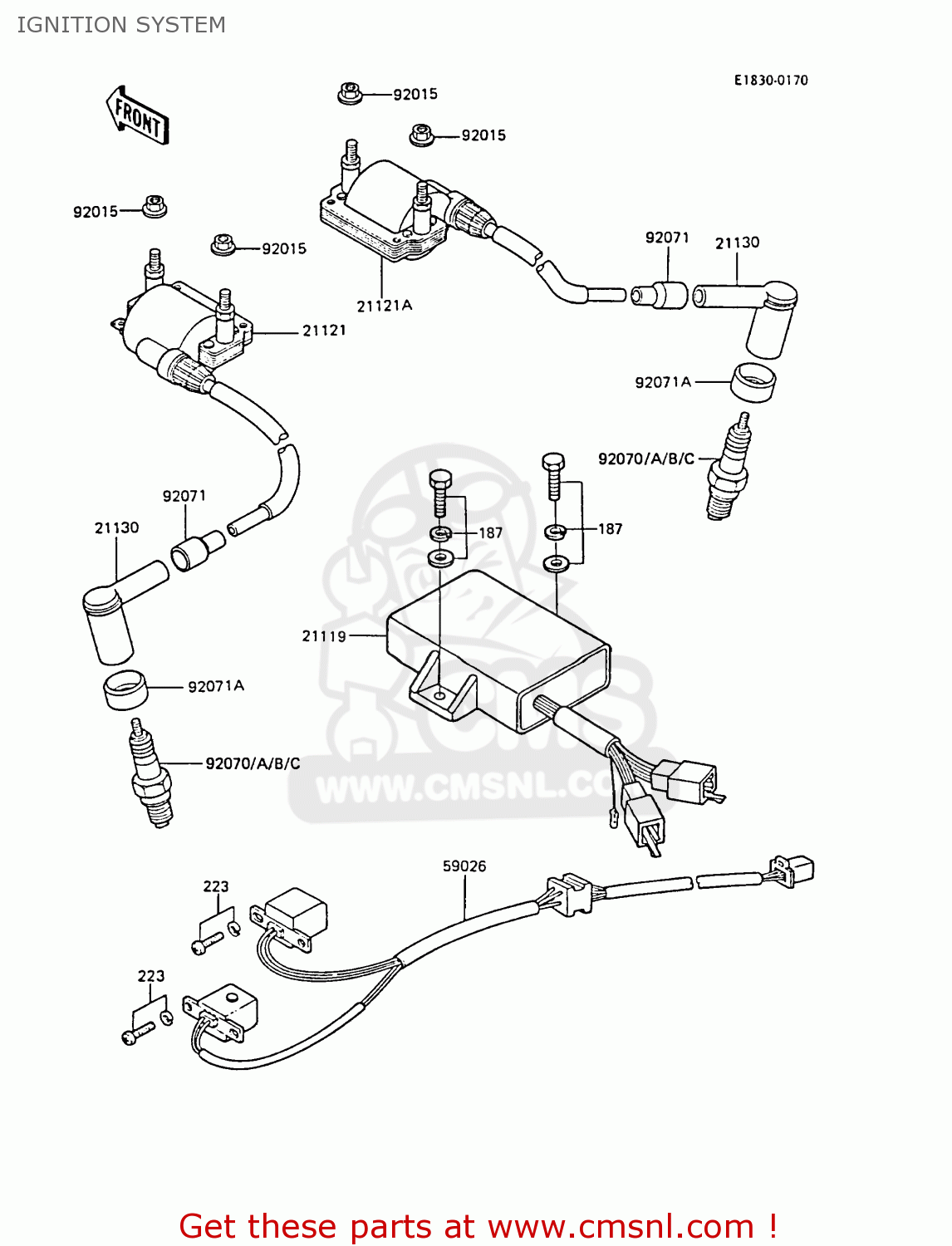

Ignition system diagram EX305B6 GPZ305 1988 EUROPE FG / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

187

187B0618
ref: 187

BOLT-UPSET-WSP

€ 0.50

223

223B0512
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

21119

211191227
ref: 21119

IGNITER

€ 244.50

21121

211211071
ref: 21121

COIL-IGNITION,LH

€ 89.00

21121A

211211072
ref: 21121A

COIL-IGNITION,RH

€ 97.50

21130

211301003
ref: 21130

CAP,SPARK PLUG"LD05F"

€ 20.00

59026

590261021
ref: 59026

COIL-PULSING

€ 75.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92070A

920701068
ref: 92070A

DPR9EA-9 (NGK SPARKPL

€ 4.00

92070B

ref: 92070B

92071

21132005
ref: 92071

GROMMET,SPARK PLUG CP

€ 2.50

92071A

920711015
ref: 92071A

GROMMET,SPARK PLUG CA

€ 2.50
