CLUTCH
EX305B6 GPZ305 1988 EUROPE FG / BELT DRIVE

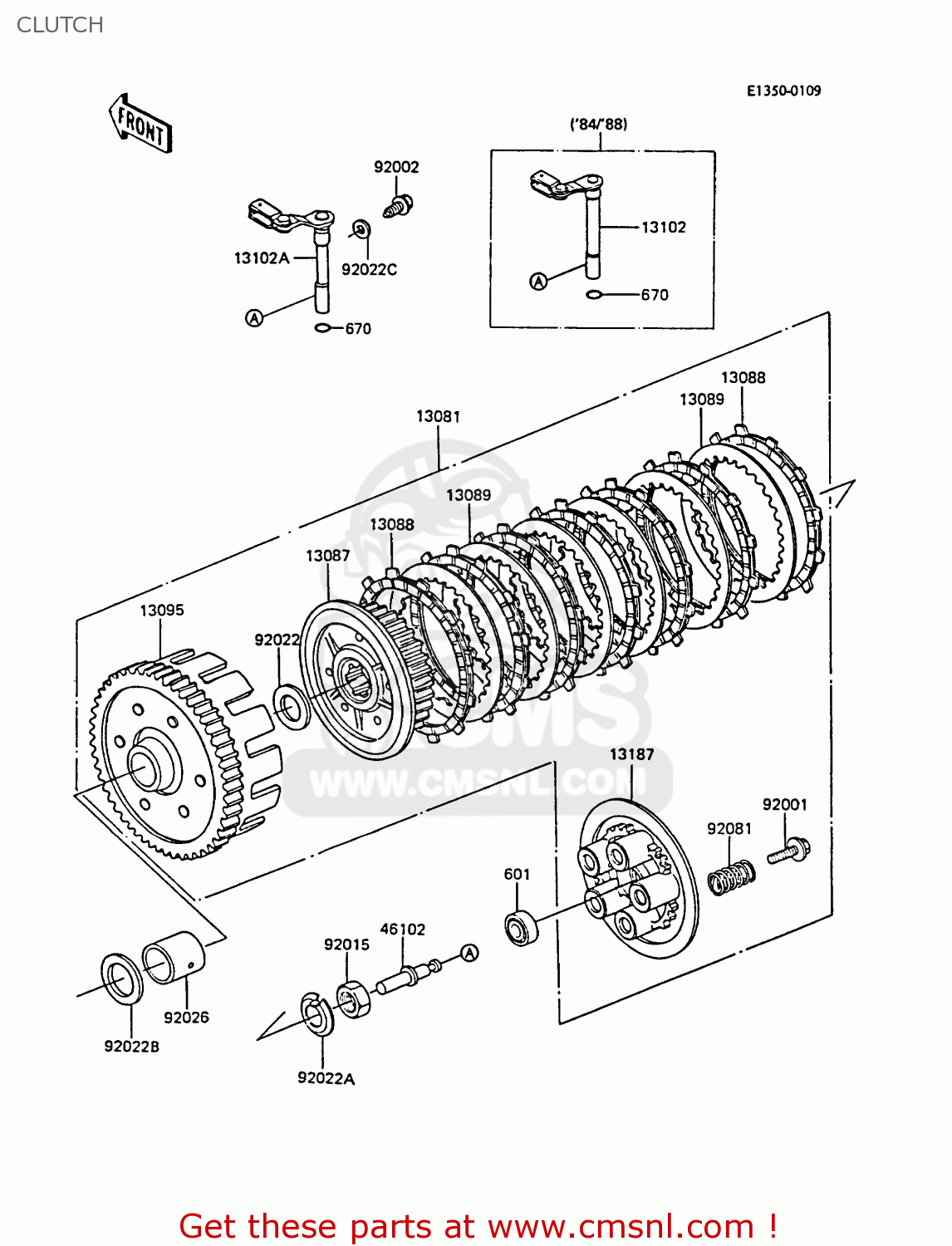

Clutch diagram EX305B6 GPZ305 1988 EUROPE FG / BELT DRIVE
CLUTCH EX305B6 GPZ305 1988 EUROPE FG / BELT DRIVE
×
prices are in EUR
ref
part #
description
quantity
601
601B6001
ref: 601
BALL BEARING,#6001C3
€ 15.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
13081
130811096
ref: 13081
CLUTCH-ASSY
€ 628.50
13087
130871005
ref: 13087
HUB-CLUTCH
€ 90.00
13088
130881009
ref: 13088
PLATE-FRICTION (NAS)
€ 10.50
13089
130891005
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 7.50
13095
130951020
ref: 13095
HOUSING-COMP-CLUTCH
€ 316.00
13102
131021027
ref: 13102
RELEASE-COMP-CLUTCH,B
€ 33.00
13187
131871018
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 47.50
46102
461021030
ref: 46102
ROD,CLUTCH
€ 22.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92015
92016028
ref: 92015
NUT
€ 9.50
92022
920221075
ref: 92022
WASHER,25.5X38X2
€ 9.00
92022A
920221142
ref: 92022A
WASHER,LOCK
€ 2.50
92022B
92022145
ref: 92022B
WASHER-CLUTCH THRUST
€ 4.50
92026
920261052
ref: 92026
BUSHING,CLUTCH
€ 10.50
92081
920811151
ref: 92081
SPRING,CLUTCH
€ 5.00
