GEAR CHANGE DRUM/SHIFT FORK(S)

EX305B6 GPZ305 1988 EUROPE FG / BELT DRIVE

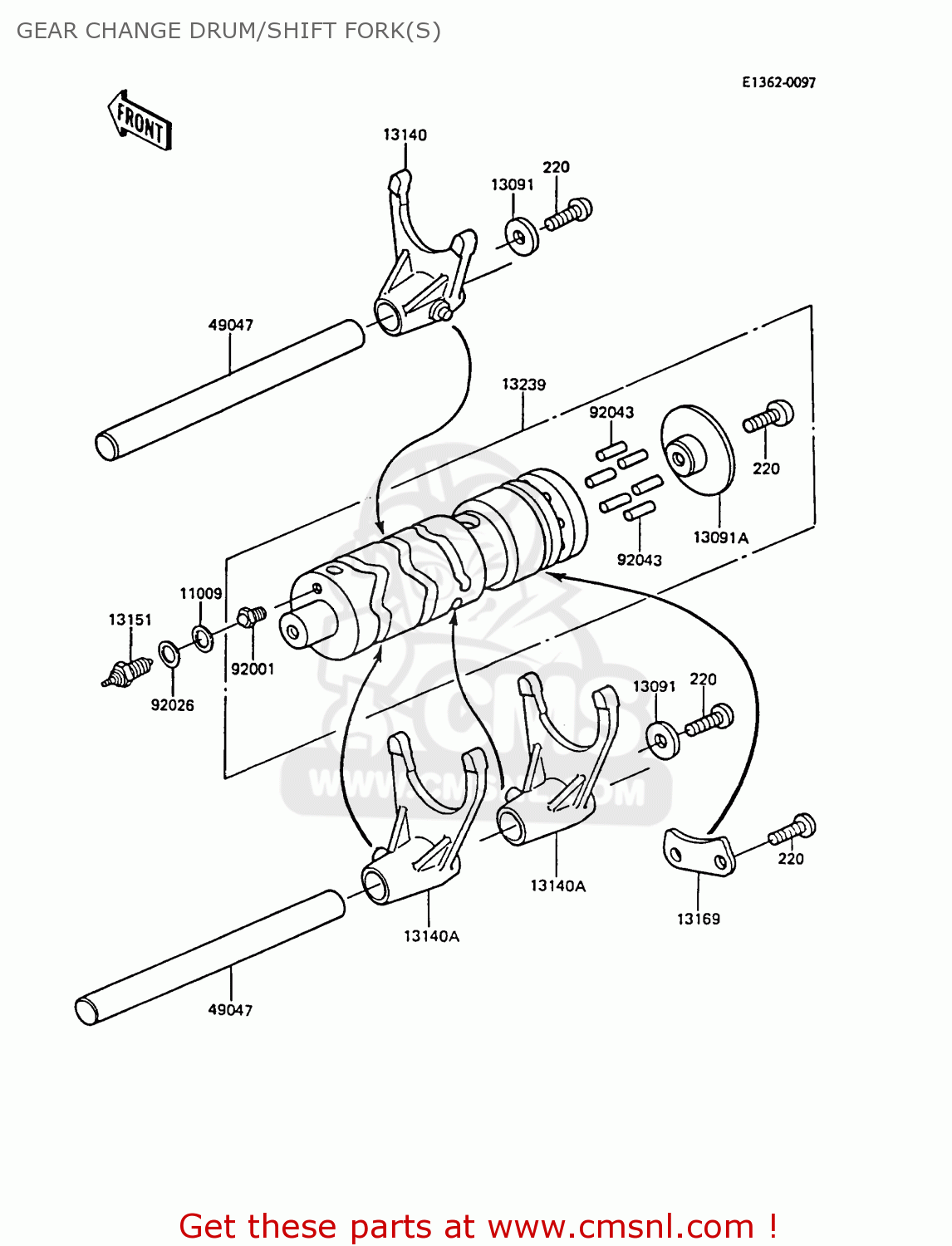

Gear change drum/shift fork(s) diagram EX305B6 GPZ305 1988 EUROPE FG / BELT DRIVE

prices are in EUR

ref

part #

description

quantity

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

11009

92065058
ref: 11009

GASKET, 10,5X16X1 (NAS)

€ 2.50

13091

13091011
ref: 13091

HOLDER,CLUTCH SPRING

€ 2.50

13091A

130911029
ref: 13091A

HOLDER,CHANGE DRUM

€ 8.00

13140

131401114
ref: 13140

FORK-SHIFT,DRIVE

€ 51.00

13140A

131401115
ref: 13140A

FORK-SHIFT,OUTPUT

€ 51.00

13151

131511008
ref: 13151

SWITCH,NEUTRAL

€ 16.00

13169

13169012
ref: 13169

PLATE,CHANGE DRAM

€ 11.50

13239

132391042
ref: 13239

DRUM-ASSY-CHANGE

€ 140.00

49047

490471007
ref: 49047

ROD-SHIFT,12X133

€ 13.50

92001

920011215
ref: 92001

BOLT,NEUTRAL POINT

€ 6.00

92026

920261002
ref: 92026

SPACER, TACHOMETER

€ 2.50

92043

92042014
ref: 92043

PIN-GEAR CHANGE DRUM

€ 0.50

GEAR CHANGE DRUM/SHIFT FORK(S)

all assemblies
