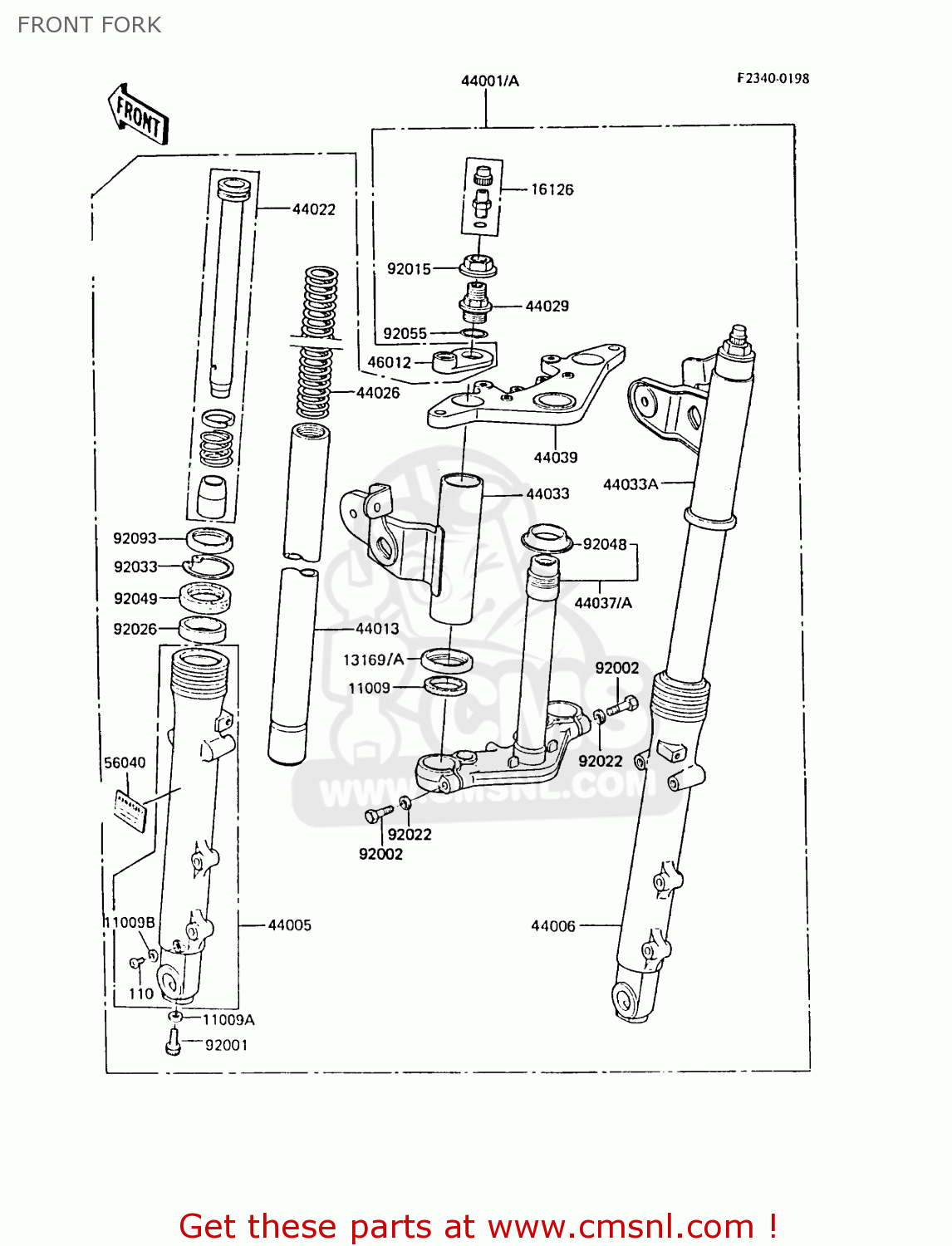

FRONT FORK

ref

part #

description

quantity

11009

44045049
ref: 11009

GASKET,FORK COVER (NAS)

€ 3.50

11009A

44045051
ref: 11009A

GASKET,FORK CYLINDER (NAS)

€ 4.00

11009B

44045052
ref: 11009B

GASKET,DRAIN PLUG (NAS)

€ 6.00

13169

131691619
ref: 13169
FG

PLATE,FORK COVER,LOWE

€ 9.00

13169A

131691842
ref: 13169A
EU

PLATE,FORK COVER,LWR

€ 9.00

16126

161261043
ref: 16126

VALVE,AIR

€ 24.50

44001

440011447
ref: 44001
EU

FORK-FRONT

€ 1,801.00

44001A

440011448
ref: 44001A
FG

FORK-FRONT

€ 1,405.00

44005

440051142
ref: 44005

PIPE-LEFT FORK OUTER

€ 291.00

44006

440061142
ref: 44006

PIPE-RIGHT FORK OUTER

€ 264.50

44013

440131119
ref: 44013

PIPE-FORK INNER

€ 117.50

44022

440221096
ref: 44022

CYLINDER-FORK

€ 69.00

44026

440261200
ref: 44026

SPRING-FRONT FORK

€ 36.00

44029

440291050
ref: 44029

SEAT-FORK SPRING

€ 37.50

44033

440331135
ref: 44033

COVER-FORK,LH

€ 74.50

44033A

440331136
ref: 44033A

COVER-FORK,RH

€ 61.50

44037

440371096
ref: 44037
EU

HOLDER-FORK UNDER

€ 209.00

44037A

440371107
ref: 44037A
FG

HOLDER-FORK UNDER

€ 209.00

44039

440391066
ref: 44039

HOLDER-FORK UPPER

€ 182.50

46012

460121040
ref: 46012

HOLDER-HANDLE

€ 20.50

56040

560401023
ref: 56040

LABEL-WARNING,FRONT F

€ 2.50

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 6.50

92002

920021287
ref: 92002

BOLT,10X35

€ 4.50

92015

920151437
ref: 92015

NUT,FLANGED,18MM

€ 14.50

92022

920221553
ref: 92022

WASHER,SPRING,10MM

€ 1.50

92026

920261099
ref: 92026

SPACER,FORK OUTER

€ 7.00

92033

920331078
ref: 92033

RING-SNAP,FORK OUTER

€ 3.50

92048

92047006
ref: 92048

CONE-STRNG STEM

€ 11.00

92049

920491080
ref: 92049

SEAL-OIL FORK OUTER

€ 14.00

92055

920551101
ref: 92055

0 RING FORK TOP BOLT

€ 3.50

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

92093

920931083
ref: 92093

SEAL,FORK OUTER TUBE

€ 16.00

all assemblies
