RADIATOR
EX250H11 NINJA 250R 2000 CANADA

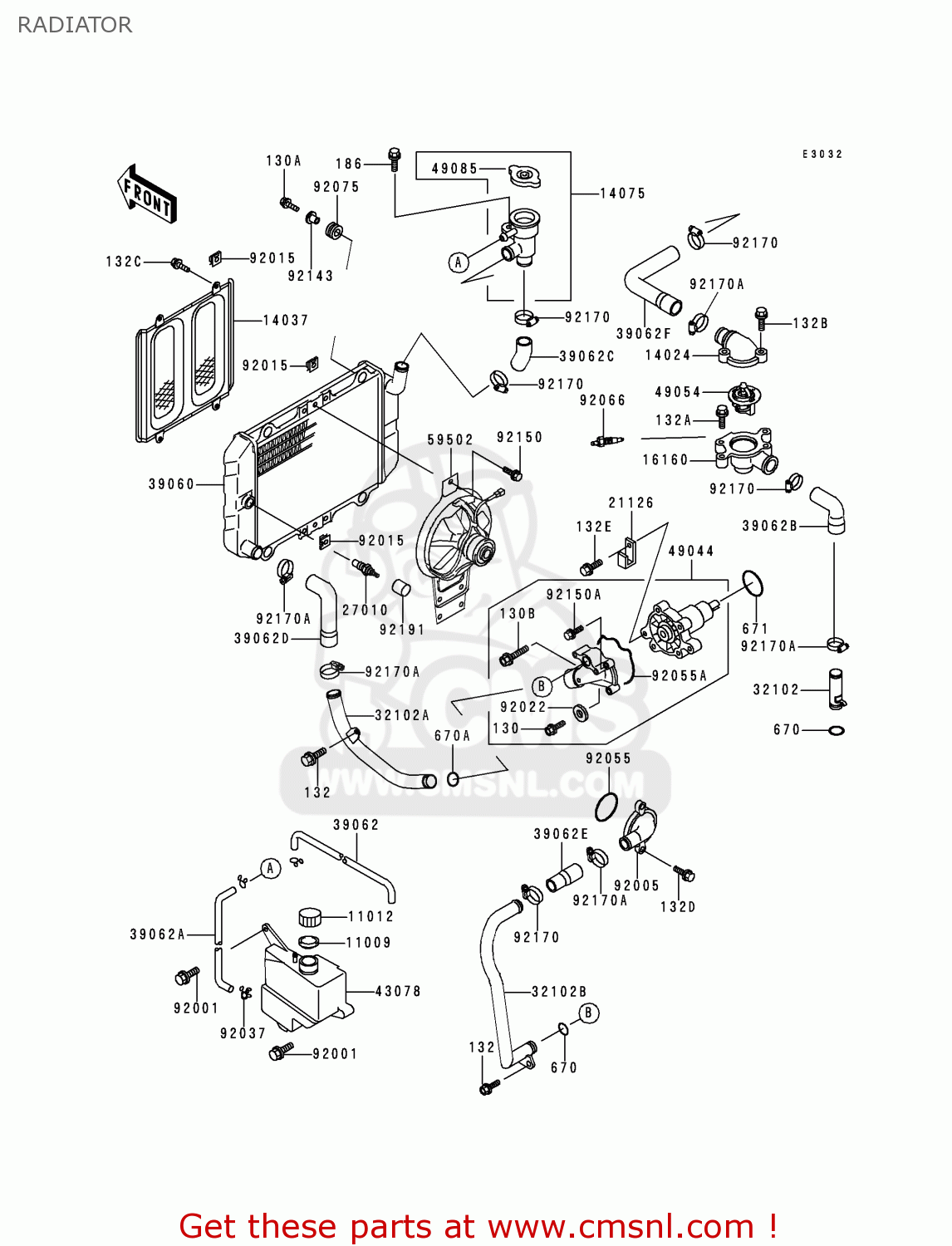

Radiator diagram EX250H11 NINJA 250R 2000 CANADA
RADIATOR EX250H11 NINJA 250R 2000 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140241232
ref: 14024
COVER,THERMOSTAT UPP
€ 43.00
14037
140371078
ref: 14037
SCREEN
€ 43.50
14075
140751061
ref: 14075
CAP-ASSY
€ 128.00
16160
161601110
ref: 16160
BODY,THERMOSTAT
€ 29.50
21126
21126008
ref: 21126
CLAMP,WIRING HARNESS
€ 3.00
27010
270101304
ref: 27010
SWITCH,THERMOSTAT
€ 63.00
32102
321021021
ref: 32102
PIPE,HEAD-THERMOSTAT
€ 17.50
32102A
321021022
ref: 32102A
PIPE,RADIATOR-PUMP
€ 39.00
32102B
321021624
ref: 32102B
PIPE,PUMP-CYLINDER
€ 41.50
39060
390601087
ref: 39060
RADIATOR
€ 639.50
39062
390621007
ref: 39062
HOSE-COOLING,RESERVIR
€ 25.00
39062A
390621028
ref: 39062A
HOSE-COOLING
€ 25.00
39062B
390621170
ref: 39062B
HOSE-COOLING,HEAD-THE
€ 14.00
39062C
390621172
ref: 39062C
HOSE-COOLING,RADIATOR
€ 17.00
39062D
390621173
ref: 39062D
HOSE-COOLING,RADIATOR
€ 11.00
39062E
390621246
ref: 39062E
HOSE-COOLING,PUMP-CYL
€ 7.50
39062F
390621398
ref: 39062F
HOSE-COOLING
€ 28.00
43078
430781070
ref: 43078
RESERVOIR
€ 32.00
49044
490441064
ref: 49044
PUMP-WATER
€ 244.00
49054
490541058
ref: 49054
THERMOSTAT
€ 41.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021066
ref: 59502
FAN-ASSY
€ 425.50
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
€ 3.00
92005
920051145
ref: 92005
FITTING,CYLINDER
€ 22.50
92015
920151487
ref: 92015
NUT
€ 3.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
92055091
ref: 92055
0 RING
€ 4.00
92055A
920551432
ref: 92055A
RING-O
€ 7.50
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
92075
920751665
ref: 92075
DAMPER
€ 5.00
92143
921431063
ref: 92143
COLLAR
€ 6.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92150A
921501562
ref: 92150A
BOLT, FLANGED 6X18
€ 2.50
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
€ 10.50
92170A
921701286
ref: 92170A
CLAMP
€ 13.00
92191
921911080
ref: 92191
TUBE
€ 2.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
130B
130J0635
ref: 130B
BOLT-FLANGED,6X35
€ 3.00
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
132A
132G0612
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
132B
132G0625
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132J0612
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
132D
132J0616
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132J0630
ref: 132E
BOLT-FLANGED-SMALL
€ 2.50
186
186C0616
ref: 186
BOLT-UPSET-WP
€ 2.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
671
671D2535
ref: 671
O RING
€ 4.00
