ELECTRO BRACKET
EX250H11 NINJA 250R 2000 CANADA

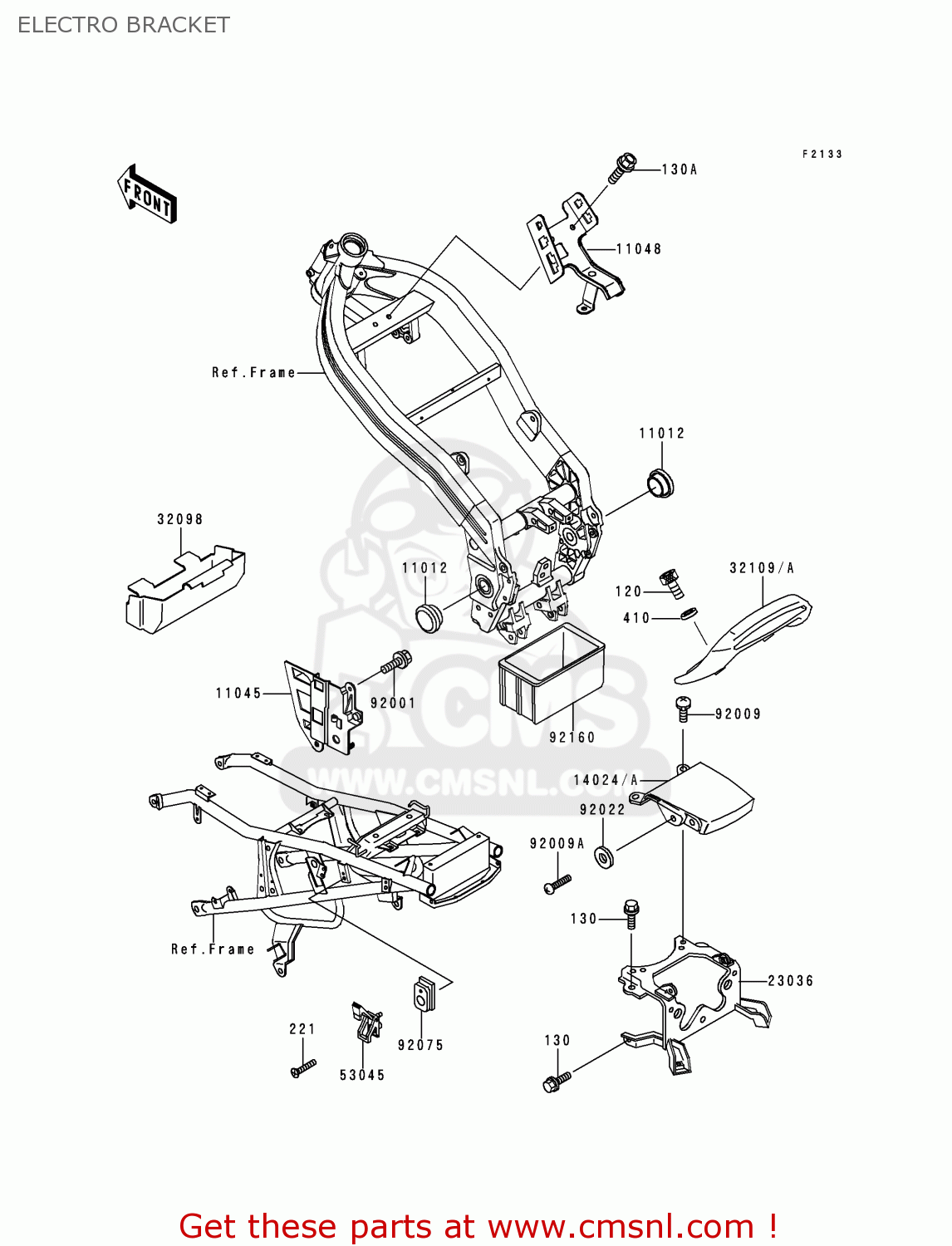

Electro bracket diagram EX250H11 NINJA 250R 2000 CANADA
ELECTRO BRACKET EX250H11 NINJA 250R 2000 CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0820
ref: 120
BOLT-SOCKET
€ 2.50
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
€ 1.50
221
221E0620
ref: 221
SCREW-CSK-CROS,6X20
€ 2.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
11012
110121459
ref: 11012
CAP,SWING ARM BRACKET
€ 7.00
11045
110451578
ref: 11045
BRACKET,ELECTRIC
€ 16.00
11048
110481507
ref: 11048
BRACKET,THERMOSTAT&CO
€ 23.00
14024
140241906F2
ref: 14024
COVER,TAIL,G.SILVER
€ 58.50
14024A
140241906L1
ref: 14024A
COVER,TAIL,C.C.RED
€ 61.50
23036
230361121
ref: 23036
BRACKET-TAIL LAMP
€ 63.00
32098
320981091
ref: 32098
CASE-TOOL
€ 22.00
32109
321091211F2
ref: 32109
GRIP-FRAME,G.SILVER
€ 145.00
32109A
321091211L1
ref: 32109A
GRIP-FRAME,C.C.RED
€ 138.00
53045
530451051
ref: 53045
HOOK-ASSY,ROPE
€ 28.00
92001
920011847
ref: 92001
BOLT,6X14,BLACK
€ 2.50
92009
920091662
ref: 92009
SCREW
€ 2.50
92009A
920091663
ref: 92009A
SCREW
€ 2.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
€ 2.50
92075
920751726
ref: 92075
DAMPER,ROPE HOOK
€ 3.50
92160
921601500
ref: 92160
DAMPER,BATTERY HOLDER
€ 10.00
