CARBURETOR
EX250H11 NINJA 250R 2000 CANADA

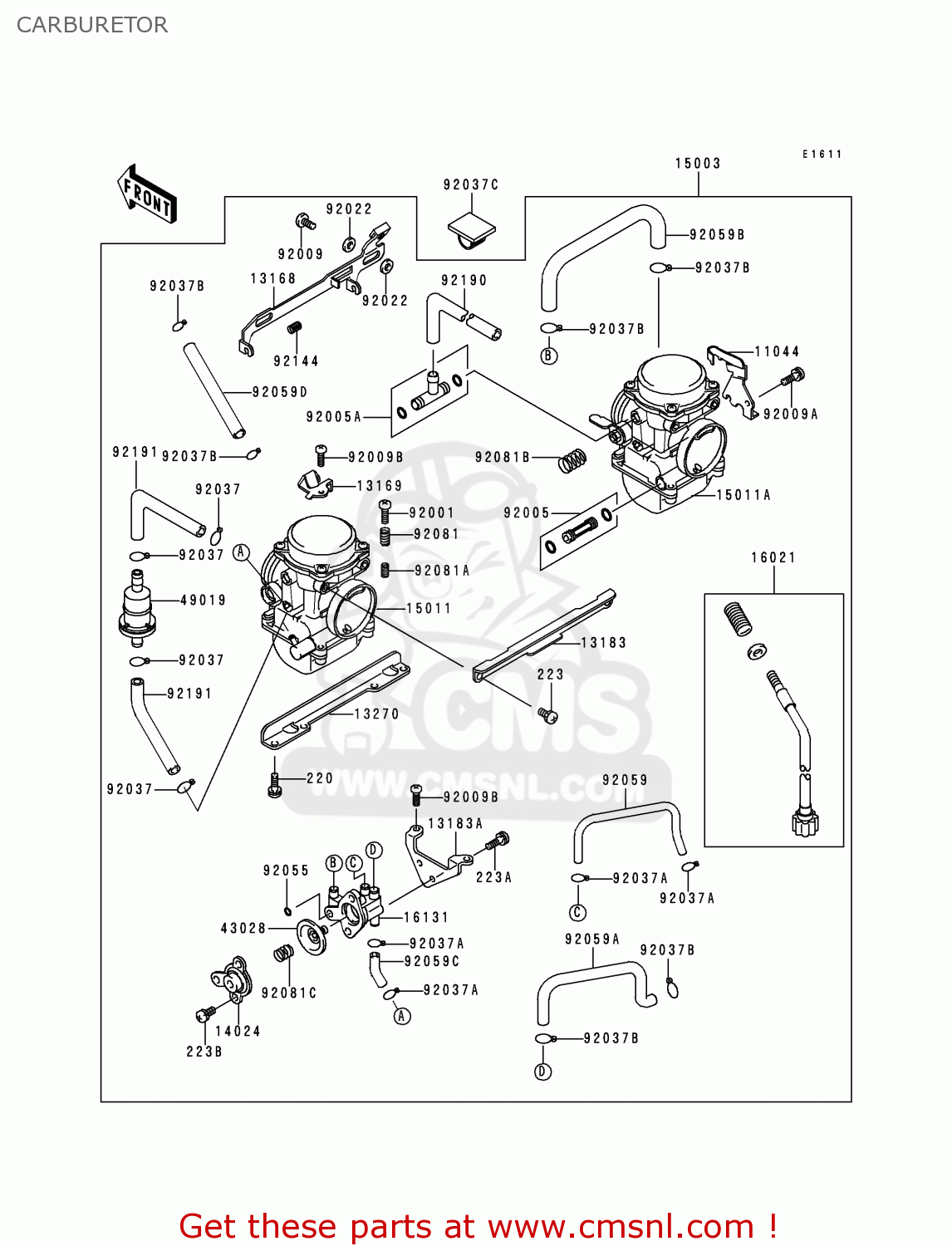

Carburetor diagram EX250H11 NINJA 250R 2000 CANADA
CARBURETOR EX250H11 NINJA 250R 2000 CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
11044
110441061
ref: 11044
BRACKET,THROTTLE CABL
€ 44.00
13168
131681330
ref: 13168
LEVER,STARTER
€ 59.50
13169
131691965
ref: 13169
PLATE,STARTER CABLE
€ 26.50
13183
131831029
ref: 13183
PLATE,CARBURETOR STAY
€ 49.00
13183A
131831031
ref: 13183A
PLATE,AIR CUT VALVE
€ 28.50
13270
132701073
ref: 13270
PLATE,CARBURETOR STAY
€ 21.50
14024
140241327
ref: 14024
COVER,AIR CUT VALVE
€ 43.00
15003
150031541
ref: 15003
CARBURETOR-ASSY
€ 0.00
15011
150111749
ref: 15011
CARBURETOR,LH
€ 0.00
15011A
150111750
ref: 15011A
CARBURETOR,RH
€ 0.00
16021
160211143
ref: 16021
SCREW-THROTTLE STOP
€ 77.00
16131
161311062
ref: 16131
BODY-VALVE,DIAPHRAGM
€ 51.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
49019
490191082
ref: 49019
FILTER-FUEL
€ 0.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051310
ref: 92005
FITTING
€ 25.00
92005A
920051314
ref: 92005A
FITTING
€ 31.50
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091446
ref: 92009B
SCREW,4X18
€ 4.00
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92037C
920371816
ref: 92037C
CLAMP,HARNESS
€ 5.00
92055
920551245
ref: 92055
RING-O
€ 3.50
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
€ 17.50
92059A
920591201
ref: 92059A
TUBE,5X9X160
€ 14.50
92059B
920591377
ref: 92059B
TUBE,5X9X180
€ 16.50
92059C
920591722
ref: 92059C
TUBE
€ 15.50
92059D
920591836
ref: 92059D
TUBE,5X9X220
€ 16.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
€ 6.50
92081C
920811719
ref: 92081C
SPRING,AIR CUT VALVE
€ 8.50
92144
921441048
ref: 92144
SPRING,STARTER LEVER
€ 7.00
92190
921901064
ref: 92190
TUBE,7X11X309
€ 22.00
92191
921911150
ref: 92191
TUBE
€ 0.00
223A
223D0408
ref: 223A
SCREW-PAN-WS-CROS
€ 1.00
223B
223D0410
ref: 223B
SCREW-PAN-WS-CROS
€ 2.50
