Genuine EX Kawasaki Parts delivered quickly!


CARBURETOR PARTS

EX250H11 NINJA 250R 2000 CANADA

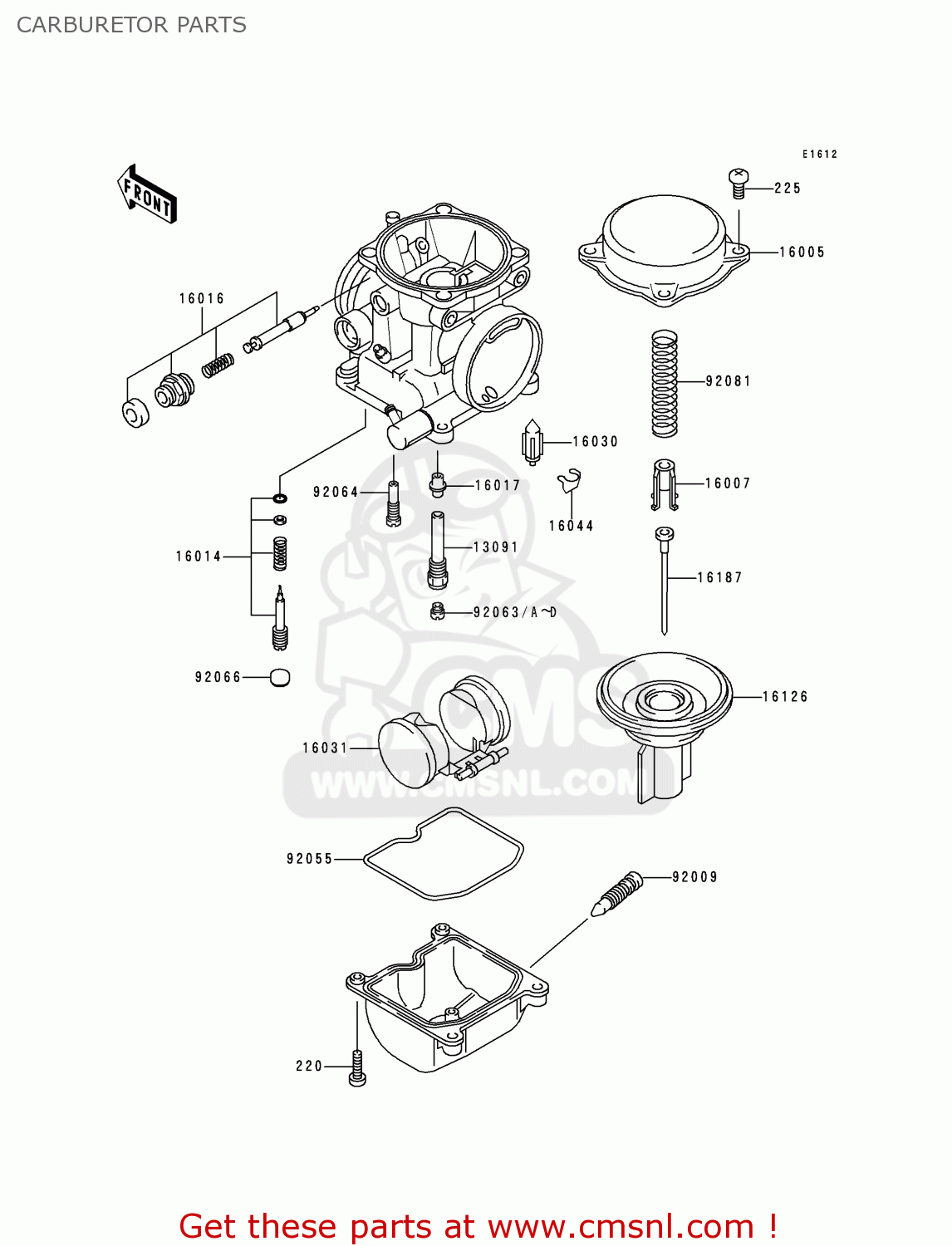

Carburetor parts diagram EX250H11 NINJA 250R 2000 CANADA

CARBURETOR PARTS EX250H11 NINJA 250R 2000 CANADA
CARBURETOR PARTS EX250H11 NINJA 250R 2000 CANADA
CARBURETOR PARTS EX250H11 NINJA 250R 2000 CANADA
prices are in EUR
ref
part #
description
quantity
220
220D0414
ref: 220
SCREW-PAN-CROS
220D0414
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
13091
130911713
ref: 13091
HOLDER,NEEDLE JET
130911713
€ 20.00
16005
160051056
ref: 16005
TOP-CHAMBER,MIXING
160051056
€ 48.50
16007
160071120
ref: 16007
SEAT-SPRING
160071120
€ 16.50
16014
160141081
ref: 16014
SCREW-PILOT AIR
160141081
€ 15.50
16016
160161090
ref: 16016
PLUNGER,STARTER
160161090
€ 46.50
16017
160171417
ref: 16017
JET-NEEDLE,#6
€ 34.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311077
ref: 16031
FLOAT
160311077
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261198
ref: 16126
VALVE,VACUUM
161261198
€ 176.00
16187
161871127
ref: 16187
NEEDLE-JET,N16W
€ 19.00
92009
920091551
ref: 92009
SCREW,DRAIN
920091551
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631008
ref: 92063
JET-MAIN,#100
920631008
€ 9.00
92063A
920631009
ref: 92063A
JET-MAIN,#105
920631009
€ 10.00
92063B
920631114
ref: 92063B
JET-MAIN,#110
920631114
€ 9.50
92063C
920631115
ref: 92063C
JET-MAIN,#102
920631115
€ 10.00
92063D
920631116
ref: 92063D
JET-MAIN,#108
920631116
€ 9.50
92064
920641050
ref: 92064
JET-PILOT,#38
920641050
€ 12.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811925
ref: 92081
SPRING,VACUUM VALVE
920811925
€ 16.00
